Portable High Precision Laser Engraving Machine Metal With Permanent Mark
Introduction:
This PEDB-400A portable high-precision optical fiber metal marking machine is a new type of laser marking equipment developed by Wuhan Perfect Laser Co., Ltd. based on the market development needs, using the most advanced international technology and the highest quality laser source. , with good beam quality, low power consumption, long working life, fast speed, etc.
Application
Used in electrical and electronic appliances, instrumentation, hardware, tool accessories, precision equipment, daily necessities, jewelry, auto parts, food and beverage packaging, and other fields of graphics and text marking.
Product Features
1.Small in size and easy to handle; simple in structure, easy to operate, and supports large-volume production line operations.
2.The electro-optical conversion efficiency is high, air cooling is used for cooling, low power consumption and low cost; low power consumption and maintenance-free.
3.Using advanced fiber laser, the output beam quality is good, the reliability is high, the marking effect is clear, durable, no discoloration, no falling off, high temperature resistance. The mark is finer, the marking speed is faster, and the output power is stable.
4.The printed mark is beautiful, permanent, with a low failure rate and low maintenance.
5.Wide range of applications and powerful features.Can meet a variety of high precision, high efficiency laser marking needs.
Technical Data
| Model No | PEDB-400A | PEDB-400B | PEDB-400C | PEDB-400D |
| Type | Portable | Desktop | Colorful | Standby |
| Computer | Not includes PC | Includes PC |
| Laser Source |
| IPG Series | Pulsed, High Energy Ytterbium Fiber Lasers |
| Mode of operation | Pulsed |
| Polarization | random |
| Nominal average output power | 10W - 30W For PEDB-400A /400B /400C 10W - 50W For PEDB-400D |
| Central emission wavelength | 1060-1070 nm ,Q-switched operation Output power adjustment range 10%-100% |
| Emission Bandwidth (FWHM) | <10 nm |
| Long-term average power instability | <5% |
| Pulse width, (FWHM) | 100 ns |
| Laser switching ON time | 180 μsec |
| Laser switching OFF time | 180 μsec |
| Pulse Repetition Rate* kHz | 20-80 kHz |
| Energy per pulse (PRR = 20 kHz) | 0.95 mJ |
| Typical beam quality, M2 | <1.8 |
| Output fiber delivery length | 3m |
| Operating voltage | 220V |
| Max. Power consumption | 600W |
| Net Dimensions | 70*20*50cm | 80*38*72cm | 70*20*50cm | 143*62*101cm |
| Net Weight | 44 kgs | 53 kgs | 44 kgs | 130 kgs |
| Gross Weight | 60 kgs | 70 kgs | 60 kgs | 200 kgs |
| Laser system |
| Scanning Speed | 0-10000mm/s |
| Marking Speed | 0-7000mm/s |
| Marking size | 110mm×110mm (F-theta 160) |
| Spot size | ≤ 40 micron (F-theta 160) |
| Cooling unit | Air cooled |
| Pilot laser | 650nm diode laser, visible red light for marking guide |
| Continuous working time | ≥16h |
| Humidity | 45～85% (no condensation) |
| Operating temperature | 0~40℃ |
| Control units | Laser Mark (English Version) |

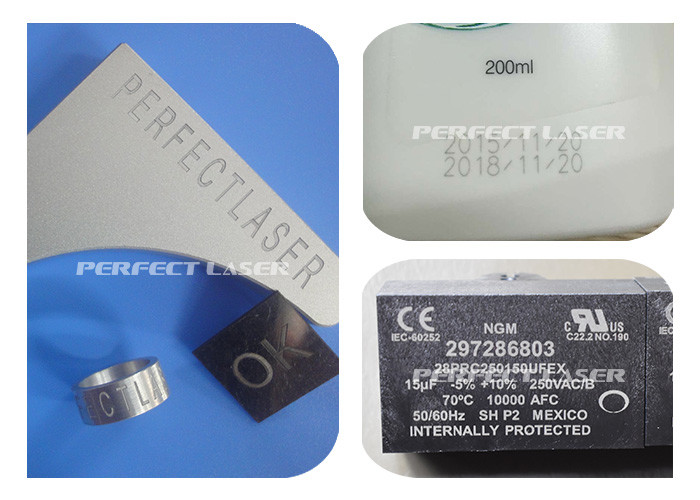

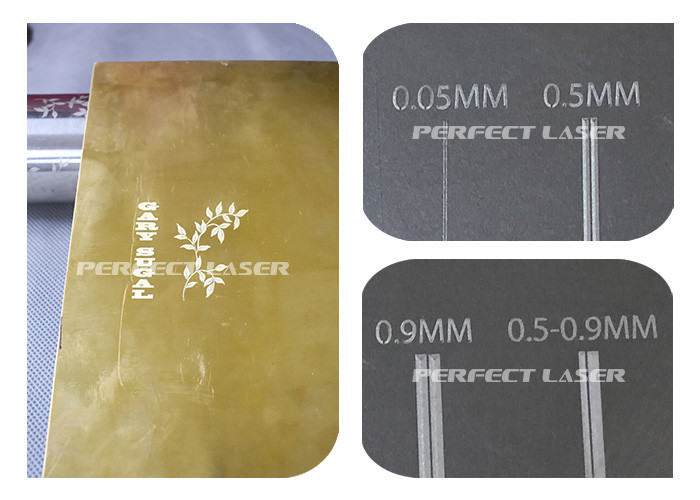

Sample Show
Packaging & Delivery
1. Prompt deliver at the very day.
2. Sophisticated and professional logistic agent.
3. Well-trained and disciplined packing team.
4. After-sale service:. Any questions or problems after receiving the product, please feel free to contact us. Problems would be solved for you immediately.
Competitive Advantages
1. We offer high quality products at competitive price in quick delivery.
2. 100% custom pass guaranteed.
3. Good after-sale service.
4. Flexible and Untraceable payment terms.
5. Our products have been exported to Germany, Norway, Poland, Finland, Spain, UK, France, Russia, USA, Brazil, Mexico, Australia, Japan, Korea, Thailand, Indonesia, Uruguay and many other countries.
