Smart Rotary 50HZ Dot Pin Engraving Machine For Metal Plastic Surface Marking
Product Descripition
The liquid crystal operation screen rotary pneumatic marking machine designed and manufactured by Perfect Laser is mature and stable. Every day, countless Perfect laser rotary pneumatic marking machines are operating safely and efficiently, providing excellent quality and excellent service to users all over the world. This machine has high-efficiency automation and operation reliability, and is suitable for various working environments, reset protection, motor disconnection protection and other functions to ensure long-term work and durability; it is a general-purpose model with high reliability
Application
Used in steel metallurgy, non-ferrous metals, automobiles and parts, aerospace, military electronics, precision instrumentation, machinery manufacturing, molds, hardware tools, integrated circuits, semiconductor manufacturing, solar energy, education, communication and measurement, packaging, shoe leather , plastic rubber, jewelry, craft gifts, medical equipment, etc.
.
Product Features
① Marking specification, beautiful appearance;
② Convenient to change the value, flexible to use, and strong in applicability;
③ High efficiency, fast speed and high power density;
④ Printable Chinese and English characters, Arabic numerals, arbitrary graphics, automatic serial number printing, international standard VIN number printing, time and date printing, barcode printing, circumferential printing, electromagnet absorbing printing, dot matrix printing, 2D Code printing, timing printing, counting printing;
⑤ The entire marking process is completely controlled by the computer, it is a brand new permanent marking technology.
Specifications
| Item | LCD Control + Rotary Dot Peen Marking Machine |
| Model | PEQD-025E |
| Marking Area: | 150×100mm | 200×100mm | 300×200mm | 400×300mm | Customized |
| Marking Depth: | 0.01~2mm |
| Marking Speed: | ≤50mm/s (for Characters Height of 3mm / 3-4 Numbers /Second) |
| Z Axis Lifting Range: | 0-300 mm or Customized |
| Rotary Clamper Range | 0-150mm | 0-200mm |
| Air Pressure | 0.2-0.6Mpa |
| Marking Accuracy: | 0.01 mm |
| Pin Hardness: | HRA 92 |
| Power Supply: | 220V±10％, 50HZ |
| Air Pressure: | 0.2-0.6 Mpa |
| Machine Power: | ≤400 W |
| Working Environment: | -5～40 ℃ |
| Whole Machine Weight: | 66 Kgs |
| Measurement: | 0.3 m2 |

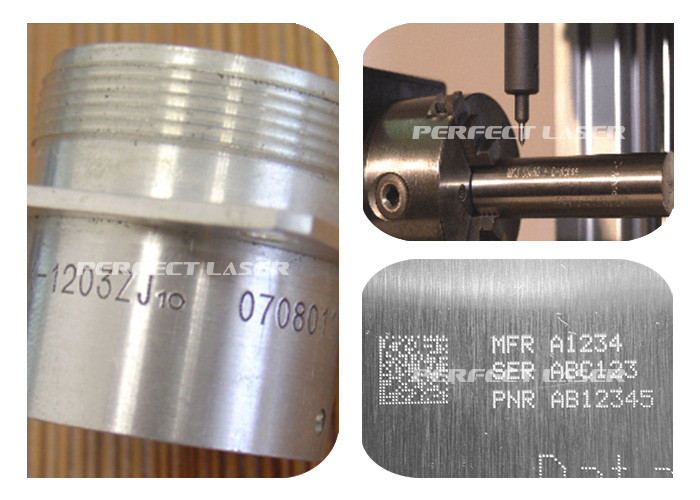

Sample Show
Packaging & Delivery
1. Prompt deliver at the very day.
2. Sophisticated and professional logistic agent.
3. Well-trained and disciplined packing team.
4. After-sale service:. Any questions or problems after receiving the product, please feel free to contact us. Problems would be solved for you immediately.
Competitive Advantages
1. We offer high quality products at competitive price in quick delivery.
2. 100% custom pass guaranteed.
3. Good after-sale service.
4. Flexible and Untraceable payment terms.
5. Our products have been exported to Germany, Norway, Poland, Finland, Spain, UK, France, Russia, USA, Brazil, Mexico, Australia, Japan, Korea, Thailand, Indonesia, Uruguay and many other countries.
