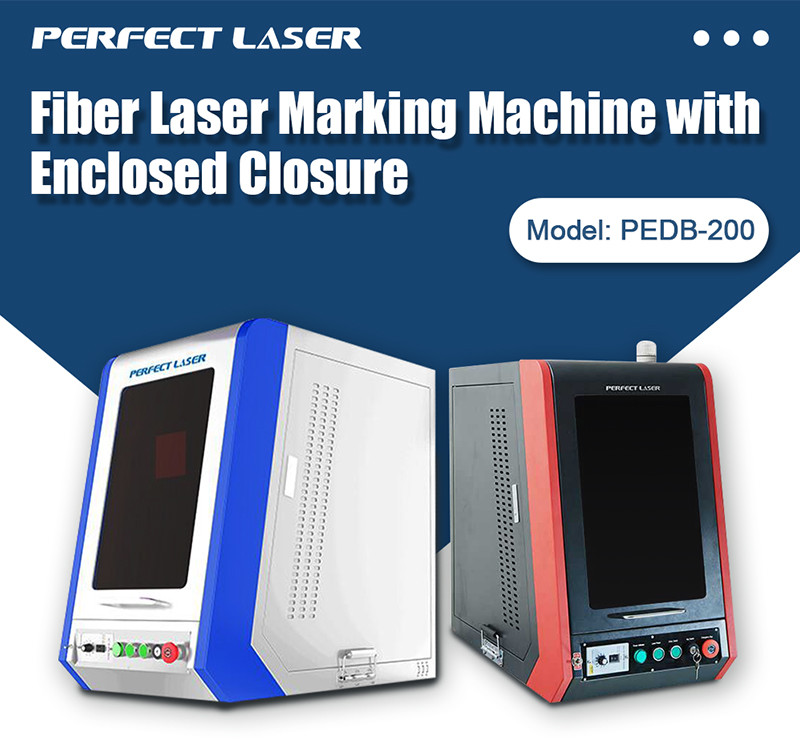

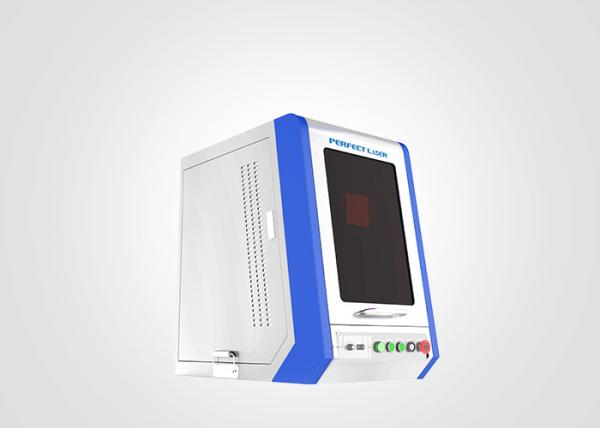

PEDB-200 Fiber Laser Engraving Marking Machine , 10W 20W Low operation cost
Application
This enclosed type 10w 20w fiber laser marking machine is also called as: 10w fiber laser marking machine, 20w fiber laser marking machine, price of fiber laser marking machine, 10w fiber laser marking machine, 20w fiber laser marking machine, or 10w fiber laser engraving machine etc
It has the characteristics of good output beam quality and high reliability. It can be used for the engraving of metal materials and some non-metal materials, marking the smoothness within the region, such as electronic products, metal utensils, watches, jewelry, IC, plastic buttons and other graphic surfaces requiring delicate and strict requirements, especially for the impact on the bitmap marking.
Technical Data
| Item | PEDB-200 (10w) | PEDB-200 (20w) |
| Output power | 10 watt | 20 watt |
| Central wavelength | 1064±4nm | 1064±4nm |
| Polarization | Random | Random |
| Single pulse power | 0.5～0.6mJ | 0.8～1.0mJ |
| Beam quality | <1.5m2 | <1.7m2 |
| Facular diameter | 6～8mm | 7～9mm |
| Power stability | <5% | <5% |
| Frequency adjusting range adjustable range | 20～80kHz | 20～80kHz |
| Pulse breadth | 80～140ns | 80～140ns |
| Pulse adjusting range | 5～100% | 5～100% |
| operating voltage | 100～240VAC | 100～240VAC |
| Fiber Length | 1.5m | 1.5m |
| Cooling mode | forced air | forced air |
| Operation temperature | 0～35℃ | 0～35℃ |
| Operation humidity | 10～95 | 10～95 |
| Storage temperature | -10～60℃ | -10～60℃ |
| Marking Format | Graphics, Text, Bar Codes, QR Code, Serial Number,Serial number,etc. |
Product Features
1. The Re-position accuracy is 0.002mm, with high accuracy
2. The machine is very compact, small, and the desktop is very convenient for delivery

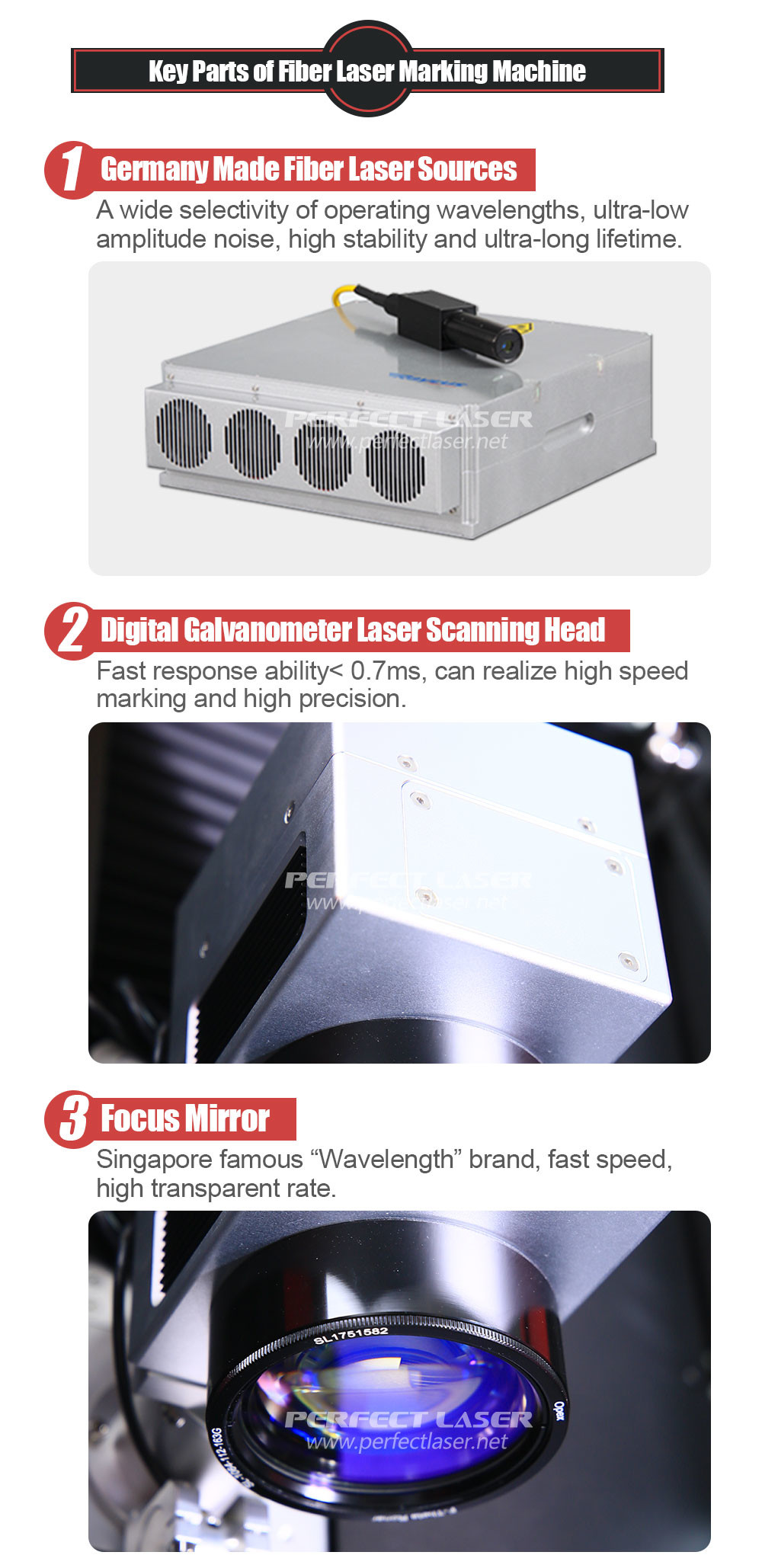

3. The imported laser scanning system has been adopted, which greatly improves the marking speed of this closed optical fiber laser marking machine, reaching 7000mm/s
4. Adopt air cooling, which greatly outperforms other cooling methods
5. Low operating costs, the machine is free of maintenance for more than 10 years
6. This 10w 20w closed type optical fiber laser marking machine can achieve high-speed electro-optical conversion with conversion efficiency up to 70%
7. MTBF (Mean Time Between Failures) > 100,000 hours with high quality and reliability
8. Equipped with English user manual, VCD training video, the software is sent to customers together with 10w 20w fiber laser marking machine. The operation is simple and convenient, and the 24-hour online service is provided.
Product Description
This 10w 20w optical fiber laser marking machine is environmentally friendly, healthy, safe and has a sealing structure. In the whole working process of the machine, the flog will be stored in the box and will not be discharged to the outside, which is highly demanded for the working environment and favored by European market in pursuit of environmental protection and health.

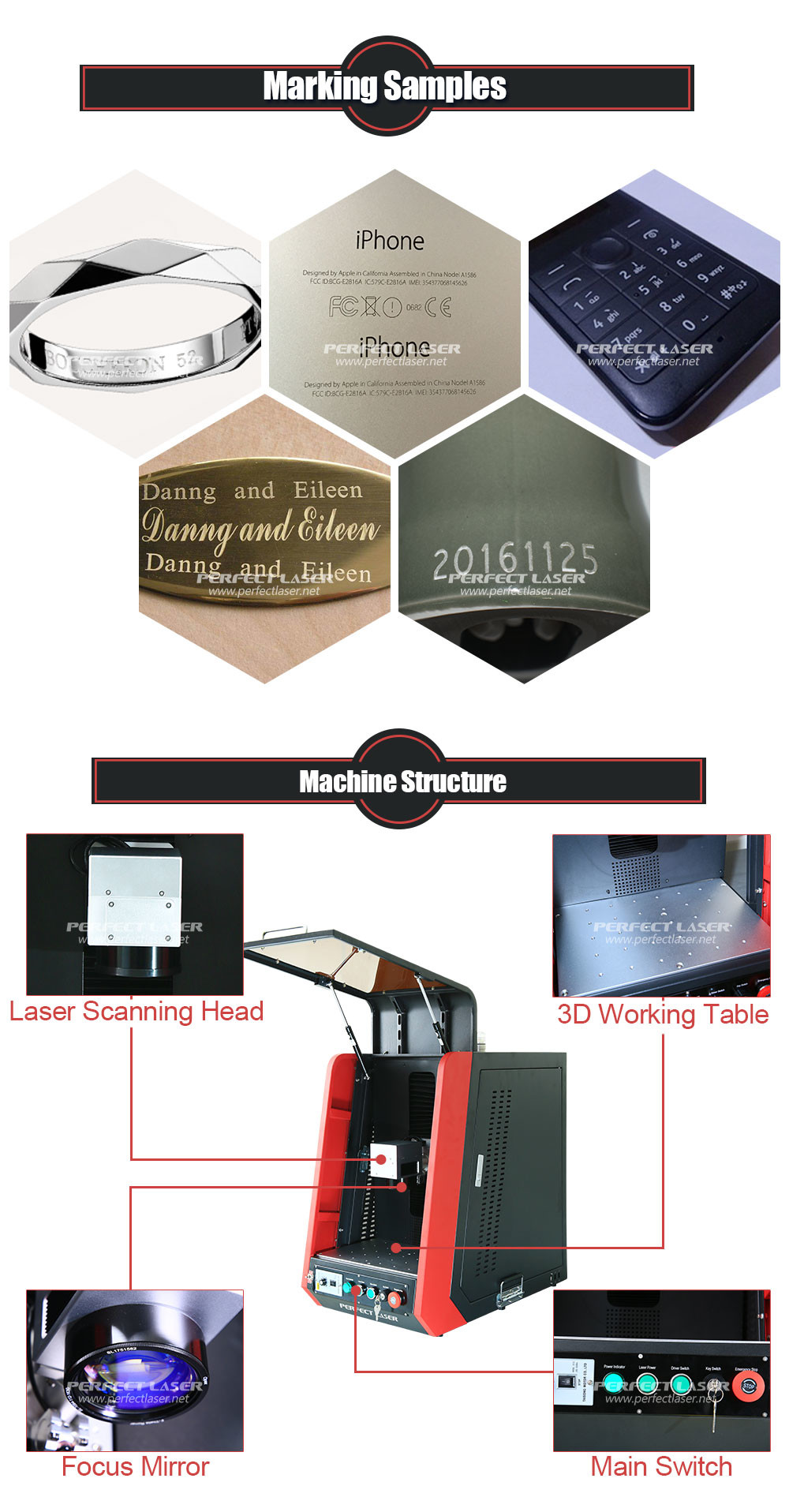

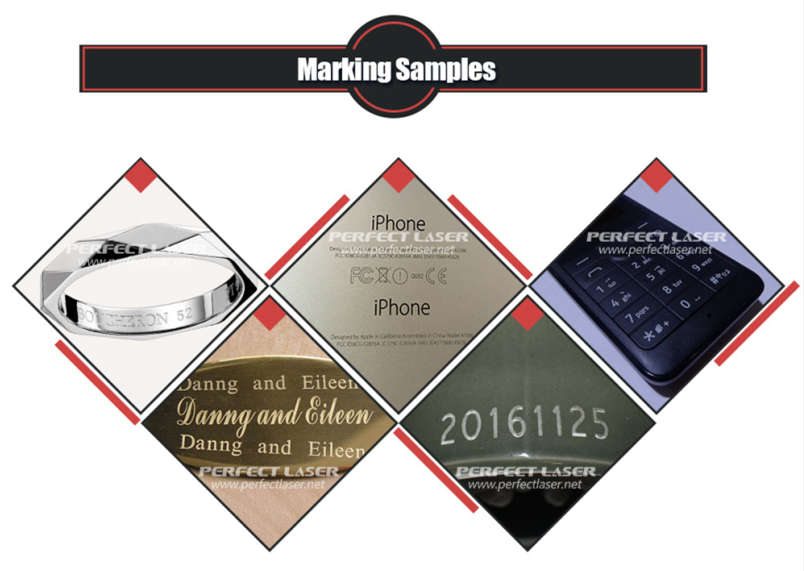

Samples
Packaging & Delivery
1. Prompt deliver at the very day.
2. Sophisticated and professional logistic agent.
3. Well-trained and disciplined packing team.
4. After-sale service:. Any questions or problems after receiving the product, please feel free to contact us. Problems would be solved for you immediately.
Competitive Advantages
1. We offer high quality products at competitive price in quick delivery.
2. 100% custom pass guaranteed.
3. Good after-sale service.
4. Flexible and Untraceable payment terms.
5. Our products have been exported to Germany, Norway, Poland, Finland, Spain, UK, France, Russia, USA, Brazil, Mexico, Australia, Japan, Korea, Thailand, Indonesia, Uruguay and many other countries.
