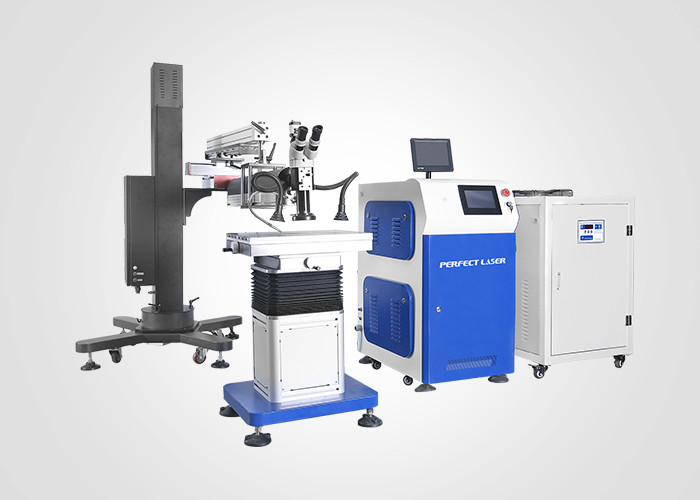

Industry Automatic Mould Laser Welding Machine Hardware For Stainless Steel Kitchenware Repair
★Machinery Description:
Laser deposition welding system (Laser Mould Welding Machine) , designed specifically for Mould industry, is used in precision mould repair, such as digital products , mobile phones, toys, automobiles, motorcycles and other mould marking industries. Through the mold repair, the original mould can be made full use of and the production cost can be greatly saved and the working efficiency is improved. This technique can be applied to modify the mould design or size, shorten product development cycle.
★Machine Features:
The working principle of laser deposition welding system , based on laser high heat energy and focus point of welding technology , effectively handle all small parts of the welding and repair work. It makes up for the traditional argon arc welding technology in the fine repair welding surface and avoid the thermal strain and post-processing these two thresholds, and greatly save the mould production cycle.
★Application Range:
Precision laser mould welding repair machine can weld a wide range materials including: high alloy steel, hot forging high alloy steel, nickel steel, high-grade steel, copper alloy, beryllium copper, high strength and toughness alumium alloy and other metal materials.
★Major Advantages:
Specifically designed for mould industry, introduct German technology, adopt unique stucture design, suitable for all kind of large, medium and small mould repair.
1.Adoptc UK ceramic light-gathering cavity, anti-corrosion, heat-resistance, chamber(8-10 years of life), more than 8 million times life of Xenon lamp;
2. Using the World’s most advanced automatic shading system, It eliminates the stimulation to the eyes in work;
3.Laser head can rotate 360 degrees, overall light path can rotate 360 degrees, electric lift up and down, driving front and back, especially suitable for all kinds of large, medium and small mould repair;
4.Parameter adjustment adopts intelligent remote control, simple and quick operation;
5.Three-dimensional moving workbench can be electric hoist;
6.Light spot size electric regulation;
★Characteristic description
1.Laser cavity, the XY workbench is controlled by hand, the Z axis adopts cavity and workbench double electric hoist;
2.Cavity devices can spin freely;The adjusting knobs can pull the laser head easily
3.Cavity can turn right or left;
4.Laser head can rotate 360 degrees, more convenient for different objects position welding ;
5.The workbench adopts electric hoist and fixes focus more quickly;
★Device Parameters:
| Type | PE-W200M | PE-W300M | PE-W400M |
| Three axis table | X=250mm,Y=180mm |
| Table capacity | ≤200KG | ≤200KG | ≤200KG |
| Machine battery | 220V±10%/50/60z | 380V±10%/50/60Hz | 380V±10%/50/60Hz |
| Laser type | Nd:YAG pulse xenon lamp | Nd:YAG pulse xenon lamp | Nd:YAG pulse xenon lamp |
| Spot adjusting range | 0.1～3mm | 0.1～3mm | 0.1～3mm |
| Peak wavelength | 1064nm | 1064nm | 1064nm |
| Pulse width | ≤20ms | ≤20ms | ≤20ms |
| Rated output power | 180W | 270W | 360W |
| Maximum laser power | 200W | 300W | 400W |
| Pulse frequency | ≤50Hz | ≤50Hz | ≤50Hz |
| Laser output focal length | 100mm | 100mm | 100mm |
| Laser cooling | Water cooling | Water cooling | Water cooling |
| Monitor | Microscope( rotate 360º) | Microscope( rotate 360º) | Microscope( rotate 360º) |
| Protective gas | 1(argon) | 1 (argon) | 1 (argon) |
| Cold water capacity | 2700W | 3500W | 5000W |
| Wire diamter | 0.1mm～0.6mm | 0.1mm～0.8mm | 0.1mm～1.0mm |
| Dimension
| Main engine
1250*580*1200mm
Chiller
700*500*900mm | Main engine
1250*580*1200mm
Chiller
700*500*900mm | Main engine
1250*580*1200mm
Chiller
700*500*900mm
Power
900*600*700MM |

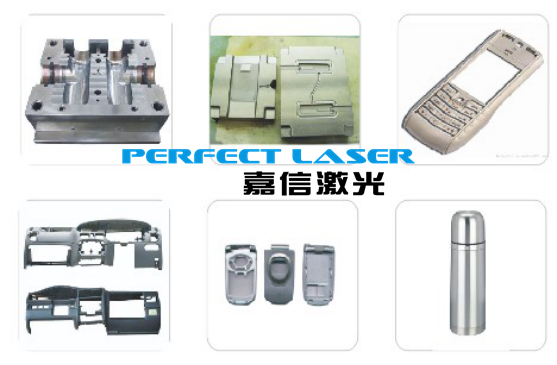

★Sample Pictures:
★Packaging & Delivery
1. Prompt deliver at the very day.
2. Well-trained and disciplined packing team.
3. After-sale service:. Any questions or problems after receiving the product, please feel free to contact us. Problems would be solved for you immediately.
4. Sophisticated and professional logistic agent.
★Competitive Advantages
1. 100% custom pass guaranteed.
2. Our products have been exported to Germany, Norway, Poland, Finland, Spain, UK, France, Russia, USA, Brazil, Mexico, Australia, Japan, Korea, Thailand, Indonesia, Uruguay and many other countries.
3. Flexible and Untraceable payment terms.
4. Good after-sale service.
5. We offer high quality products at competitive price in quick delivery.
