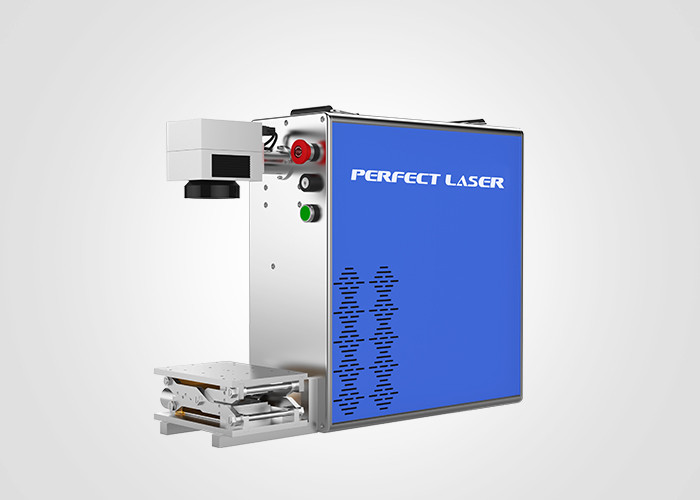

High Quality Portable Fiber Laser Marking Machine
(Model:PEDB-400A)
Description of tabletop laser engraving machine
Portable Laser marking machine adopts international most advanced technology and the laser source of Portable Laser marking machine is fiber with Germany IPG technology, Portable Laser marking machine's lifetime can reach 100,000 hours, 8-10 years without any consumables and maintenance.
Portable Fiber Laser Marking Machine is the best choice for the customers who have special requirements to the smallest & finest laser beam and character.
Application of tabletop laser engraving machine
| Electronic Components | Resistance, capacitance, chips, printed circuit boards, computer keyboard. |
| Apparatus And Meter | Panel signs, precision equipment, etc., |
| Instrument: | Panel signs nameplates, precision equipment ,etc., |
| Hardware Tools | Knives, tools, measuring tool, cutting tool, etc., |
| Automobile Parts | Pistons, piston rings, gears, shafts, bearings, clutch, lights, etc., |
| Mechanical Parts | Bearings, gears, standard parts, motors, etc., |
| Daily Necessities | Handicrafts, zipper, key holder, sanitary ware, etc., |
| Jewelry Rings | Jewelry, gold, silver,etc. |
| Food, drinking packing | Plastic packings,etc. |
Technical Data of tabletop laser engraving machine
| Model No | PEDB-400A | PEDB-400B | PEDB-400C | PEDB-400D |
| Type | Portable | Desktop | Colorful | Standby |
| Computer | Not includes PC | Includes PC |
| Laser Source |
| IPG Series | Pulsed, High Energy Ytterbium Fiber Lasers |
| Mode of operation | Pulsed |
| Polarization | random |
| Nominal average output power | 10W - 30W For PEDB-400A /400B /400C 10W - 50W For PEDB-400D |
| Central emission wavelength | 1060-1070 nm ,Q-switched operation Output power adjustment range 10%-100% |
| Emission Bandwidth (FWHM) | <10 nm |
| Long-term average power instability | <5% |
| Pulse width, (FWHM) | 100 ns |
| Laser switching ON time | 180 μsec |
| Laser switching OFF time | 180 μsec |
| Pulse Repetition Rate* kHz | 20-80 kHz |
| Energy per pulse (PRR = 20 kHz) | 0.95 mJ |
| Typical beam quality, M2 | <1.8 |
| Output fiber delivery length | 3m |
| Operating voltage | 220V |
| Max. Power consumption | 600W |
| Net Dimensions | 70*20*50cm | 58*22*50cm 80*38*72cm | 70*20*50cm | 143*62*101cm |
| Net Weight | 44 kgs | 53 kgs | 44 kgs | 130 kgs |
| Gross Weight | 60 kgs | 70 kgs | 60 kgs | 200 kgs |
| Laser system |
| Scanning Speed | 0-7000mm/s |
| Marking Speed | 0-5000mm/s |
| Marking size | 110mm×110mm (F-theta 160) |
| Spot size | ≤ 40 micron (F-theta 160) |
| Cooling unit | Air cooled |
| Pilot laser | 650nm diode laser, visible red light for marking guide |
| Continuous working time | ≥16h |
| Humidity | 45～85% (no condensation) |
| Operating temperature | 0~40℃ |
| Control units | Laser Mark (English Version) |
Product Features of tabletop laser engraving machine
1. Best Marking Effect:
The laser beam of the mini laser engraving machine is fine and thin.
Perfect Laser's portable fiber laser marker can provide the best marking effect among all the other brands' portable fiber laser marking machine.
Especially good at the smallest character marking, such as mark on IC chip.
2. Deep Marking:
Perfect Laser’s portable fiber laser marking machine can make deep marking up to 2.0mm on stainless steel and aluminum. While YAG and Diode marking only could mark 0.2mm-0.3mm.
3. Higher Accuracy:
Perfect Laser's portable fiber laser marking machine can reach unto 0.001mm precision, while diode only 0.01mm.
4. 10 Years Long lifetime: We used the fiber laser module made by Germany IPG technology, the lifetime of the portable fiber laser marking machine is 100,000 hours, so the machine can be used for 8-10 years.
5. No consumables: CNC laser marking machine can be used for 8-10 years without any consumables.
6. No need to adjust the laser path.
7. Free of Maintenance for the CNC laser marking machine.
8. Use Integrated Air Cooling.
9. Low Power Consumption: low cost, only 0.5kw/hour.
10. Small and compact: the volume of Perfect Laser’s CNC laser marking machine is small, only 0.15 M3.

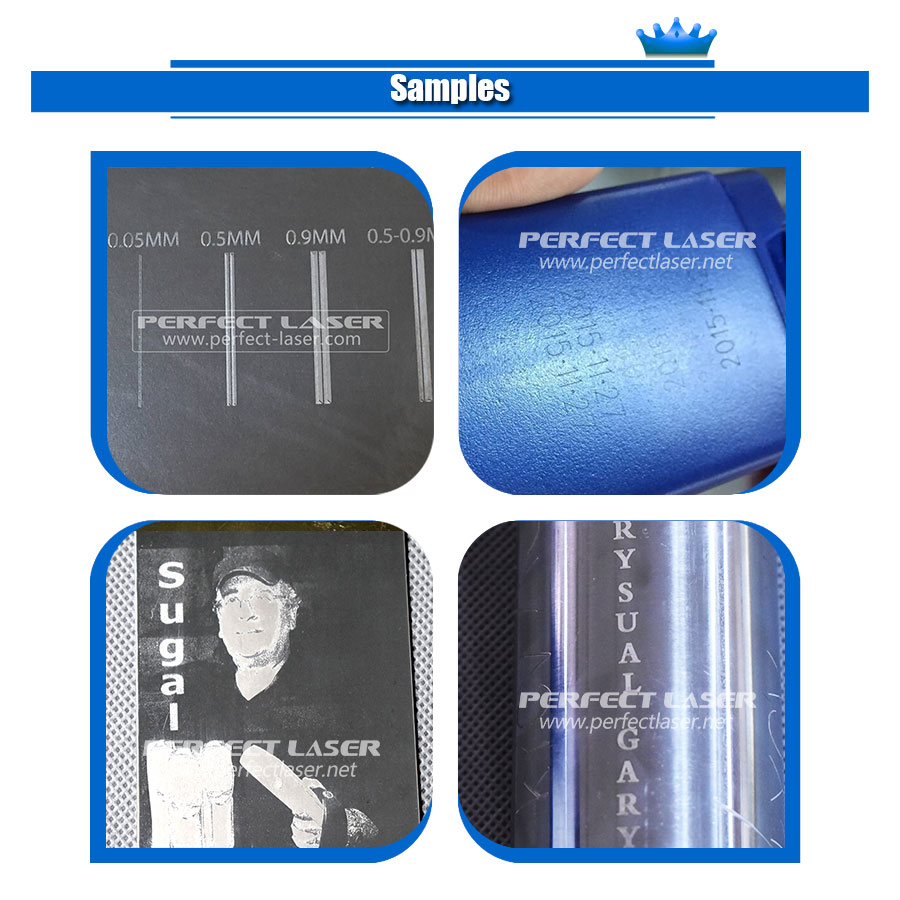

Sample Show of tabletop laser engraving machine
Packaging & Delivery
1. Prompt deliver at the very day.
2. Sophisticated and professional logistic agent.
3. Well-trained and disciplined packing team.
4. After-sale service:. Any questions or problems after receiving the product, please feel free to contact us. Problems would be solved for you immediately.
Competitive Advantages
1. We offer high quality products at competitive price in quick delivery.
2. 100% custom pass guaranteed.
3. Good after-sale service.
4. Flexible and Untraceable payment terms.
5. Our products have been exported to Germany, Norway, Poland, Finland, Spain, UK, France, Russia, USA, Brazil, Mexico, Australia, Japan, Korea, Thailand, Indonesia, Uruguay and many other countries.
