Industrial Fibre Laser Marking Machine With 0.005mm Min Focusing Spot , CE ISO Certificate
(Model:PEDB-200)
Product Description
The full-closed type 20w fiber laser marking machine adopts the portable design and is easy to move and work in different place. Laser coding machine is no consumables, so the depreciation cost of the product is greatly reduced. Metal engraving laser has the advantages of high efficiency, long service life and maintenance free, which the traditional laser doesn’t have. Industrial laser engraving machine is suitable to mark on hardware tools, kitchen knives, plastic products, integrated circuit, bottles, glasses frame, cleaner taps and so on.
Environmental, friendly and healthy. Laser engraver printer is special designed for European market, which has high demands for working environment. Full closed cabinet laser stamping machine have a cover-sealed structure. During work, the enclosed fiber laser marking machine's flog will be kept in the box body without emission to outside.
Product Advantages
1. Low operation cost, free maintenance for over 10 years
2. Fast Speed: Imported laser scanning system of the 20w fiber laser marking machines makes the enclosed fiber laser marking machine's marking speed up to 7000mm/s.
3. High Precision: 10w 20w fiber laser marking machines' Re-position precision is 0.002mm
4. High-Rate of Electrical-Optical Conversion for the enclosed fiber laser marking machine: The efficiency of 10w 20w fiber laser marking machines optic-electrical converting is up to 70%.
5. High Reliability: MTBF(Mean Time Between Failures) >100,000 hours
6. Integrated and Compact: Compact, Small, Desktop, Easy delivery
7. Easy Operating: English User Manual, VCD training video, software sending together with the 10w 20w fiber laser marking machines and 24 hours online service.
8. Air Cooling: 10w 20w fiber laser engraving machines adopts air cooling, which has excellent cooling effect than the other cooling method.
Techniacal Data:
| Item | PEDB-200 (10w) | PEDB-200 (20w) |
| Output power | 10 watt | 20 watt |
| Central wavelength | 1064±4nm | 1064±4nm |
| Polarization | Random | Random |
| Single pulse power | 0.5～0.6mJ | 0.8～1.0mJ |
| Beam quality | <1.5m2 | <1.7m2 |
| Facular diameter | 6～8mm | 7～9mm |
| Power stability | <5% | <5% |
| Frequency adjusting range adjustable range | 20～80kHz | 20～80kHz |
| Pulse breadth | 80～140ns | 80～140ns |
| Pulse adjusting range | 5～100% | 5～100% |
| operating voltage | 100～240VAC | 100～240VAC |
| Fiber Length | 1.5m | 1.5m |
| Cooling mode | forced air | forced air |
| Operation temperature | 0～35℃ | 0～35℃ |
| Operation humidity | 10～95 | 10～95 |
| Storage temperature | -10～60℃ | -10～60℃ |
| Marking Format | Graphics, Text, Bar Codes, QR Code, Serial Number,Serial number,etc. |

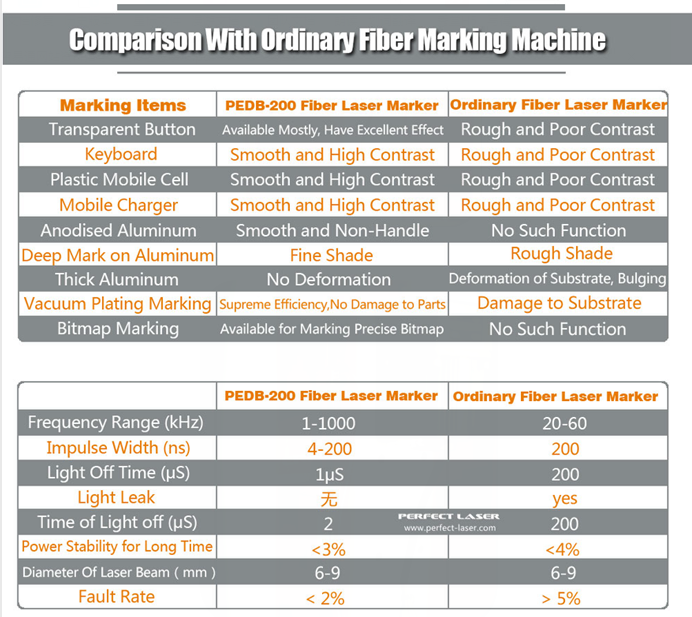

Compare wIth Ordinary Marking Machine:

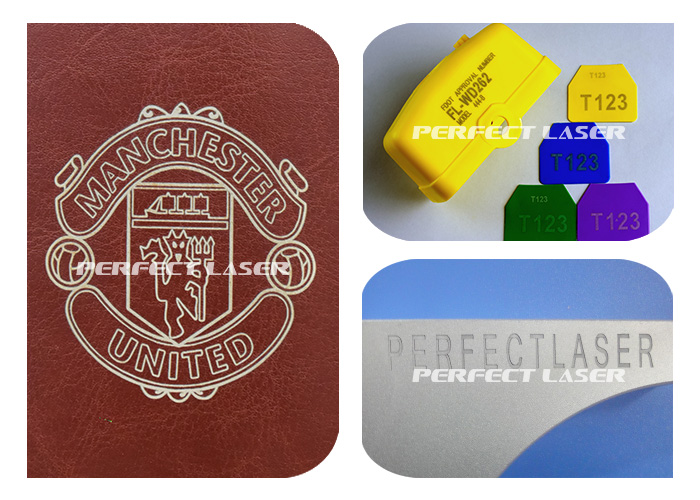

Sample Show :
Competitive Advantages
1. We offer high quality products at competitive price in quick delivery.
2. 100% custom pass guaranteed.
3. Good after-sale service.
4. Flexible and Untraceable payment terms.
5. Our products have been exported to Germany, Norway, Poland, Finland, Spain, UK, France, Russia, USA, Brazil, Mexico, Australia, Japan, Korea, Thailand, Indonesia, Uruguay and many other countries.
Packaging & Delivery
1. Prompt deliver at the very day.
2. Sophisticated and professional logistic agent.
3. Well-trained and disciplined packing team.
4. After-sale service:. Any questions or problems after receiving the product, please feel free to contact us. Problems would be solved for you immediately.
