High Solution 3D Laser Engraving Machine For Crystal And Glass Materials
(Model:PE-DP-A1)
★ Introduction of 3D Laser Engraving Machine
Perfect laser machine is controlled by computer. Precision laser cutting is simple and easy to maintain. The cutting speed is fast, the running cost is low, the product stability is high, the adaptability is strong, and has higher operation platform bearing capacity. This 3D crystal engraving machine uses an imported air cooled laser system, so the 3D crystal engraving machine not only greatly improves the speed of carving, but also has small light points, a unique high profile digital image, good stability, easy to maintain, suitable for large shopping malls, tourist resorts and a large number of places, making personalized portrait production.
★ Application of 3D Laser Engraving Machine
Because of the various functions and applications of 3D crystal engraving machine, it can also be called crystal engraving machine. Perfect Laser is a professional manufacturer of 3D crystal engraving machine. This 3D crystal engraving machine model PE-DP-A1 mainly deals with the interior of crystal and glass materials
★ Specifications of 3d Laser Engraving Machine
| Model | PE-DP-A1 | PE-DP-A2 | PE-DP-C1 | PE-DP-C2 |
| LASER | YAG Diode Pump |
| AVERAGE LIFE LD | >20000 Hours | >20000 hours | >20000 Hours |
| MAX FREQUENCY | 5000HZ | 5000HZ | 5000HZ |
| MAX RANGESUPPORT SPLIT | 400mm x320mmx150mm | 400mm x300mmx120mm | 100mm x 100mm x100mm | 120mm x 120mm x 100mm |
| FOCAL LENGTH | 120mm | 100mm | 120mm | 165mm |
| ACCURACY | 20μm~40μm | 20μm~40μm | 40μm~80μm |
| MAX SPEED | 5000 PIONTS / Second |
| REPEAT OFFSITE | 10~20μm | 10μm |
| POWER | <350W 220v/50Hz | <350W110v/60Hz | <400W 100V-120V /50Hz ; 200v - 240V /60Hz |
| WEIGHT | 150kgs |
| COOLING | Air cooling |
| ENVIRONMENT | Less dust and shock, Temperature 10-35°C, humidity < 85% |
| FILE FORMAT | BMP JPG DXF OBJ WRL 3DS STL |
| APPLICABLE MATE | All transparent material, Glass,Crystal, PMMA, etc. |
| PACKAGE SIZE | 1070mm x 970mm x 1450m | 1080mm x 780mm x 1310mm |
| MACHINE SIZE | 800mm x 900mm x 980mm | 550mm x 650mm x 850mm |

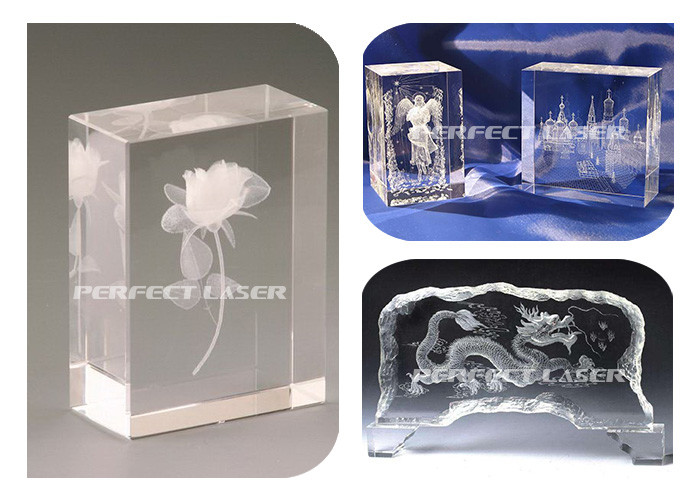

★ Sample Show of 3d Laser Engraving Machine
★ Packaging and delivery
1.responsible for the strict discipline of logistics agents and packaging teams.
2. deliveries are delivered quickly and delivered on the same day
3.advanced, professional logistics agent.
4. provide high quality after-sales service.
★ Competitive advantage
1. Optimization of laser beam
2.high quality products to provide trust for customers
3.the independent configuration of 2. parameters
4. explain these functions through theoretical and practical exercises
