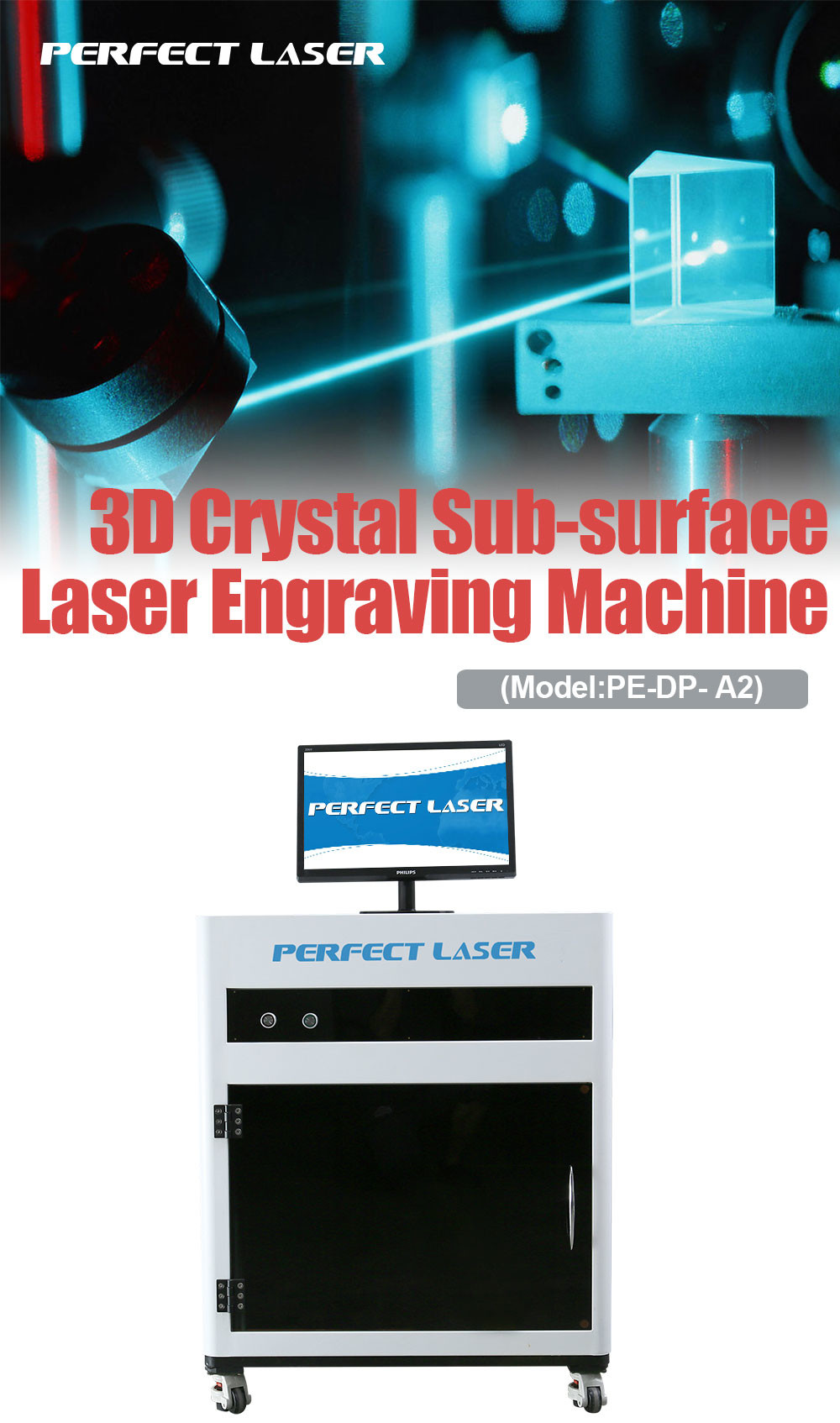

3D Automatic Mini Transparent Crystal Glass Acrylic Laser Engraver Engraving Machines With CCD Camera
(Model:PE-DP-A2)
★Product Introduction
Perfect Laser is a professional manufacturer of 3D crystal engraving machine .This 3D crystal engraving machine model PE-DP-A2 mainly handles the interior of crystals and glass materials.

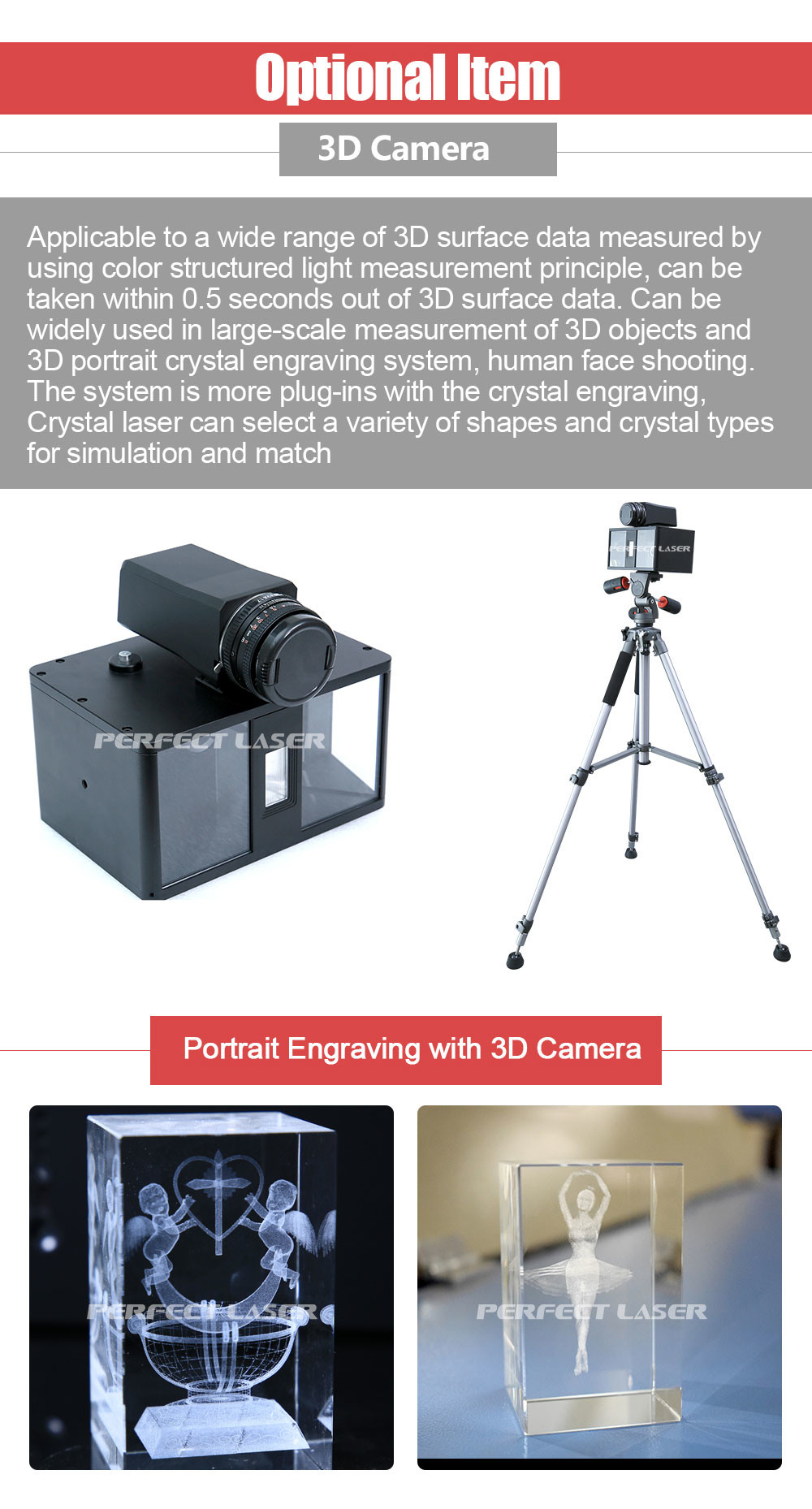

By adding a 3D camera to take the 3D portraits on the human body, and through the laser inner carving technology make beam dots inside of crystal, 3D crystal engraving machine can create many dots to form a 3D human images.
This type of 3D crystal engraving machine use the imported air cooling laser system, so 3D crystal engraving machine not only greatly increased the speed of engraving, but also with small light point, carving out digital images of high profile distinctive characteristic, good stability and easy maintain, Suitable for large shopping malls, tourist resort and the place of big population like that make the personalized portrait production.
Due to 3D crystal engraving machine's various features and application, it also can be called crystal engraving machine.

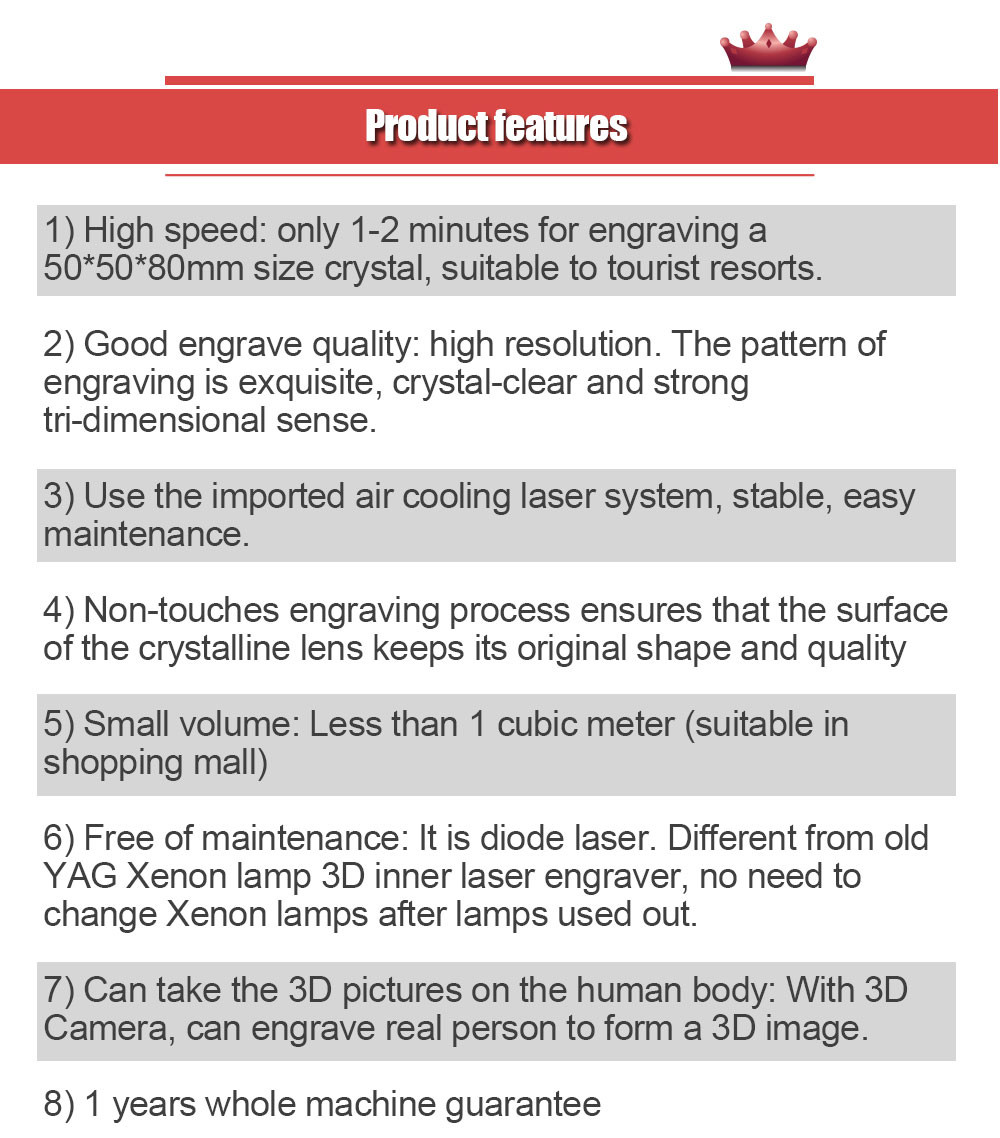

★Product Features
★Application
Applicable Industry

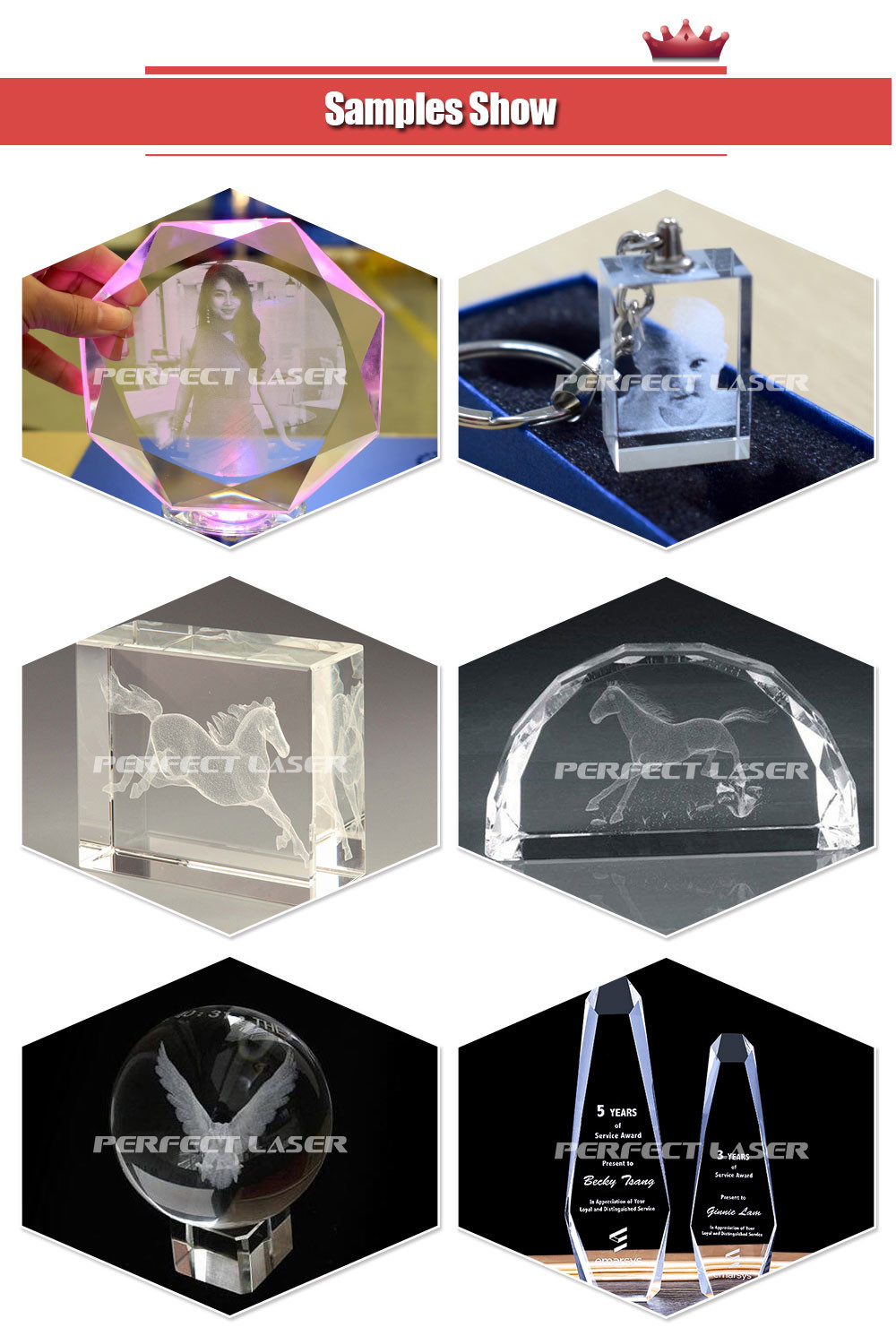

2D or 3D in three-dimensional pattern engraving, crystal glass and acrylic transparent materials. Can be carved 2D/3D portrait, name footprints, trophies and other per-sonalized gift souvenirs, but also mass production of 2D/3D animals, plants, buildings, vehicles, ships, aircraft and other models of products and 3D scene display. Widely recommended for use in urban scenic spots, photo printing shop, wedding photography, tourism souvenirs and personalized gift shop, can also be used in place of other consumer sites and temporary activities. Suitable for tourism, hotels, galleries, photo studio, advertising and other consumer and industry activities.
Applied Materials
Suitable for crystal, glass, acrylic, decoration materials and other transparent materials etc.
★Specifications
| Model | PE-DP-A2 |
| Laser | YAG Diode Pump |
| Average Life Ld | >20000 Hours |
| Max Frequency | 5000HZ |
| Max Engraving Area | 400mm x 300mm x 120mm |
| Focal Length(standard) | 120mm |
| Focal Length(Optional) | 120mm |
| Accuracy | 20μm~40μm |
| Max Speed | 300000 PIONTS /Minute |
| Repeat Offsite | 10~20μm |
| Power | <350W 220v/60Hz |
| Net Weight | 185kgs |
| Cooling | Air cooling |
| Environment | Less dust and shock, Temperature 10-35°C, humidity < 85% |
| File Format | BMP JPG DXF OBJ WRL 3DS STL |
| Applicable Mate | Crystal, Glass, Acrylic and Other Internal Carvings and Mental Surface Carvings |
| Package Size | 1060mm x1060mm x 1460mm |
| Machine Size | 800mm x 900mm x 980mm |
★Packaging & Delivery
1. Prompt deliver at the very day.
2. Well-trained and disciplined packing team.
3. After-sale service: Any questions or problems after receiving the product, please feel free to contact us. Problems would be solved for you immediately.
4. Sophisticated and professional logistic agent.
★Competitive Advantages
1. 100% custom pass guaranteed.
2. Our products have been exported to Germany, Norway, Poland, Finland, Spain, UK, France, Russia, USA, Brazil, Mexico, Australia, Japan, Korea, Thailand, Indonesia, Uruguay and many other countries.
3. Flexible and Untraceable payment terms.
4. Good after-sale service.
5. We offer high quality products at competitive price in quick delivery.
