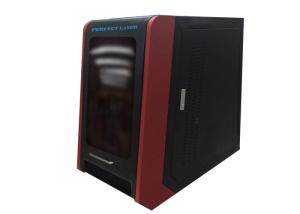

Full Enclosed 10w / 20w fiber laser marking machine environmental friendly
Product Description:
10w 20w fiber laser marking machines is our Perfect Laser second generation enclosed cabinet fiber laser marking machine,special designed for European market, which has high demands for working environment.
Features:
1. Low operation cost, free maintenance for over 10 years
2. Fast Speed: Imported laser scanning system of the 20w fiber laser marking machines makes the enclosed fiber laser marking machine's marking speed up to 7000mm/s.
3. High Precision: 10w 20w fiber laser marking machines' Re-position precision is 0.002mm
4. High-Rate of Electrical-Optical Conversion for the enclosed fiber laser marking machine: The efficiency of 10w 20w fiber laser marking machines optic-electrical converting is up to 70%.
5. High Reliability: MTBF(Mean Time Between Failures) >100,000 hours
6. Integrated and Compact: Compact, Small, Desktop, Easy delivery
7. Easy Operating: English User Manual, VCD training video, software sending together with the 10w 20w fiber laser marking machines and 24 hours online service.
8. Air Cooling: 10w 20w fiber laser engraving machines adopts air cooling, which has excellent cooling effect than the other cooling method.
Application:
10w 20w fiber laser marking machines are of good quality output beam, high reliability.
10w 20w fiber laser marking machines can be carved both on metal materials and some non-metallic materials.
This kind of enclosed fiber laser marking machine mainly marked in areas for smoothness, finesse demanding, such as electronic products, metal ware, watches, jewelry, IC, plastic buttons and other graphic surface.
The effect of 10w 20w fiber laser marker on Bitmap marking is particularly outstanding.
It is also called:10w fiber laser marking machines,20w fiber laser marking machines,fiber laser marking machine price,10w fiber laser marker,20w fiber laser marker,10w fiber laser engraving machines.
Technical Data
| Item | PEDB-200 (10w) | PEDB-200 (20w) |
| Output power | 10 watt | 20 watt |
| Central wavelength | 1064±4nm | 1064±4nm |
| Polarization | Random | Random |
| Single pulse power | 0.5～0.6mJ | 0.8～1.0mJ |
| Beam quality | <1.5m2 | <1.7m2 |
| Facular diameter | 6～8mm | 7～9mm |
| Power stability | <5% | <5% |
| Frequency adjusting range adjustable range | 20～80kHz | 20～80kHz |
| Pulse breadth | 80～140ns | 80～140ns |
| Pulse adjusting range | 5～100% | 5～100% |
| operating voltage | 100～240VAC | 100～240VAC |
| Fiber Length | 1.5m | 1.5m |
| Cooling mode | forced air | forced air |
| Operation temperature | 0～35℃ | 0～35℃ |
| Operation humidity | 10～95 | 10～95 |
| Storage temperature | -10～60℃ | -10～60℃ |
| Marking Format | Graphics, Text, Bar Codes, QR Code, Serial Number,Serial number,etc. |

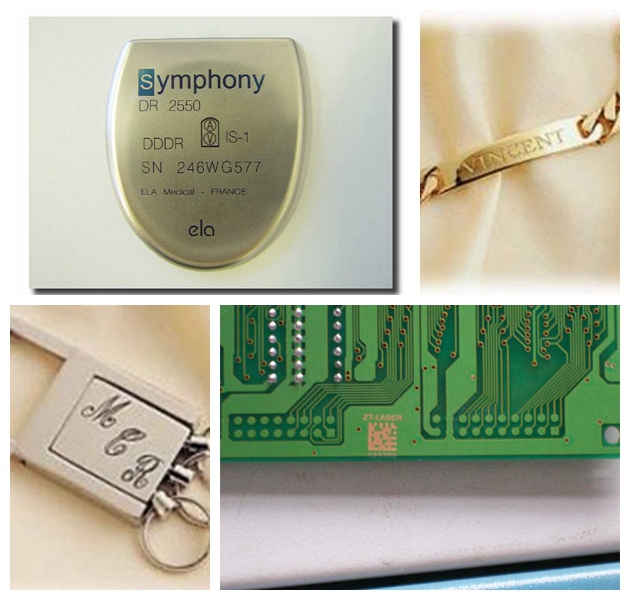

Samples:
Packaging & Delivery
1. Prompt deliver at the very day.
2. Sophisticated and professional logistic agent.
3. Well-trained and disciplined packing team.
4. After-sale service:. Any questions or problems after receiving the product, please feel free to contact us. Problems would be solved for you immediately.
Competitive Advantages
1. We offer high quality products at competitive price in quick delivery.
2. 100% custom pass guaranteed.
3. Good after-sale service.
4. Flexible and Untraceable payment terms.
5. Our products have been exported to Germany, Norway, Poland, Finland, Spain, UK, France, Russia, USA, Brazil, Mexico, Australia, Japan, Korea, Thailand, Indonesia, Uruguay and many other countries.
