20W MOPA Desk Lifting Type Fiber Laser Marking Machine Small Compact
(Model:PEDB-400B)
Description of laser metal etching machine
Fiber Laser Marking Machine adopts international most advanced technology and the laser source is fiber with Germany IPG technology, laser making machine lifetime can reach 100,000 hours, 8-10 years without any consumables and maintenance.
Product Features of laser metal etching machine
This is the best choice for the customers who have special requirements to the smallest & finest laser beam and character.
1.Compact: The high-tech product, which is combined of laser device, computer, auto controller and precision machinery.
2.High Precision: Re-position precision is 0.002mm
3.High Speed: Imported scanning system makes the scanning speed is up to 7m/s
4.Easily Operating:Afford the specific marking software based on Windows, You can input and output by computer according to edit in the both of the specific marking software and the graphic software such as AutoCAD, CorelDRAW and Photoshop.
5.High Reliability: MTBF>100,000 hours
6.Energy Saving: The efficiency of optic-electrical converting is up to 30%
7.Low Running Cost: No wearing part. Free maintaining.
Technical Data of laser metal etching machine
| Model No. | PEDB-400A | PEDB-400B | PEDB-400C | PEDB-400D |
| Type | Portable | Desktop | Colorful | Floor Stand |
| Computer | Not includes PC | Includes PC |
| Laser Source |
| IPG Series: | Pulsed, High Energy Ytterbium Fiber Lasers |
| Mode of operation | Pulsed |
| Polarization: | random |
| Nominal average output power | 10W - 20W |
| Central emission wavelength: | 1060-1070 nm ,Q-switched operation Output power adjustment range 10%-100% |
| Emission Bandwidth (FWHM) | <10 nm |
| Long-term average power instability | <5% |
| Pulse width, (FWHM) | 100 ns |
| Laser switching ON time | 180 μsec |
| Laser switching OFF time | 180 μsec |
| Pulse Repetition Rate* kHz | 20-80 kHz |
| Energy per pulse (PRR = 20 kHz) | 0.95 mJ |
| Typical beam quality, M2 | <1.8 |
| Output fiber delivery length | 3m |
| Operating voltage: | 220V |
| Max. Power consumption: | 600W |
| Net Dimensions: | 70*20*50cm | 58*22*50cm 80*38*72cm | 70*20*50cm | 143*62*101cm |
| Net Weight: | 44 kgs | 53 kgs | 44 kgs | 130 kgs |
| Gross Weight: | 60 kgs | 70 kgs | 60 kgs | 200 kgs |
| Laser system |
| Scanning Speed: | 0-7000mm/s |
| Marking Speed: | 0-5000mm/s |
| Marking size: | 110mm×110mm (F-theta 160) |
| Spot size: | ≤ 40 micron (F-theta 160) |
| Cooling unit: | Air cooled |
| Pilot laser: | 650nm diode laser, visible red light for marking guide |
| Continuous working time: | ≥16h |
| Humidity: | 45～85% (no condensation) |
| Operating temperature: | 0~40℃ |
| Control units | Laser Mark (English Version) |

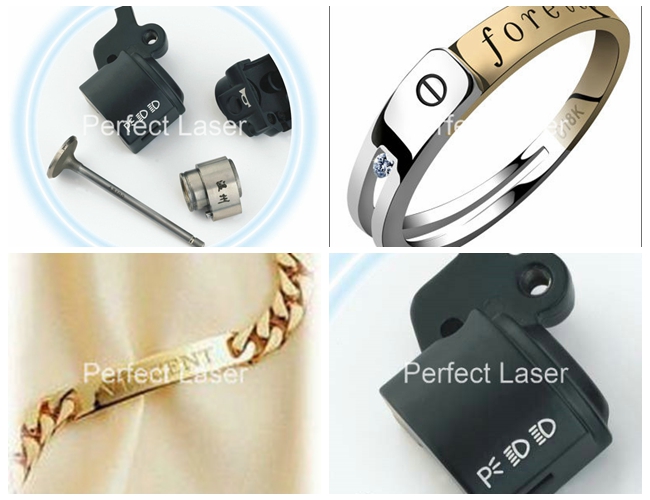

Sample Show of laser metal etching machine
Packaging & Delivery
1. Prompt deliver at the very day.
2. Sophisticated and professional logistic agent.
3. Well-trained and disciplined packing team.
4. After-sale service:. Any questions or problems after receiving the product, please feel free to contact us. Problems would be solved for you immediately.
Competitive Advantages
1. We offer high quality products at competitive price in quick delivery.
2. 100% custom pass guaranteed.
3. Good after-sale service.
4. Flexible and Untraceable payment terms.
5. Our products have been exported to Germany, Norway, Poland, Finland, Spain, UK, France, Russia, USA, Brazil, Mexico, Australia, Japan, Korea, Thailand, Indonesia, Uruguay and many other countries.
