Double Optical Path Handheld Laser Welder , Metal Welding Machine For Channel Letter

Name: Double Optical Path Handheld Laser Welder Metal Welding Machine For Channel Letter
Brand: Perfect Laser
Price: 1 USD

Quality Double Optical Path Handheld Laser Welder , Metal Welding Machine For Channel Letter wholesale

Brand Name : Perfect Laser

Model Number : PE-W300II

Certification : CE / ISO / FDA SGS / TUV

Place of Origin : China

MOQ : 1 Unit

Price : Negotiable

Payment Terms : T/T, L/C, PayPal, Western Union

Supply Ability : 3000 Unit per Month

Delivery Time : 5-10 Working Days

Packaging Details : Sea-Worthy Packing or Air-Worthy Packing

Product Name : Double Welding Path Channel Letter Laser Welding Machine

Application : Laser Welding

Welding Frequency : 0.5-40Hz

Wavelength : 1064nm

Cooling Type : Water Cooling

Working Area : 750*1000

Electrical Source : 220V/50Hz/40A

Adjusting Facular Size : 0.2-2mm

After-Sales Service Provided : Engineers Service Overseas

Contact Now

Double Optical Path Hand-held Fiber Laser Metal Channel Letter Laser Welding Machine

Application
Advertising letter laser welding machine is used for making a variety of stainless steel letter, LED luminous characters, LOGO, signs and other fast welding.

Product Features
1.Laser head can electrically move back and forth, up and down, left and right and rotate 360 degree.
2. Heat affected zone is small. The work piece surface will not deformed.
3. For letters in the advertising industry, there is specially lengthened optical path and th elescopic scope can be added to 800mm.
4. The specially designed long focal distance lens F=200mm to meet the demand for ultra-high font welding.

Specifications

Model	PE-W300I	PE-W400I	PE-W300II	PE-W500II
name	300W Laser welding machine	400W Laser welding machine	300W Double light path Laser welding machine hand held	500W Double light path Laser welding machine hand held
Custom Code	8515800090 or 8515809090(the other welding machine and equipment)
Machinery Part	Laser cavity length of 1100 mm, the laser head can rotate 360 degrees.
Working Area	750*1000MM
Load Bearing	≤200KG
Machine power supply	220V±10%/50/60Hz	380V±10%/50/60Hz	220V±10%/50/60Hz	380V±10%/50/60Hz
Laser Type	Nd:YAG impulse xenon lamp
Spot Size	0．2-3．0mm
Laser Wave Length	1064nm
Impulse width	≤10ms
Laser Power	300W	400W	300W	500W
single pulse energy	90J	120J	90J	120J
Impulse Rate	≤30Hz	≤50Hz	≤30Hz	≤50Hz
Laser output focal length	150-250mm	150-250mm	150-250mm Lase head 120mm	150-250mm Laser head120mm
Laser Cooling	Water cooling
Cooling Capacity	2700W	5000W	2700W	5000W
Total power	<7KW	<12KW	<7KW	<12KW
Viewing System	CCD
Machine Size Water Chiller	14008001100mm 600420750mm	15008001100mm 900600950mm	14008001140 600420750mm	14508001100mm 900600950mm
Package Size(machine body)	15008301240mm	16008001240mm 9607601150mm	15008301280mm	15308101200mm 9607601150mm
Gross Weight	280KG	430KG	300KG	450KG

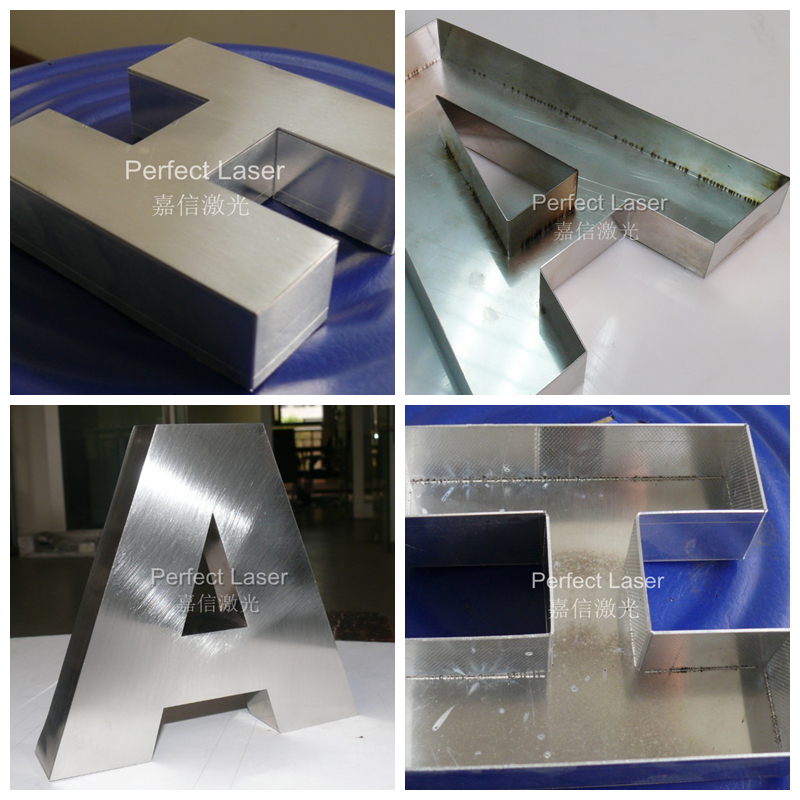

Sample Show
Double Optical Path Handheld Laser Welder , Metal Welding Machine For Channel Letter

Packaging & Delivery
1. Prompt deliver at the very day.
2. Sophisticated and professional logistic agent.
3. Well-trained and disciplined packing team.
4. After-sale service:. Any questions or problems after receiving the product, please feel free to contact us. Problems would be solved for you immediately.

Competitive Advantages
1. We offer high quality products at competitive price in quick delivery.
2. 100% custom pass guaranteed.
3. Good after-sale service.
4. Flexible and Untraceable payment terms.
5. Our products have been exported to Germany, Norway, Poland, Finland, Spain, UK, France, Russia, USA, Brazil, Mexico, Australia, Japan, Korea, Thailand, Indonesia, Uruguay and many other countries.
