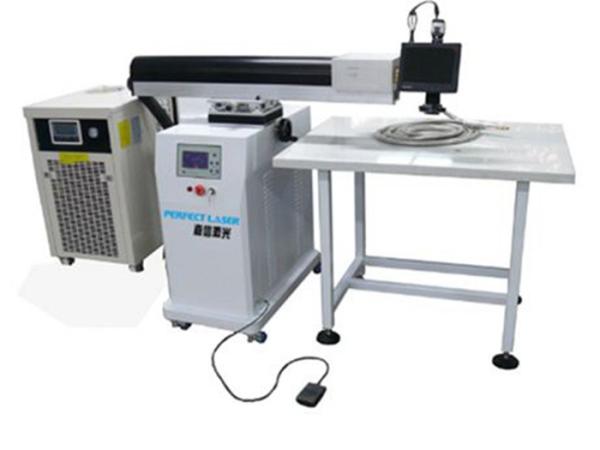

Perfect PE-W400II 400W Fiber Welding Laser Machine Stainless Steel Channel Letter
Product Features
1.Laser head can electrically move back and forth, up and down, left and right and rotate 360 degree.
2. Heat affected zone is small. The work piece surface will not deformed.
3. There is optional CCD monitor. The welding effect is more clear and intuitive.
4. The specially designed long focal distance lens F=200mm to meet the demand for ultra-high font welding.
Application
Advertising letter laser welding machine is used for making a variety of stainless steel letter, LED luminous characters, LOGO, signs and other fast welding.
Specifications
| Model | PE-W300I | PE-W400I | PE-W300II | PE-W500II |
| name | 300W Laser welding machine | 400W Laser welding machine | 300W Double light path Laser welding machine hand held | 500W Double light path Laser welding machine hand held |
| Custom Code | 8515800090 or 8515809090(the other welding machine and equipment) |
| Machinery Part | Laser cavity length of 1100 mm, the laser head can rotate 360 degrees. |
| Working Area | 750*1000MM |
| Load Bearing | ≤200KG |
| Machine power supply | 220V±10%/50/60Hz | 380V±10%/50/60Hz | 220V±10%/50/60Hz | 380V±10%/50/60Hz |
| Laser Type | Nd:YAG impulse xenon lamp |
| Spot Size | 0．2-3．0mm |
| Laser Wave Length | 1064nm |
| Impulse width | ≤10ms |
| Laser Power | 300W | 400W | 300W | 500W |
| single pulse energy | 90J | 120J | 90J | 120J |
| Impulse Rate | ≤30Hz | ≤50Hz | ≤30Hz | ≤50Hz |
| Laser output focal length | 150-250mm | 150-250mm | 150-250mm Lase head 120mm | 150-250mm Laser head120mm |
| Laser Cooling | Water cooling |
| Cooling Capacity | 2700W | 5000W | 2700W | 5000W |
| Total power | <7KW | <12KW | <7KW | <12KW |
| Viewing System | CCD |
| Machine Size Water Chiller | 1400*800*1100mm 600*420*750mm | 1500*800*1100mm 900*600*950mm | 1400*800*1140 600*420*750mm | 1450*800*1100mm 900*600*950mm |
| Package Size(machine body) | 1500*830*1240mm | 1600*800*1240mm 960*760*1150mm | 1500*830*1280mm | 1530*810*1200mm 960*760*1150mm |
| Gross Weight | 280KG | 430KG | 300KG | 450KG |

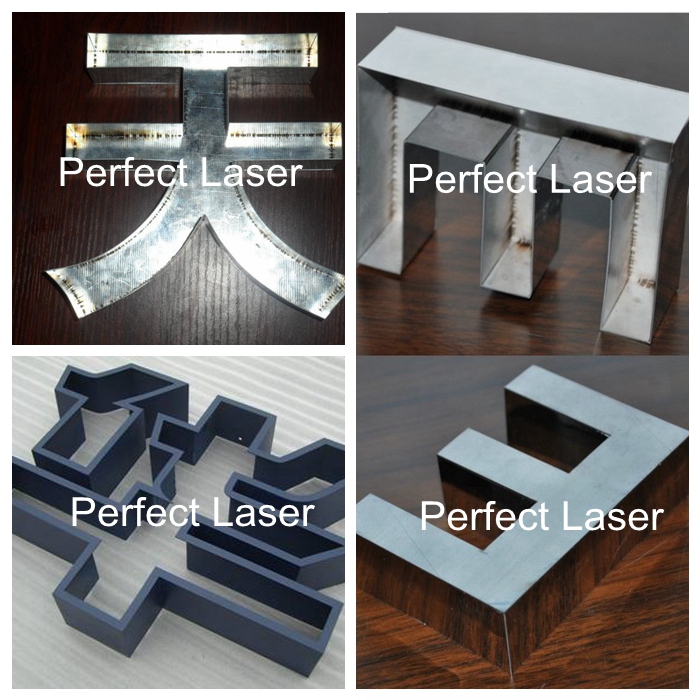

Sample Show
Packaging & Delivery
1. Prompt deliver at the very day.
2. Sophisticated and professional logistic agent.
3. Well-trained and disciplined packing team.
4. After-sale service:. Any questions or problems after receiving the product, please feel free to contact us. Problems would be solved for you immediately.
Competitive Advantages
1. We offer high quality products at competitive price in quick delivery.
2. 100% custom pass guaranteed.
3. Good after-sale service.
4. Flexible and Untraceable payment terms.
5. Our products have been exported to Germany, Norway, Poland, Finland, Spain, UK, France, Russia, USA, Brazil, Mexico, Australia, Japan, Korea, Thailand, Indonesia, Uruguay and many other countries.
