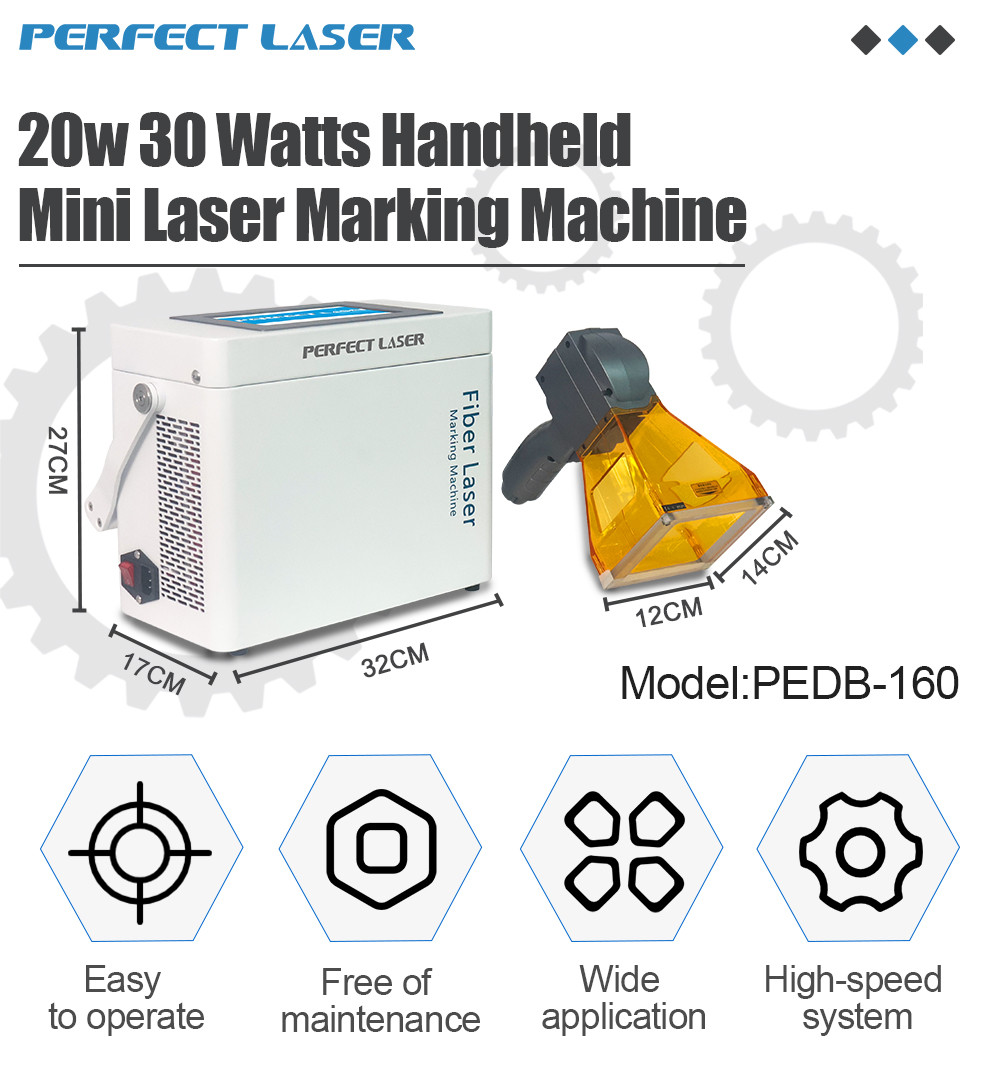

20W 30W Handheld Mini Automatic Smart LCD Metal Aluminum Carbon Stainless Steel laser etching machine
(Model:PEDB-160)
※ Product Introduction
Perfect Laser's new generation of portable handheld laser marking machine is more timely and efficient in trouble-shooting and problem processing.Using programmable devices and high-speed and high-precision DA integrated circuits, the laser processing and positioning are accurate and fast.
All-optical coupling isolation technology is applied in this portable laser marking machine. The whole system has low power consumption, good stability and strong performance.
This mini laser marking machine is specially designed for marking on many kinds of metal products and some hard plastic products.
※ Product Features
1. High-hardness engineering-grade plastic machine body ensures that the body is not easily exposed to water and dust in various production environments.
2. The integrated structure of the handheld laser marking machine is small and compact, with friendly man-machine dialogue interface, and the operation is simple and easy to use.
3. It uses a two-dimensional magnetic levitation galvanometer laser scanning head, which is small in size, fast in speed and accurate in positioning.
4. The laser source has a long service life and is maintenance-free.
5. Highly sensitive touch screen, intelligent red light positioning, powerful system function, high efficiency, high speed and stability.
6. The plane and slope surface can be marked. It can be moved anytime, anywhere.
7. Any content of letters, numbers, date, Logo, picture, QR code, barcode can be marked.
8. This portable laser marking machine has 6 - 8 hours super long standby time.
※ Application
The handheld laser marking machine is suitable for marking on various production materials, such as: stainless steel, carbon steel, mild steel, iron, aluminum, zinc, copper, brass, etc. as well as curved objects, rigid plastics, etc.

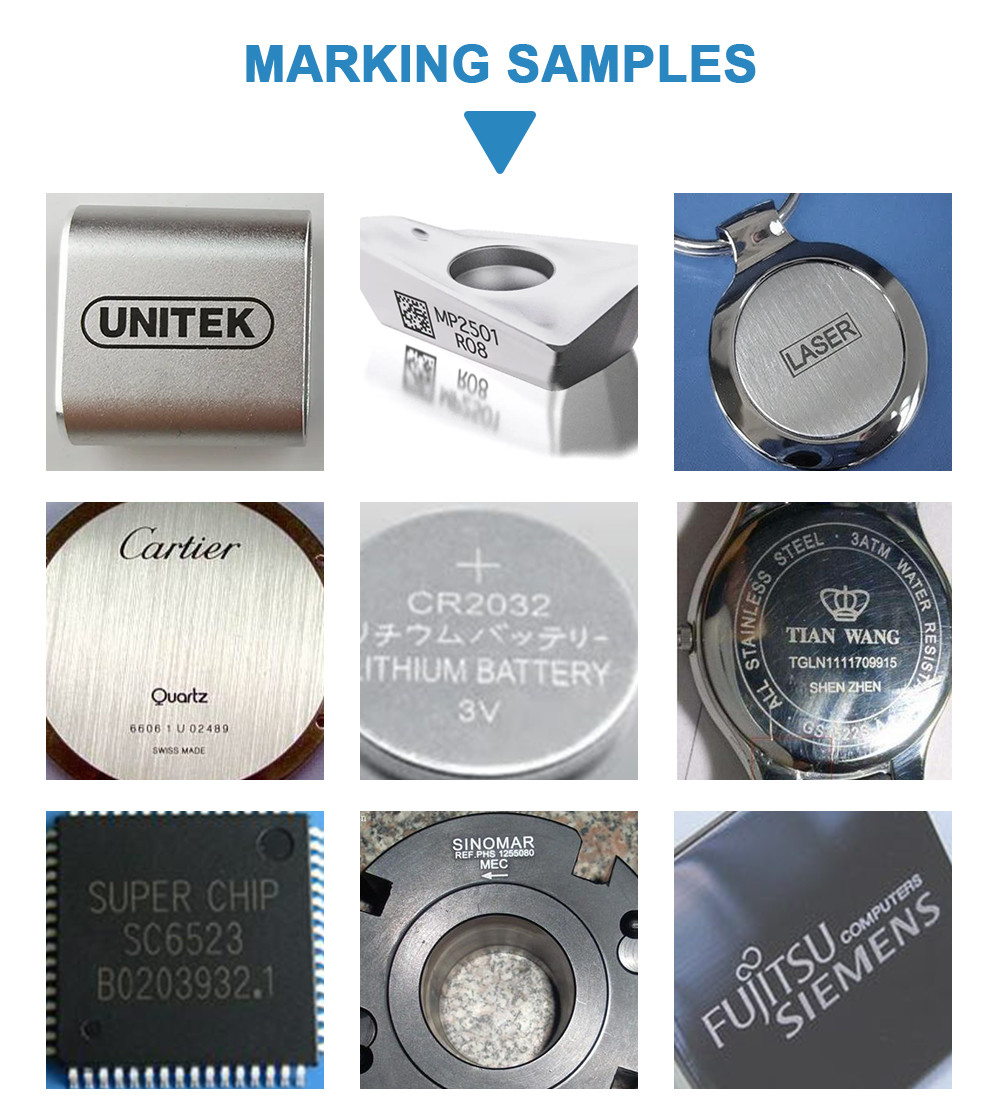

※ Sample shows
※Technical Data
| Product Name | Handheld Portable Fiber Laser Marking Machine |
| Model No. | PEDB-160 | PEDB-161 | PEDB-162 | PEDB-163 |
| Machine Material | Engineering Plastic |
| Laser type | Fiber Laser |
| Laser Power | ≥20W | ≥30W | ≥20W | ≥30W |
| Laser Wavelength | 1064nm |
| Marking Method | High-precision 2D Scanning Method |
| Marking Speed | ≤7000mm/s |
| Main Control Board | Highly integrated main board with embedded 7-inches screen |
| Operating System | Linux |
| Cooling Method | Air Cooling |
| Marking Line Type | Dot matrix + Vector all-in-one machine (both dot matrix and vector) |
| Mirror Size | 8.5mm |
| Marking Area | 50mmx50mm (Standard Marking Area) 100mmx100mm (Optional Marking Area) |
| Position Method | Red light positioning |
| Marking Speed | 650 characters/second (the specific speed is related to the material & marking content) |
| Font Support | English / Korean / Russian / Arabic / Chinese numerals and other standard fonts (only choose one of above) |
| File Format | BMP / DXF / HPGL / JPEG / PLT |
| Barcode/QR code | CODE39 / CODF128 / CODE126FAN13 / PDF417 / 01CODFOR / AZTFCCODF/ DM / GS1DM / DOTCODE / HANXINCODE |
| Power Supply | 220V Plug In Mode | Battery Charging Mode |
| Maximum Power Consumption | ≤300W |
| Battery Fully Charged Time | No | 4 hours |
| Battery Continuous Working Time with Full Power | No | 6-8 hours |
| Net Weight | 6 kgs |
| Temperature | 0-40℃ |
| Ambient Relative Humidity | 30%-85% RH |
| Training & After Sales Service | VCD training + 24 hours after-sales service |
| Warranty | 36 month for fiber laser source 24 month for whole machine |
★ Packaging & Delivery
1. Prompt deliver at the very day.
2. Sophisticated and professional logistic agent.
3. Well-trained and disciplined packing team.
4. After-sale service:. Any questions or problems after receiving the product, please feel free to contact us. Problems would be solved for you immediately
★ Competitive Advantages
1. We offer high quality products at competitive price in quick delivery.
2. 100% custom pass guaranteed.
3. Good after-sale service.
4. Flexible and Untraceable payment terms.
5. Our products have been exported to Germany, Norway, Poland, Finland, Spain, UK, France, Russia, USA, Brazil, Mexico, Australia, Japan, Korea, Thailand, Indonesia, Uruguay and many other countries.
