LCD Control Desktop Handheld Dot Peen Marking Machine Multi Functional
(PEQD-450)
►Product Introduction
Perfect Laser’s portable dot peen marking machine PEQD-450, adopted Portable and desktop marking head, Easy to operate and efficient. The marking needle makes high-frequency impact motion under the action of compressed air, so as to mark out a certain of depth marks on the work-piece.It is suitable for marking large work-pieces or inconvenient to move work-pieces, and can cooperate with pipe line operation. The marking machine, affordable price, long service life, is a good quality of the necessary equipment.
►Product Features
1. The LCD flat pneumatic marking machine adopts intelligent controller to drive the head, without connecting to a computer; the system is easy to operate, with a friendly interface, suitable for various operators.
2. With digital and character font, the printing content can be digital, large and small letters, Chinese characters, special characters, etc..
3. The font can be solid or dot matrix. Users can add a variety of numbers, letters, Chinese characters, special characters and other font.
4. The pneumatic marking machine can Automatic printing of date, running number, VIN code, etc. In a variety of formats for the user to choose.

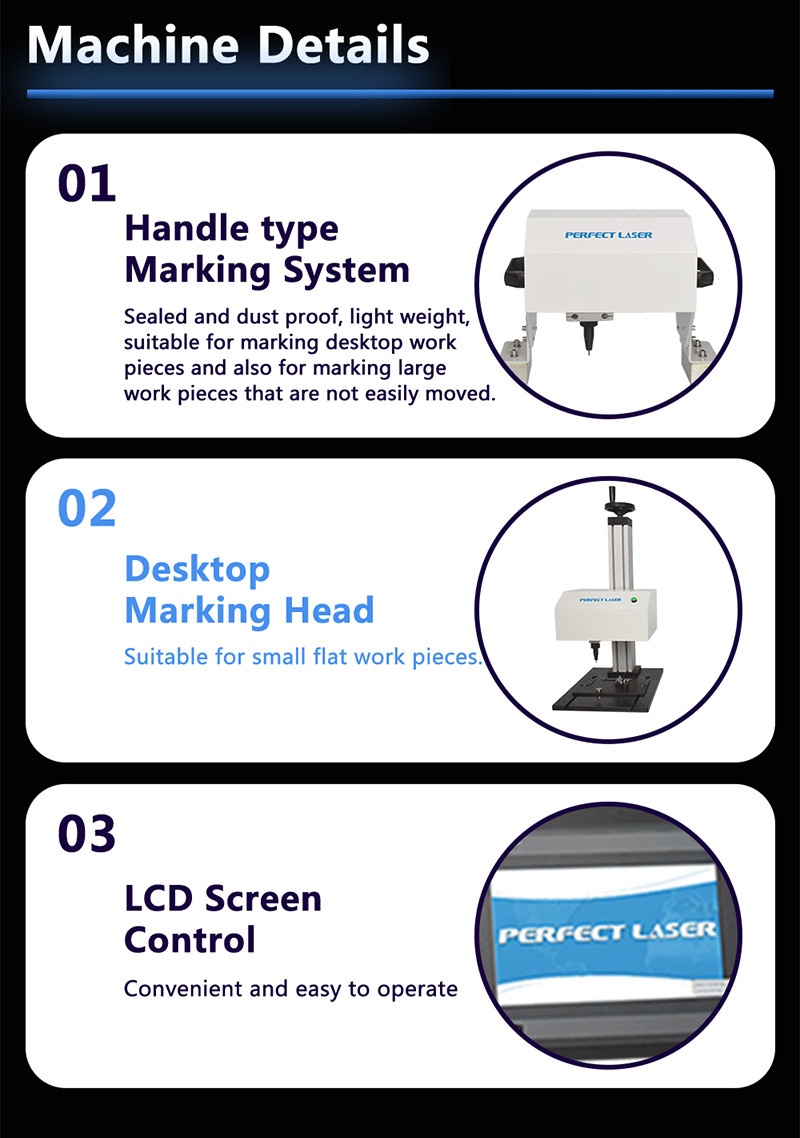

5. Portable and desktop marking head to meet the marking needs of large and small work-pieces at the same time. To provide you with a full set of marking solutions.
6. LCD flat surface pneumatic marking machine is easy to maintain and has a strong ability to adapt to the environment.
►Application
The portable dot peen marking machine is suitable for marking large work-pieces or work-pieces that cannot be easily moved, and for use with assembly line operations. It can also be used for marking small parts.Typical applications are the marking of VIN codes on car frames and the marking of car nameplates.

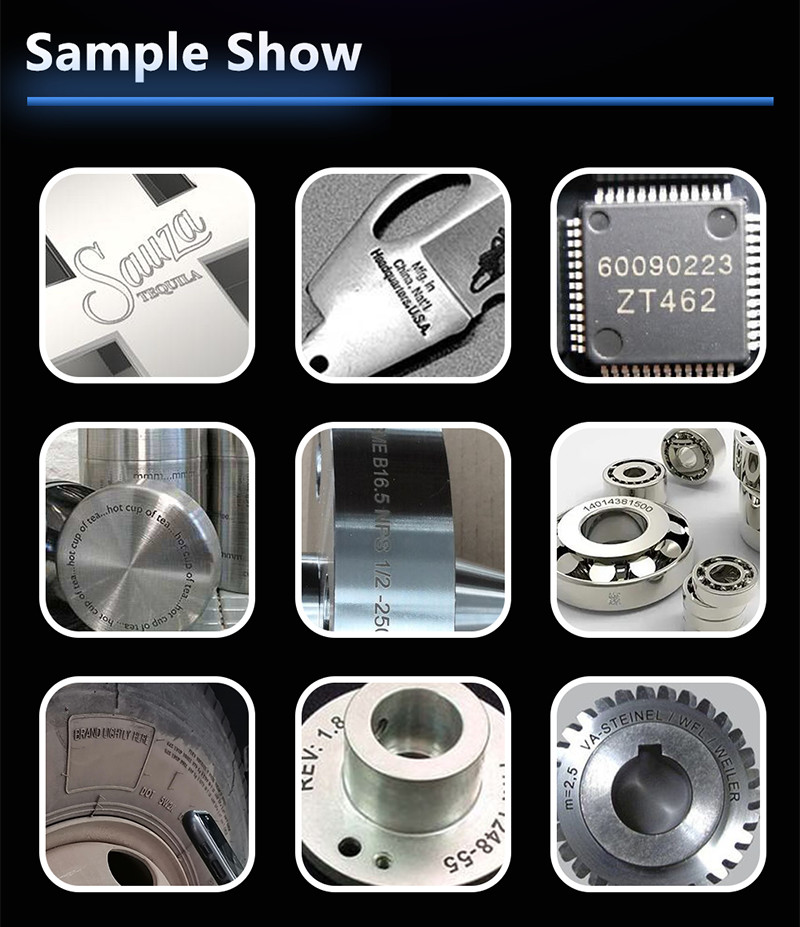

►Samples
►Technical Data
| Machine Name | LCD Control Multi-functional Desktop and Portable Handheld Dot Peen Marking Machine |
| Model | PEQD-450 |
| Machine Type | Portable+Desktop+LCD Type Pin Marking Machine |
| Standard Marking Area | 135mm×20mm |
| Optional Marking Area | 90mm×20mm, 125mm×20mm 150mm×100mm, 200mm×100mm |
| Marking Depth | 0.01~2mm |
| Marking Speed | ≤50mm/second (for characters height of 3mm / 3-4 numbers/s) |
| Lifting Range | 0-300 mm (customizable) |
| Marking Accuracy | 0.01 mm |
| Pin Hardness | HRA 92 |
| Power Supply | 220V±10％, 50HZ |
| Air Pressure | 0.2-0.6 Mpa |
| Machine Power | ≤400 W |
| Working Environment | -5～40 ℃ |
► Packaging & Delivery
1. Well-trained and disciplined packing team.
2. Sophisticated and professional logistic agent.
3. Prompt deliver at the very day.
4. After-sale service: Any questions or problems after receiving the product, please feel free to contact us. Problems would be solved for you immediately.
►Competitive Advantages
1. Good after-sales service, 24 hours online service.
2. Flexible and untraceable payment terms.
3. Free product consultation, program recommendation, proofing test,free after-sales service.
4. We provide high quality products with competitive price and fast delivery.
5. More than 20 years of experience in laser equipment research and development, production.
6. The products are exported to Germany, Norway, Poland, Finland,Spain, Britain, France, Russia, the United States, Brazil, Mexico, Australia, Japan, South Korea, Thailand, Indonesia, Uruguay and other countries.
