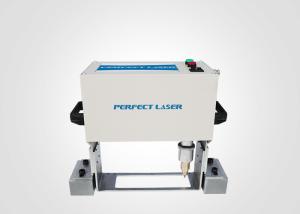

Intelligent Portable Integrated Dot Peen Marking Machine For Metal
(PEQD-030H)
►Product Introduction
Perfect Laser’s portable handheld dot peen marking machine is a nice marked machine, stable performance, safe and reliable. It is simple and easy to operate, marking highly fluently, durable service, and the marking effect is good.
The content to be engraved is input into the computer program, and the marking needle is controlled by the portable handheld dot peen marking machine to move according to a certain track. At the same time, the marking needle has a high frequency impact on the work piece under the action of compressed air, so as to form the required engraving content on the work piece. The portable handheld dot peen marking machine has strong function, good operation interface and high reliability and system stability.
►Product Features
1. The portable handheld dot peen marking machine has a high strength adsorption force of the electromagnet, electricity can be locked, suitable for marking objects of different sizes.
2. Integrated molding design, touch screen control, plug in power can be operated.
3. The portable handheld dot peen marking machine adopt ARM control chip, strong performance, overall speed up 5-6 times.
4. High precision linear guide rail, smooth running, wear-resistant and durable, better engraving effect.
5. HRC92° high carbide marking needle, durable, can play HRC60° within a variety of substances.
6. The portable handheld dot peen marking machine adopt Taiwan linear guide rail, marking smooth without delay.
7. professional grade pure copper motor, strong power, high temperature resistance, fast heat dissipation, suitable for high strength operation.
8. High quality touch screen, strong performance, marking smooth step, solid material, low fault.
►Application
The portable handheld dot peen marking machine is suitable for frame, engine, oil pipe, mold, steel parts, flanges, girders and other heavy large work piece or not convenient to move the work piece marking, and cooperate with the pipeline operation.

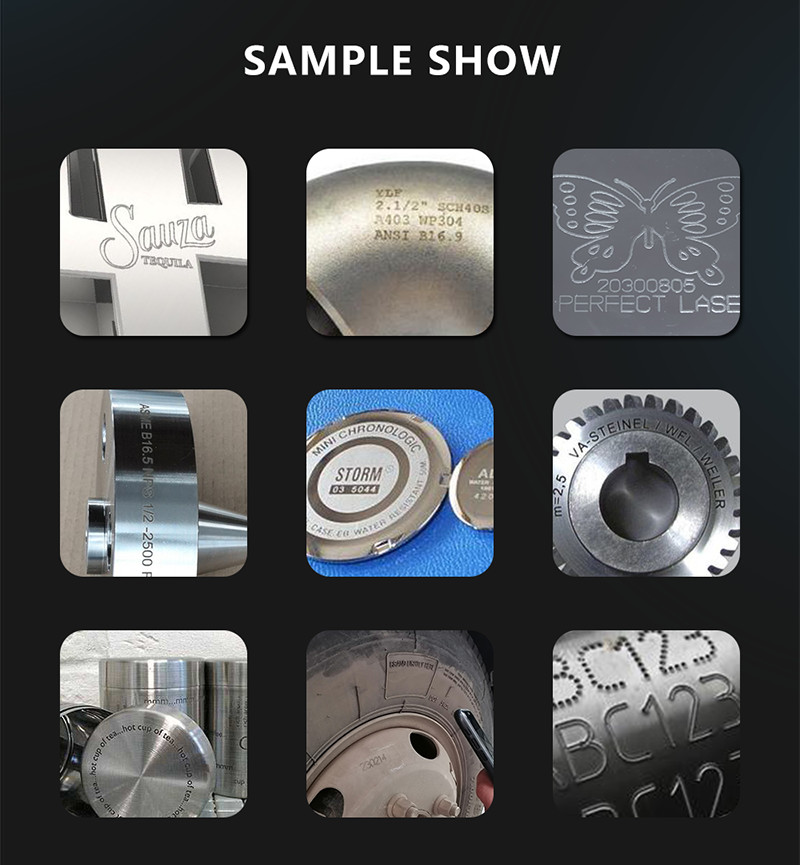

►Samples
► Technical Data
| Machine Name | Portable Handheld Integrated
Dot Peen Marking Machine |
| Model | PEQD-030H |
| Marking Depth | 0.02-1mm |
| Marking Speed | 3-5 characters / second |
| Marking Area | 40mm * 140mm/160mm * 80mm |
| Power Supply | AC220V/110V,50HZ |
| Compressed Air | 0.5Mpa |
| Air Consumption | 3L/S |
| Power Consumption | ≤400W |
| Operating Temperature | 1-40℃ |
| Relative Humidity | ＜90% |
| Pin Hardness | HRC92 |
| Weight | 30kg |
► Packaging & Delivery
1. Well-trained and disciplined packing team.
2. Sophisticated and professional logistic agent.
3. Prompt deliver at the very day.
4. After-sale service: Any questions or problems after receiving the product, please feel free to contact us. Problems would be solved for you immediately.
►Competitive Advantages
1. Good after-sales service, 24 hours online service.
2. Flexible and untraceable payment terms.
3. Free product consultation, program recommendation, proofing test,free after-sales service.
4. We provide high quality products with competitive price and fast delivery.
5. More than 20 years of experience in laser equipment research and development, production.
6. The products are exported to Germany, Norway, Poland, Finland,Spain, Britain, France, Russia, the United States, Brazil, Mexico, Australia, Japan, South Korea, Thailand, Indonesia, Uruguay and other countries.
