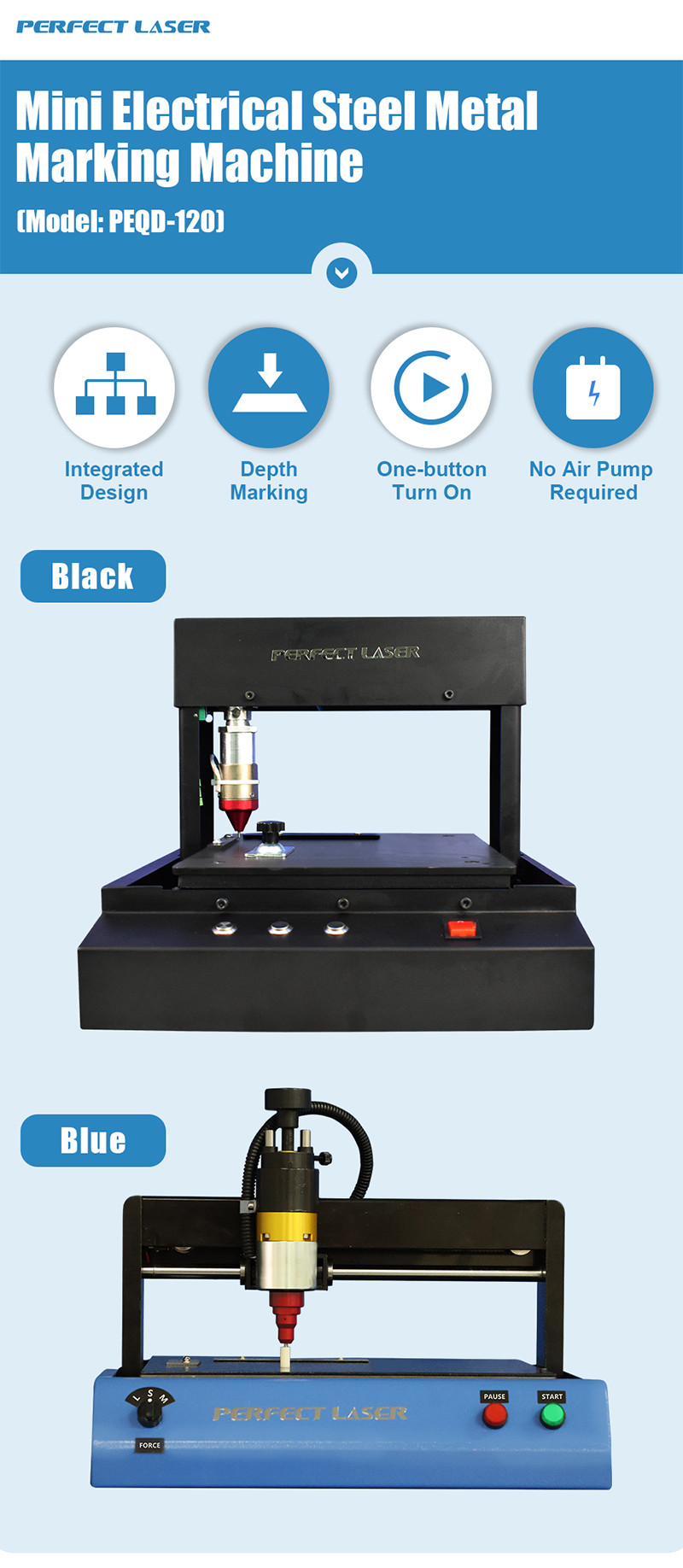

Steel Metal Electric Marking Machine For Nameplates and Signs
(PEQD-120)
►Product Introduction
The steel marking machine is an electric marking machine special design for signage and nameplates.
After power-on, the electromagnetic coil is rotated to generate a suction power, allowing the needle high frequency vibration to impact the workpiece, and realize the marking.
At the same time, the computer controls the movement of the needle, so that the dot matrix forms a line of characters and graphics on the workpiece.
►Product Features
1. It is wildly used to mark signs on nameplate and many work-pieces.
2.The steel marking machine adopts electric marking method, no need to work with air compressor or air pump. It is easy to use.
3.It can be applies to all metal or rigid plastic plate. It can mark rectangular, fan-shaped or round signs. The marking range is adjustable, the marking depth and speed is adjustable.
4. The machine can mark date, time, serial number, jumping numbers, letters, numbers automatically (auto-increment number).
5.It is equipped with WINDOWS operating system, the software editing function is powerful, easy to use.You can edit any characters, numbers, letters and graphics.
6.The metal marking machine is compatible with all general fonts in Windows word library. In addition, special characters can be added.
►Technical Data
| Machine Name | Steel Marking Machine |
| Model | PEQD-120 Black | PEQD-120 Blue |
| Marking Area | 190*120mm(Standard) | 200x150mm (Standard) 300x 200mm (Optional) |
| Machine Size (L*W*H) | 350×320×300mm(Standard) | 360×355×290mm(Standard) 400x405x290mm (Optional) |
| Machine Weight | 18kgs | 200×150 mm : 13 kgs 300×200 mm : 20 kgs |
| Falling Height | / | 15mm |
| Marking Speed | Up to 2-5 characters/s | 50mm/s |
| Marking Depth | 0.2-0.5mm | 0.05-1 (mm) |
| Needle Distance Requirements | Stainless steel 3mm Aluminum plate 1.5mm Copper plate 1.5mm Copper plate 1.5mm | 0.1-2mm |
| Needle Hardness | / | 93 HRA |
| Needle Distance | 1.5mm | 0.5-1(mm) |
| Voltage | 220V / 100W | 220V / 400W |
| Training | Perfect Laser offer professional User's Manual and training VCD |
| Guarantee | Perfect Laser offer 12 month guarantee |
►Application
1. Applicable Materials
The steel marking machine is suitable for metals and many hard plastics, such as:
stainless steel, iron, copper, brass, aluninum, hard plastic materials.
2. Applicable Industries
The steel marking machine is mainly used in electronic components, hardware tool products, electrical products, sensors, auto parts, precision equipment, medical equipment, high and low voltage electrical appliances and many other fields.

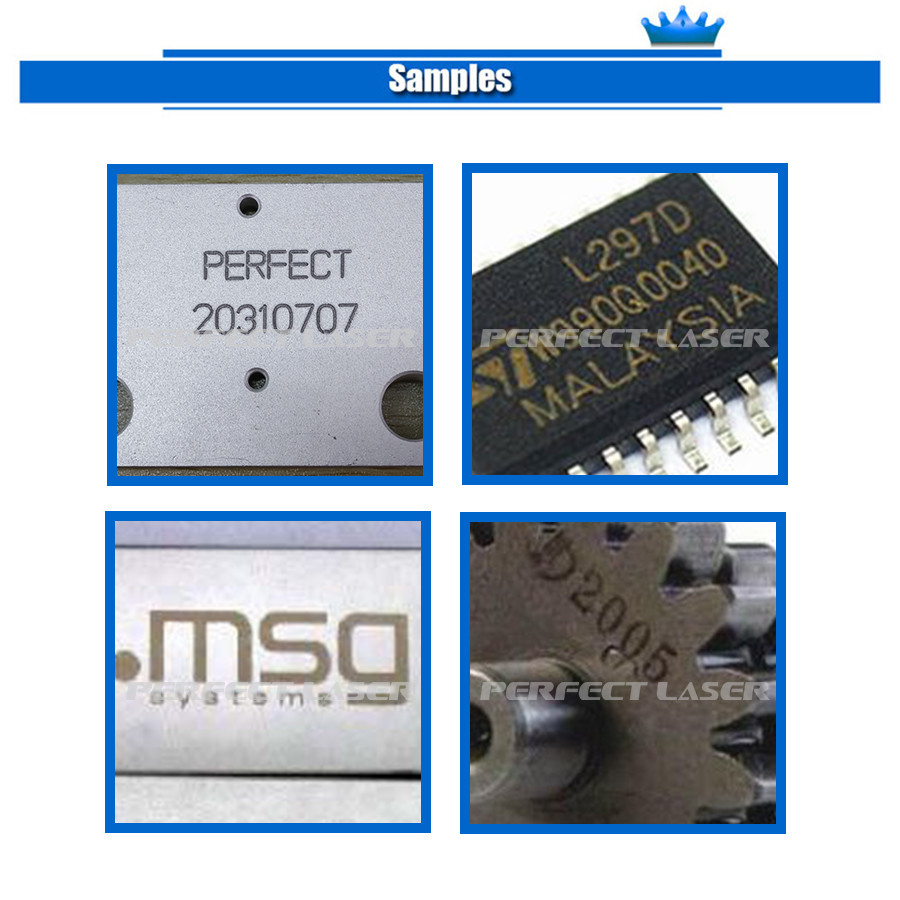

►Samples
► Packaging & Delivery
1. Well-trained and disciplined packing team.
2. Sophisticated and professional logistic agent.
3. Prompt deliver at the very day.
4. After-sale service: Any questions or problems after receiving the product, please feel free to contact us. Problems would be solved for you immediately.
►Competitive Advantages
1. Good after-sales service, 24 hours online service.
2. Flexible and untraceable payment terms.
3. Free product consultation, program recommendation, proofing test,free after-sales service.
4. We provide high quality products with competitive price and fast delivery.
5. More than 20 years of experience in laser equipment research and development, production.
6. The products are exported to Germany, Norway, Poland, Finland,Spain, Britain, France, Russia, the United States, Brazil, Mexico, Australia, Japan, South Korea, Thailand, Indonesia, Uruguay and other countries.
