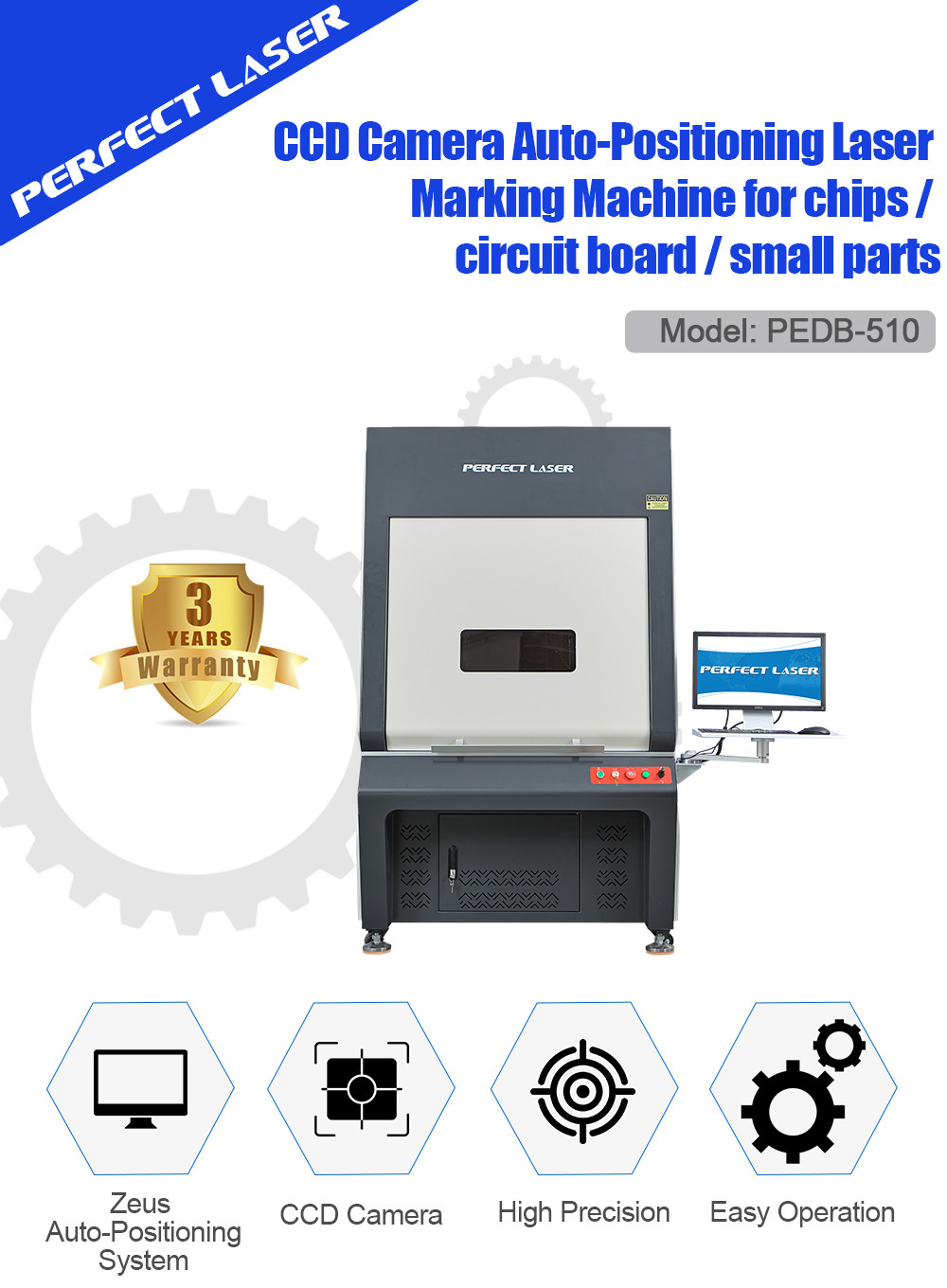

LCD Control Automatic CCD Camera Fiber Laser Marker Machine for Metals/Aluminum/Brass
(MODEL:PEDB-510)
★ Product Introduction
Perfect Laser’s fiber laser marking machine is an ccd camera fiber laser marker machine with electric shifting platform and Zeus CCD camera auto vision positioning system.
The positioning accuracy can reach to 0.02mm. It can complete the automatic positioning marking, more suitable for a variety of high-precision It is widely used for high-precision marking,such as: metals, aluminum, zinc, brass, alloy, plastic, and many other sensitive materials and PVC, etc.
★ Application
-
1. This fiber laser marking machine in the process of operation no pollution, no loss.
2. It adopts fully enclosed protection cover, which comply with the environmental protection standards. It also adopts the air purifier, in line with European CE standards.
3. Support AI, BMP, DST, DWG, DXF, DXP, LAS, PLT and many other picture formats.
4. It has higher heat resistance, high conversion efficiency and high output quality.

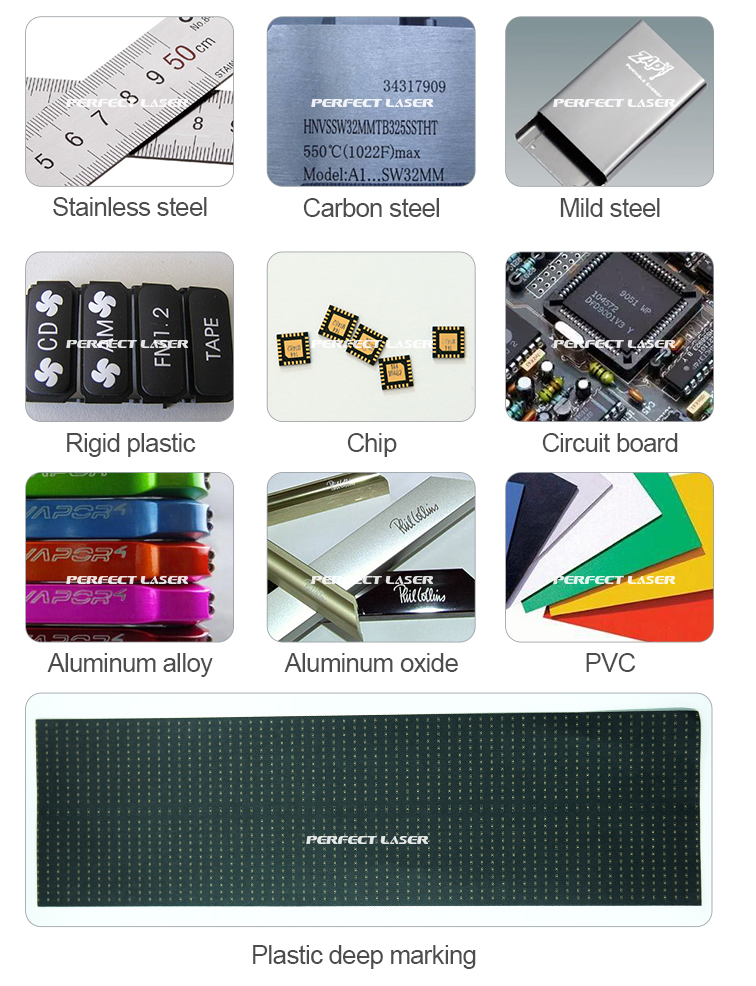

This fiber laser marking machine is widely used in all kinds of metal, stainless steel, carbon steel, low carbon steel, aluminum, zinc, brass, aluminum alloy, alumina, plastic, PVC and other sensitive materials of high precision marking, depth marking and laser drilling.
★Product Features
★ Technical Parameters
| Product Name | CCD Camera Automatic Positioning High-precision fiber laser marker machine |
| Model No. | PEDB-510 |
| Positioning system | With electric shifting marking platform +CCD camera auto positioning system + Zeus system |
| Type of laser source | Optical Fiber Laser Source (Brand: Mopa / Raycus / Max / IPG) |
| Laser power | 20w / 30w / 50w / 60w /100w |
| Play the scale surface | 200x200mm - 400x400mm(Can be customized) |
| Camera pixel | Five million |
| Camera positioning accuracy | 0.02mm |
| Standard marking object placement requirements | Within ± 20 degrees of inclination |
| Camera software | 7.2G |
| Camera software environment | Win7 32 / 64 bit for computer system |
| soft dog | The marking software and the camera software each have one dongle |
| Support drawing format | AI / Bmp / Dst / Dwg / Dxf / Dxp / Las / Plts |
| Power of the whole machine | 500 Watts |
| Training | VCD training |
| Guarantee Time | 24 month |
★ Packaging & Delivery
1. Prompt deliver at the very day.
2. Well-trained and disciplined packing team.
3. After-sale service:. Any questions or problems after receiving the product, please feel free to contact us. Problems would be solved for you immediately.
4. Sophisticated and professional logistic agent.
★Competitive Advantages
1. 100% custom pass guaranteed.
2. Our products have been exported to Germany, Norway, Poland, Finland, Spain, UK, France, Russia, USA, Brazil, Mexico, Australia, Japan, Korea, Thailand, Indonesia, Uruguay and many other countries.
3. Flexible and Untraceable payment terms.
4. Good after-sale service.
5. We offer high quality products at competitive price in quick delivery.
