1000W Metal Sheet Automobile Steel Plate Aluminum Alloy Cutting Fiber Laser Cutter Machine
(PE-F1000-3015)
►Product Introduction
As the featured product of Perfect Laser, PE-F3015 laser metal cutting machine for sale is a very hot-sale fiber laser cutter containing the overall gantry designed machine tool, high-strength aluminum beam, Japan servo motor, precision liner guide rail and ball screw transmission system. This series of machines have a high reputation for good rigidity and stable performance in the global market. The laser metal cutting machine for sale is especially good at aluminium cutting,CS cutting and SS cutting.
►Product Features
1. High cutting speed, fiber laser cutting machine than other cutting speed is 2-3 times higher.
2. Simple operation, plug and play, easy to use.
3. Good cutting quality, small laser spot, processing surface is not easy to deformation.
4. Energy saving and high efficiency, photoelectric conversion rate can reach 25-30%.
5. Low maintenance cost, long life. The optical fiber light source with advanced German technology has a service life of up to 100,000 hours.
►Application
1. Applicable materials
The laser metal cutting machine for sale is mainly used for rapid cutting of various metal materials such as carbon steel, stainless steel, aluminum alloy, titanium alloy, silicon steel, galvanized plate, aluminum, copper and so on.
2.Applicable industries
The laser metal cutting machine is mainly applied in rail transit, construction machinery, food machinery, textile machinery, air-conditioning manufacturing, elevators, construction machinery, environmental protection machinery, advertising decoration and other industries.
►Technical Data
| Model | PE-F200 -3015 | PE-F300 -3015 | PE-F500-3015 | PE-F800 -3015 | PE-F1000 -3015 | PE-F2000 -3015 |
| Laser Power | 200W | 300W | 500W | 800W | 1000W | 2000W |
| Max. Cutting Thickness | 1~2mm | 2~3mm | 3~5mm | 6~10mm | 8~12mm | 16~20 mm |
| Work Table Max. Load | 700 KGS | 700 KGS | 800 KGS | 900 KGS | 1000 KGS | 1000KGS |
| Laser Type | Imported Fiber Laser |
| Laser Technology | Germany Technology |
| Working area | 3000 x 1500 mm |
| X axis Stroke | 3000 mm |
| Y axis Stroke | 1500 mm |
| Z axis Stroke | 150 mm |
Max. Cutting Speed
(Carbon Steel) | 12m/min (up to materials) |
| Transmission Way | Imported ball screw |
| Table-Driven System | Japanese Panasonic Servo Motor & Driver |
| Focus Method | Dynamic Following and Automatic Adjust Focus |
| Location Precision | ≤±0.05 mm |
| Re-Location Precision | ±0.02 mm |
| Max. Moving Speed | 100m/min |
| Laser Wavelength | 1070nm |
| Minimum Line Width | ≤0.1mm |
| Supporting Format | PLT, DXF, BMP, AI |
| Power Demand | 380V/50HZ |
| Control Method | Offline Movement Control |
| Control Software | Perfect Laser Professional Laser Cutting Software |

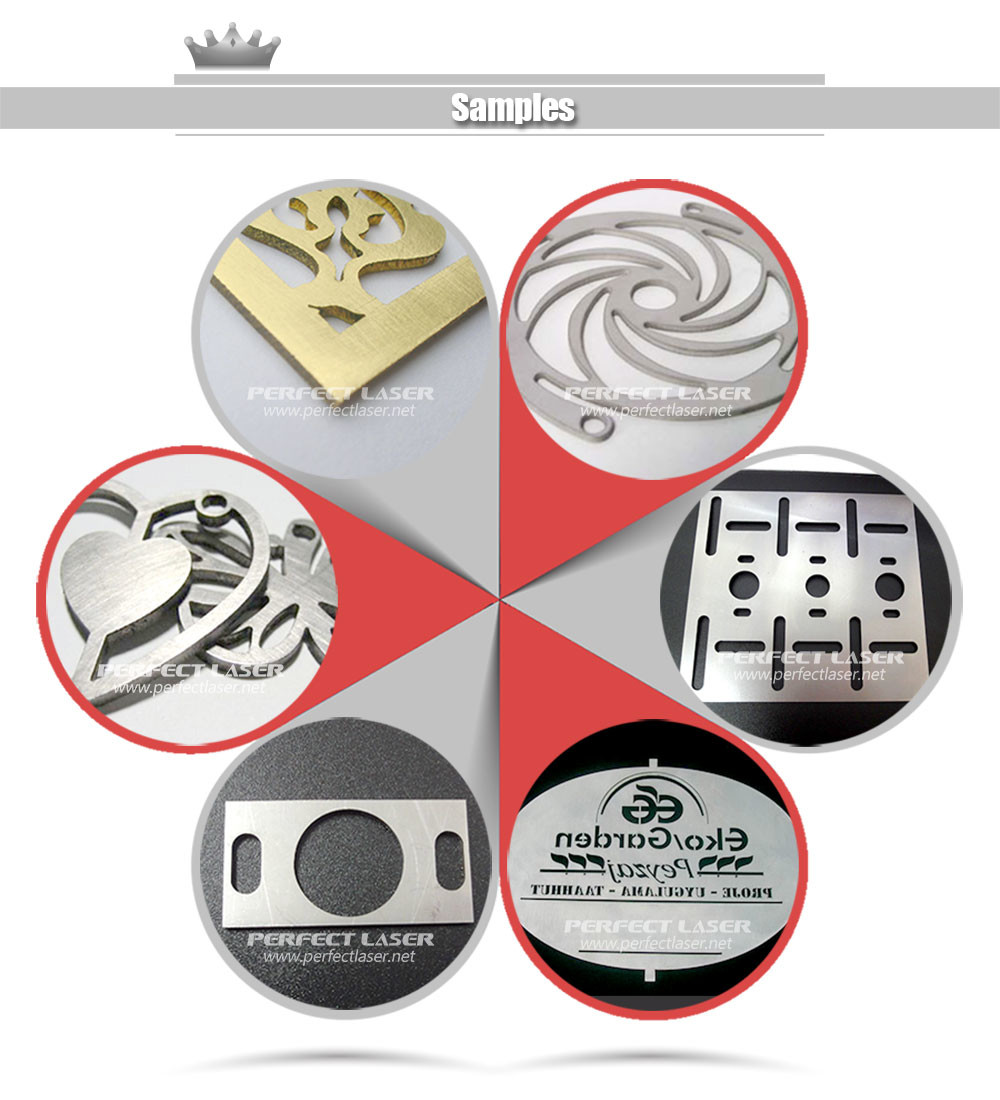

►Samples
►Packaging & Delivery
1. After-sale service: Any questions or problems after receiving the product, please feel free to contact
us. Problems would be solved for you immediately.
2. Prompt deliver at the very day.
3. Well-trained and disciplined packing team.
4. Sophisticated and professional logistic agent.
►Competitive Advantages
1. Flexible and Untraceable payment terms.
2. Good after-sale service.
3. 100% custom pass guaranteed.
4. Our products have been exported to Germany, Norway, Poland, Finland, Spain, UK, France, Russia,
USA, Brazil, Mexico, Australia, Japan, Korea, Thailand, Indonesia, Uruguay and many other countries.
5. We offer high quality products at competitive price in quick delivery.
