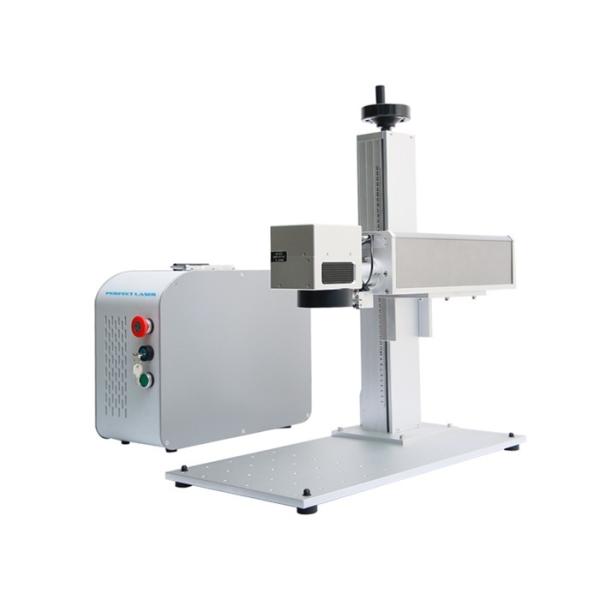

20W Portable Metal Stainless Steel Fiber Laser Engraving And Marking Machine
20W Portable Metal Stainless Steel Fiber Laser Engraving Machine Laser Marker
(Model:PEDB-400B)
★ Products Description
As a leading laser equipment manufacturer in China,Perfect Laser (Wuhan) Co.,Ltd.has a complete research and development system.Perfect Laser PEDB-400B has become the mainstream marking method recently due to the maintenance free and less energy consumption.The engraving accuracy is related to the quality of laser marking machine products.The marking items of Perfect laser marking machine have high precision,fine patterns,clear marks,lasting and beautiful.High efficiency,very suitable for mass group processing.

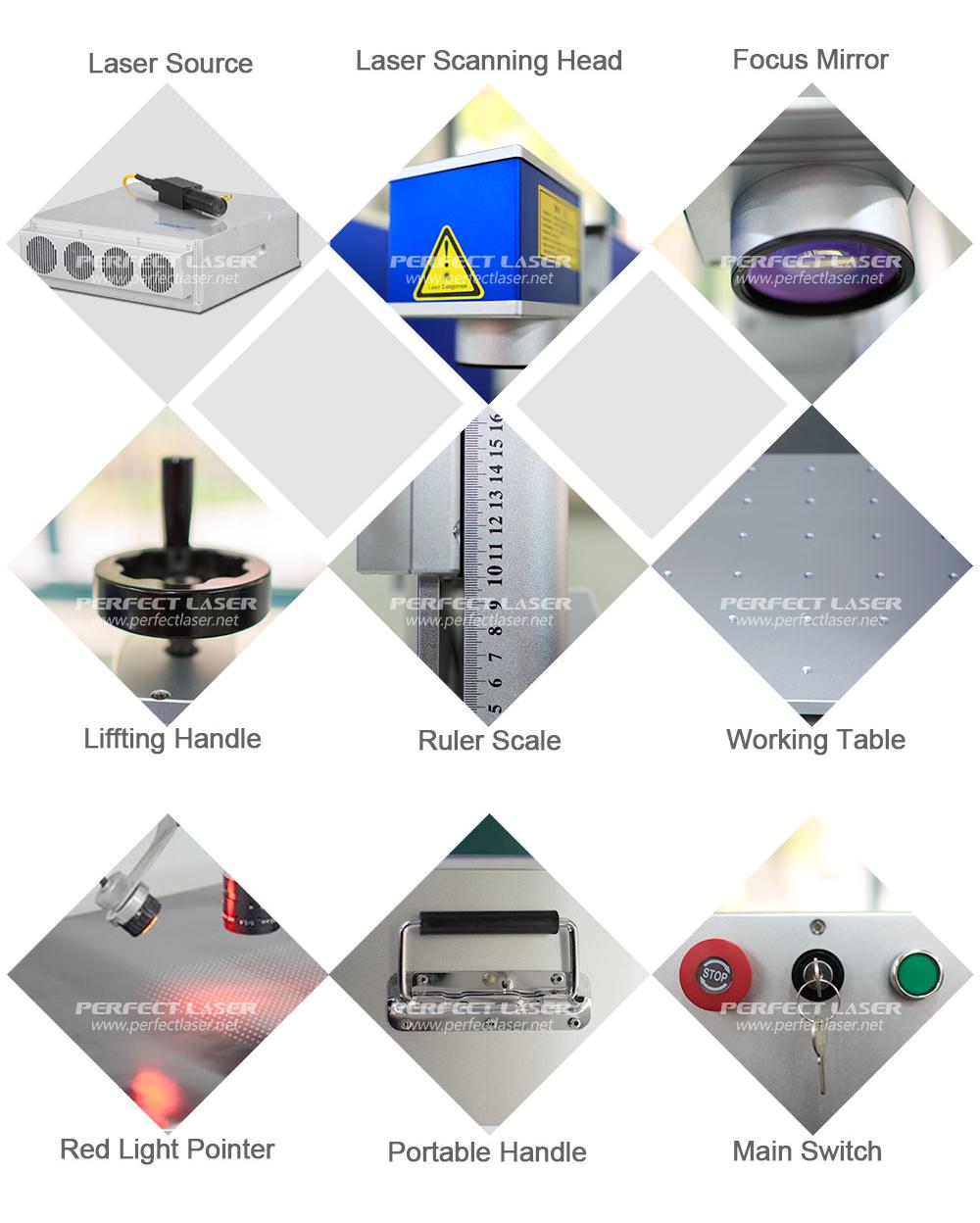

★ Machine Details
★ Product Features
1. Perfect Marking Results
The machine can meet user requirements of the various elaborate patterns in tiny surface,ragarded as a veritable "King Laser Marker".
2. High-Rate Of Electrical-Optical Conversation
No power coupling loss,saving operating costs,the laser device has 100,000 hours life time,maintenance-free and no consumables.
3. High Speed High Efficient
It significanly improves the marking quantity at the same time,accelerate user's return of the investment.
4. Intergrated Structure
Compact,Small,Desktop,Easy Delivery.
★ Application
1.Electron Component:Resistors,capacitors,chips,printed circuit boards,computer keyboards.
2.Instruments And Apparatus:Panel signs,precision equipment,etc.
3.Hardware:Cutting tools,tools,measuring tools,cutting tools,etc.
4.Auto Parts:Piston,piston ring,gear,shaft,bearing,clutch,lamp,etc
5.Daily Necessities:Crafts,zipper,key chain,sanitary ware,etc.
6.Jewellery:Rings,gold and silver ornaments,etc.
7.Food And Beverage Packaging:All kinds of plastic packaging,etc.
★Technical Data
| Model No | PEDB-400B |
| Type | Desktop |
| IPG Series | Pulsed,High Energy Ytterbium Fiber Laser |
| Mode Of Operation | Pulsed |
| Polarization | Random |
| Standard Output Power | 20W - 50W |
| Central Emission Wavelength | 1060-1070 nm ,Q-switched operation Output power adjustment range 10%-100% |
| Emission Bandwidth(FWHM) | <10 nm |
| Long-term Average Power Instability | <5% |
| Pulse Width, (FWHM) | 100 ns |
| Laser Switching On Time | 180 μsec |
| Laser Switching OFF Time | 180 μsec |
| Pulse Repetition Rate* kHz | 20-80 kHz |
| Energy Per Pulse (PRR = 20kHz) | 0.95mJ |
| Typical Beam Quality, M2 | <1.8 |
| Output Fiber Delivery Length | 3m |
| Operating Voltage | 220V |
| Max. Power Consumption | 600W |
| Net Dimensions | 80*38*72cm |
| Net Weight | 53kgs |
| Gross Weight | 70kgs |
| Scanning Speed | 0-10000mm/s |
| Marking Speed | 0-7000mm/s |
| Marking Size | 110mm×110mm (F-theta 160) |
| Spot Size | ≤40micron(F-theta 160) |
| Cooling Unit | Air cooled |
| Pilot Laser | 650nm diode laser, visible red light for marking guide |
| Continuous Working Time | ≥16h |
| Humidity | 45~85%(no condensation) |
| Operating Temperature | 0~40℃ |
| Control Units | Laser Mark(English Vision) |
★ Sample Show
★ Packaging & Delivery
1. Well-trained and disciplined packing team.
2. Sophisticated and professional logistic agent.
3. Prompt deliver at the very day.
4. After-sale service:Any questions or problems after receiving the product, please feel free to contact us. Problems would be solved for you immediately.
★ Competitive Advantages
1. Our company has a professional after-sales team,will provide 24 hours of timely after-sales service.
2. Good packaging technology.Product packaging is guaranteed to ensure the safety of the product to the designated receiving place.
3. Flexible and untraceable payment terms.
4. We provide high quality products with competitive price and fast delivery.
5. More than 20 years of experience in laser equipment research and development,production.
6.Its products sell well in 180 countrie.
