100w 200w Hand-Held Metal Iron Stainless Aluminium Fiber Laser Paint Removal Machine
(Model:PE-200R)
★ Product Introduction:
The PE-200R Perfect Laser laser paint removal machine is a CE certified laser cleaning machine, which is equipped with a 5-meter long optical fiber cable for handheld use. Laser cleaning is environment-friendly, chemical free, non-contact and easy to use.
★ Product Features:
1. With the most advanced German technology, the fiber laser has excellent quality and can be used for 8-10 years without any consumables or maintenance.
2. In order to protect the living environment of our future generations, we need to reduce pollution. The perfect laser cleaner uses laser to clean rust and coatings, without any input or output of chemical substances, and is completely environmentally friendly.
3.The user only needs to aim the laser cleaning head at the object and move it to clean the rust or paint area until it is completely cleaned.
★ Application:

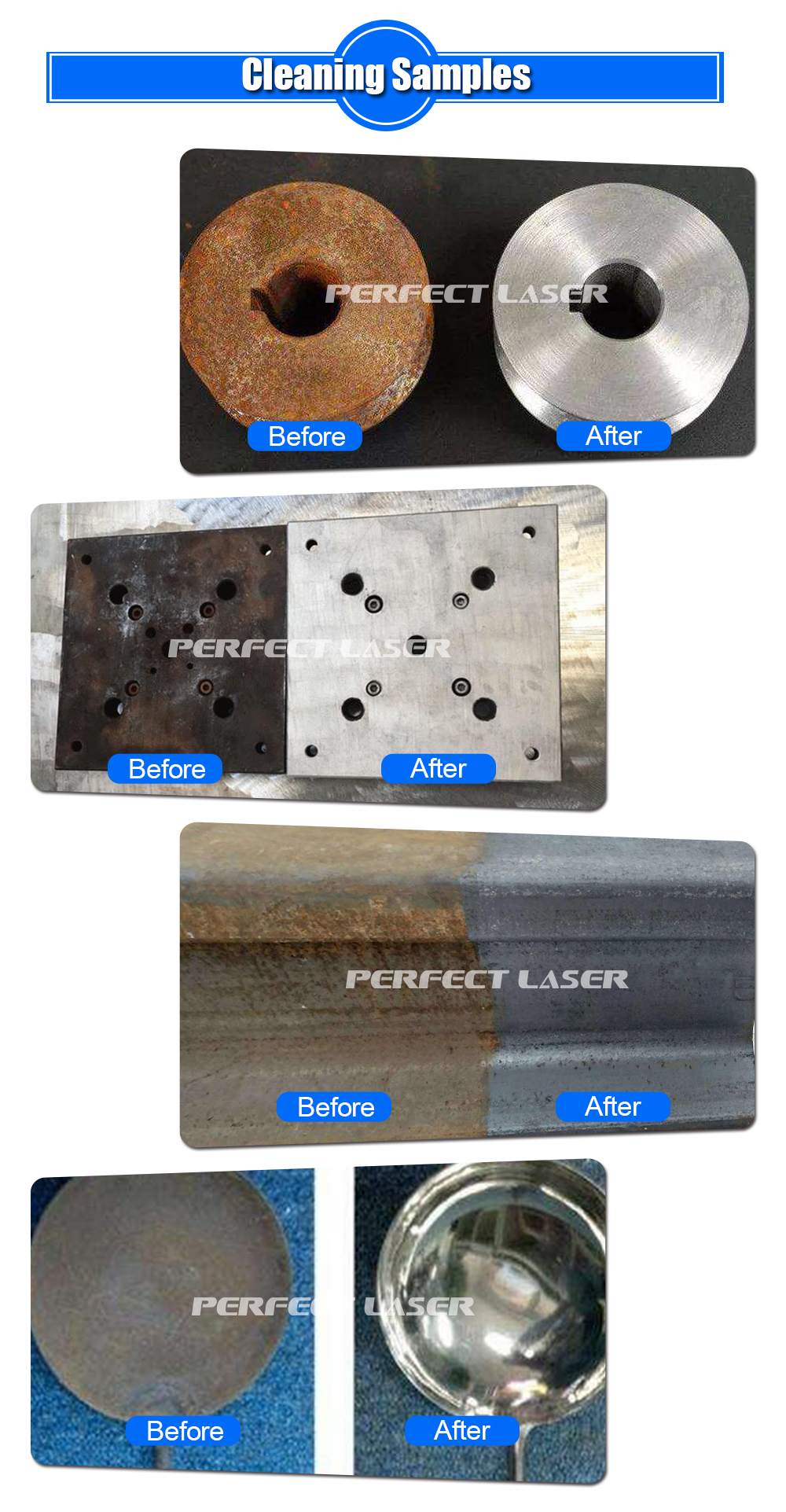

This laser paint removal machine is widely used in shipbuilding, auto parts, rubber molds, high-end machine tools, tire molds, rails, environmental protection industries, etc. Such as rust removal, paint removal, oil removal, oxide removal, screw cleaning, tire mold cleaning, welding seam cleaning, etc.
★ Technical Parameters:
| Model | PE-200R Laser Paint Removal Machine |
| Power Supply | Voltage Single-phase 220V±10%, 50/60Hz AC |
| Whole Machine Power Consumption | ≤2000W |
| Placement Environment | Flat, No Vibration, No Impact |
| Working Temperature Environment | 0℃～40℃ |
| Working Humidity | ≤80% |
| Size | 670mm×1100mm×1150mm |
| Weight | 150 Kgs |
| Optical Fiber Length | 5 Meters (10 Meters Can Be Customized) |
| Washing Head Weight | 2 Kgs |
| Movement mode | Push |
| Scanning Width | 10-80mm |
| Average Laser Power | ≥200 W |
| Output Power Instability | ＜3% |
| Power Adjustment Range (%) | 10-100 (Adjustable Gradually) |
| Focusing Spot Diameter | 0.1mm |
| Center Wavelength | 1064nm |
| Modulation Frequency | 10K-50K (Adjustable Gradually) |
| Cooling Method | Water Cooling |
| Working Temperature | 5℃-40℃ |
| Warranted | 12 month |
| Training | Perfect Laser offer VCD training for the machine. Engineer Oversea training is also available. (Charged additionally) |
★ Machine parts:
★ Packaging & Delivery:
1. Prompt deliver at the very day.
2. Well-trained and disciplined packing team.
3. After-sale service:. Any questions or problems after receiving the product, please feel free to contact us. Problems would be solved for you immediately.
4. Sophisticated and professional logistic agent.
★Competitive Advantages:
1. 100% custom pass guaranteed.
2. Our products have been exported to Germany, Norway, Poland, Finland, Spain, UK, France, Russia, USA, Brazil, Mexico, Australia, Japan, Korea, Thailand, Indonesia, Uruguay and many other countries.
3. Flexible and Untraceable payment terms.
4. Good after-sale service.
5. We offer high quality products at competitive price in quick delivery.
