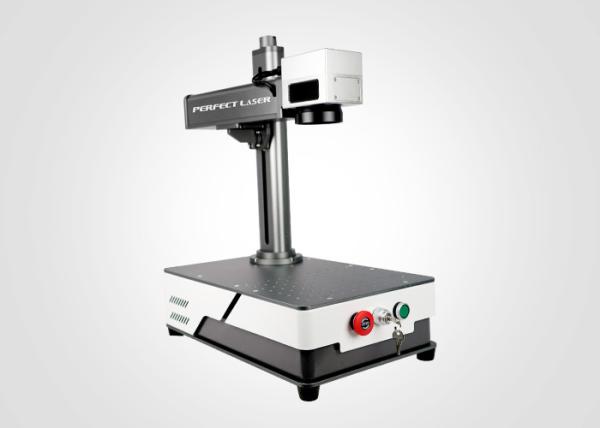

20W-100W Max Raycus Ipg Jpt Mopa Metal Stainless Steel Aluminium Plastic Fiber Laser Marking Machines
(Model:PEDB- 100A)
★ Product Introduction:
Perfect Laser is a prestigious manufacturer of fiber laser marking machines. We have many different models and specifications of laser marking machines, such as desktop, standing, mini, hand-held, color laser marking machines and so on. The fiber laser marking machine adopts high-quality fiber laser and ultra-high-speed scanning galvanometer system.The fiber laser marking machine has high electromechanical and optical conversion efficiency.The laser marker adopts air cooling, the whole machine is small in size, the output beam quality is good, the marking accuracy is high, the service life is up to 100,000 hours, and it is maintenance-free.
★ Product Features:
1.High efficiency: The marking speed is up to 8000m/s, and the speed is fast. When used with a conveyor belt, it can achieve efficient flow production.
2.Low cost: Compared with traditional ink jet coding, it has high electro-optical conversion rate, no consumables, no wearing parts, maintenance-free, non-toxic, non-polluting, and saves processing costs.
3.Long service life: The imported laser ensures faster marking speed and marking consistency, 24-hour continuous and stable processing, and maintenance-free time of 100,000 hours.
4.Easy to operate: The man-machine dialogue interface is friendly, the marking process and effects are controllable and visible, and the operation is simple and easy to use, eliminating the trouble of frequent changes of operators.
5.Permanent marking: serial number (barcode, serial number, batch number, date) can be automatically generated, which is used to realize product marking for identification, mass production and easy traceability. Smuggling effect.
★ Application:

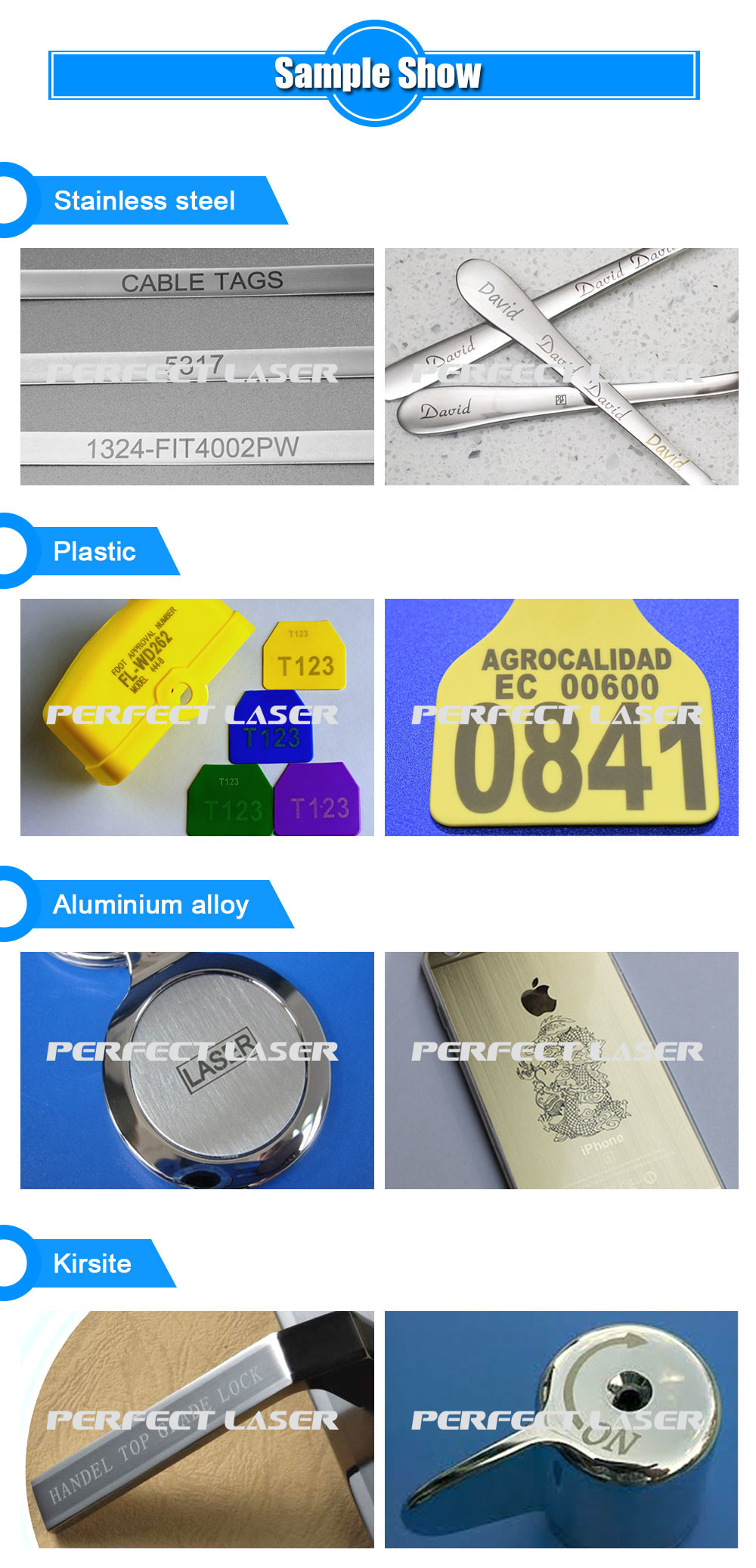

This laser marking machines is mainly applied to the higher marking precision such as mobile phones buttons, plastic translucent keys, electronic components, integrated circuits (IC), electrical appliances, communication products, sanitary ware, tools, accessories, knives, eyeglasses and clocks, jewelry, auto parts, luggage buckle, cooking utensils, stainless steel products and other industries.
★ Technical Parameters:
| Product Name | Mini Small Desktop Fiber Laser Marking Engraving Machine |
| Model | PEDB-100A |
| Output Power | 20 Watts |
| Pulse Repetition Frequency | 27-60khz |
| Marking Range | 100-150mm (Optional) |
| Marking Speed | ≤10000mm/s |
| Marking Depth | ≤1mm(Depending On Power and Time) |
| Laser Wavelength | 1064±5nm |
| Beam Mass M2 | ≤1.4 |
| Output Power Stability | <3% |
| Repeatability Precision | ±0002 |
| Minimum Marker Line Width | 0.1mm |
| Minimum Character Height | 0.15mm |
| Cooling Mode | Air cooling |
| System Power Supply | 500W1220V/50Hz (110V Can Be Connected) |
| Temperature and Humidity | 0-40℃,30%RH-85%RH |
| Support System | Windows Operating System |
★ Packaging & Delivery:
1. Prompt deliver at the very day.
2. Well-trained and disciplined packing team.
3. After-sale service:. Any questions or problems after receiving the product, please feel free to contact us. Problems would be solved for you immediately.
4. Sophisticated and professional logistic agent.
★Competitive Advantages:
1. 100% custom pass guaranteed.
2. Our products have been exported to Germany, Norway, Poland, Finland, Spain, UK, France, Russia, USA, Brazil, Mexico, Australia, Japan, Korea, Thailand, Indonesia, Uruguay and many other countries.
3. Flexible and Untraceable payment terms.
4. Good after-sale service.
5. We offer high quality products at competitive price in quick delivery.
Product Tags:
|
|
IPG JPT MOPA Fiber Laser Marking Machine 220V For Metal Stainless Steel Aluminium Plastic Images
|
