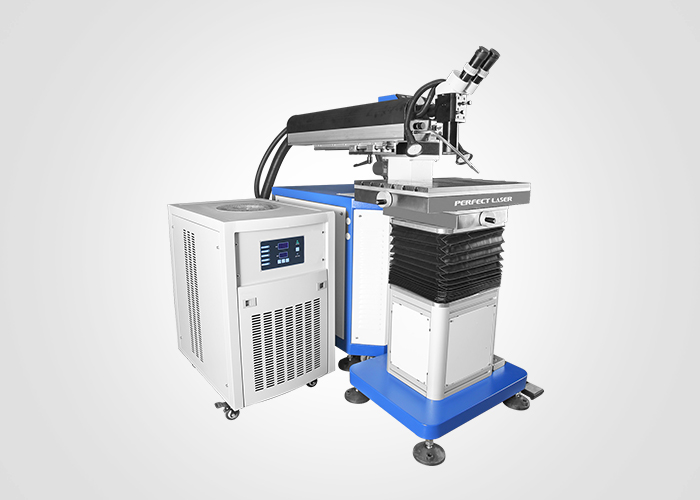

200W-400W Water Cooling Copper Alloy Beryllium Copper Metal Laser Welding Machines For Mold Repair With Microscopes
(Model:PE-W200M 300M 400M)
★ Product Introduction of mold welder:
The laser welding machines for mold repair is a precise welding technology with concentrated high-heat energy of laser, which effectively processes the welding and repairing of some tiny damaged parts of the mold, such as: cracks, blisters, chipping, mold flashing, sealing edges, etc. of various molds. Repair of tiny parts. This series of products is specially designed for the electronics industry and jewelry welding design. Weld mold is improved by the introduction of advanced German technology. Laser welding mold repair can be used for gold and silver jewelry, electronic components, air welding, welding, etc.
★ Product Features of mold welder:
1) Accurately and precision welding machine, can welding small and complex font and LOGO, fast speed, no color difference after welding, no trace, no need to handle, beautiful appearance.
2) No raised welding spot on welding surface. Do not need polishing grinding process, save work time. Appearance is beautiful.
3) Laser welding Processing without noise, non-pollution
4) Specific to advertising industry, special long light path, 360 degrees of arbitrary rotation, larger scale range.
5) Welding machine with a CCD monitor, the welding effect is more clear and intuitive.
★ Application of mold welder :
1.Applicable materials: high alloy steel, hot forging high alloy steel, nickel steel, high-grade steel, copper alloy, beryllium copper, high strength and toughness aluminum alloy and other metal materials.
2.Applicable industry:digital products , mobile phones, toys, automobiles, motorcycles and other mould marking industries.
★ Technical Parameters of mold welder:
| Type | PE-W200M | PE-W300M | PE-W400M |
| Three axis table | X=250mm,Y=180mm |
| Table capacity | ≤200KG |
| Machine battery | 220V±10%/50/60Hz | 380V±10%/50/60Hz | 380V±10%/50/60Hz |
| Laser type | Nd:YAG pulse xenon lamp |
| Rotary Device | Optional |
| Spot adjusting range | 0.1～3mm |
| Peak wavelength | 1064nm |
| Pulse width | ≤20ms |
| Rated output power | 180W | 270W | 360W |
| Maximum laser power | 200W | 300W | 400W |
| Pulse frequency | ≤50Hz |
| Laser output focal length | 100mm |
| Laser cooling | Water cooling |
| Monitor | Microscope(rotate 360º) |
| Protective gas | 1(argon) |
| Cold water capacity | 2700W | 3500W | 5000W |
| Wire diameter | 0.1mm~0.6mm | 0.1mm~0.8mm | 0.1mm~1.0mm |
| Dimension | Main engine,1250*580*1200mm Chiller,700*500*900mm |
★ Machine parts of mold welder:
★ Packaging & Delivery:
1. Prompt deliver at the very day.
2. Well-trained and disciplined packing team.
3. After-sale service:. Any questions or problems after receiving the product, please feel free to contact us. Problems would be solved for you immediately.
4. Sophisticated and professional logistic agent.
★Competitive Advantages:
1. 100% custom pass guaranteed.
2. Our products have been exported to Germany, Norway, Poland, Finland, Spain, UK, France, Russia, USA, Brazil, Mexico, Australia, Japan, Korea, Thailand, Indonesia, Uruguay and many other countries.
3. Flexible and Untraceable payment terms.
4. Good after-sale service.
5. We offer high quality products at competitive price in quick delivery.
