The 1400x1000mm Working Format Engraving Speed Is 0-60000 m m / min Of Acrylic Paper Affordable Laser Engraver
(Model:PEDK-140100II)
★ Product Introduction:

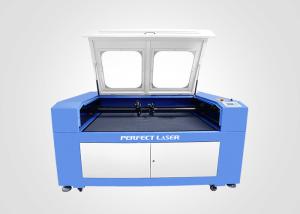

The affordable laser engraver produced by Perfect Laser is a new laser engraving and cutting machine with dual laser cutting heads and working surface of 1400×1000mm. Wide practicability, double laser cutting head can make work efficiency greatly improved, affordable laser engraver with exhaust fan and exhaust pipe, with observation window, the production process will not bring any harm to the operator's body.
★ Product Features:
1. The operating platform uses a professional thickening belt and honeycomb workbench, the affordable laser engraver body is firm, more durable.
2. Using double laser cutting head, can be cut or carved simultaneously, high work efficiency.
3. Affordable laser engraver are more suitable for materials of large thickness, such as wood, density plates, flax, etc.
4. Multiple file formats are supported, such as BMP, HPGL, JPEG, GIF, TIFF, PCX, TAG, DST, PLT, DXF, etc.
5. Affordable laser engraver can import files through the U disk, directly through the LCD display adjustment parameters, the operation is simpler.
6. With the "over-current protection" function, to use more secure.
7. With an observation window and using a thickened acrylic material, the machine will automatically stop working when the operators open the cover plate to ensure the safety of the operator.
★ Application:
Affordable laser engraver can apply for a wide range of carving or cutting work, and suitable for wood, paper, PVC, acrylic, rubber, cloth, paper, two-color plates and other non-metallic materials.
★ Technical Parameters:
| Model | PEDK-140100(II) Affordable laser engraver |
| Working Area | 1400x1000mm |
| Laser Power | 100W(Standard) 60W/80W/130W/150W/180W(Optional) |
| Laser Type | Hermetic and Detached Co2 Laser Tube |
| Engraving Speed | 0-60000mm/min |
| Cutting Speed | 0-10000mm/min |

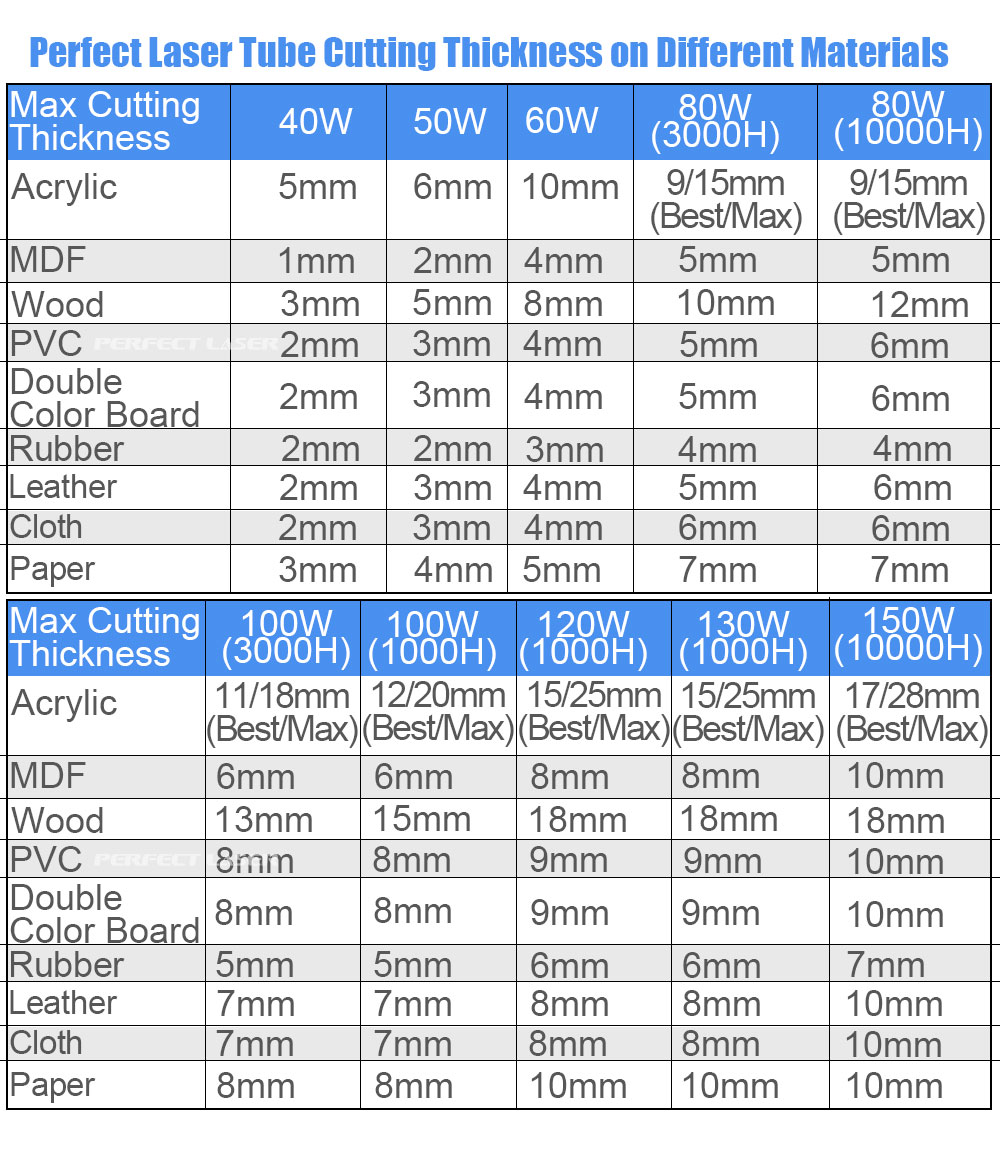

| Cutting thickness | 0-25mm Acrylic (others determined by materials) |
| Repeat Location Accuracy | +/-0.0125mm |
| Driving mode | stepper motor |
| Position system | Red dot |
| Interface | USB |
| Voltage | AC220V/50HZ or 110V/60HZ or depend on customer |
| Machine Power | ≤1000W |
| Controlling System | CNC Professional Control System |
| Support Graphics Mode | BMP,HPGL,JPEG,GIF,TIFF,PCX,TAG,DST, PLT,DXF etc. |
| Cooling Mode | Circulation Water Cooling and Protection System |
| Auxiliary Devices | Exhaust Fan and Exhaust Pipe |
| Cutting Platform | Professional Thickening Strip or Honeycomb Work Table |
| Power Control Mode | Laser Energy Combining Movement Control System |
| Software | Professional Laser Engraving & Cutting Software(Reader Software) |
| Operating temperature | 0-45℃ |
| Operating humidity | 5-95% |
| Packing | Standard wooden box |
| Operation | Detailed Video to teach customer how to operate the machine |
| Packing Size | 2.2*1.8*1.2m , 500 kgs |
★ Machine parts:
★ Packaging & Delivery:
1. Prompt deliver at the very day.
2. Well-trained and disciplined packing team.
3. After-sale service:. Any questions or problems after receiving the product, please feel free to contact us. Problems would be solved for you immediately.
4. Sophisticated and professional logistic agent.
★Competitive Advantages:
1. 100% custom pass guaranteed.
2. Our products have been exported to Germany, Norway, Poland, Finland, Spain, UK, France, Russia, USA, Brazil, Mexico, Australia, Japan, Korea, Thailand, Indonesia, Uruguay and many other countries.
3. Flexible and Untraceable payment terms.
4. Good after-sale service.
5. We offer high quality products at competitive price in quick delivery.
