CO 2 Glass Laser Tube 20mm Cutting Depth Advertising Craft Laser Pattern Cutter
(Model:PEC-0909)
★ Product Introduction
Laser pattern cutter PEG-0909 is mainly used for cutting knife template. Panasonic servo motor and driver can be selected to achieve faster cutting speed and higher cutting accuracy. The maximum cutting depth is 22mm, which meets the cutting requirements of most customers. Provide professional after-sales service, training instructions and videos, so that customers can better grasp the use of the method, is a practical product without worries.
★ Product Features
1. Laser pattern cutter adopts ball screw transmission system imported from Germany, linear guide rail from Taiwan and servo motor imported from Japan (optional), the performance is more stable and the precision is higher.
2. Operating cost is low, laser pattern cutter uses compressed air directly cutting, no need to invest additional inert gas device, saving production costs.
3. Laser pattern cutter support a variety of file formats, such as HPGL,PLT,AI,DXF, etc., while supporting CorelDraw, AutoCAD, Photoshop software, just import the cutting file, the cutting machine will automatically start to work, simple and convenient operation.
4. Using double laser head coaxial cutting technology, laser head position can be moved freely, can also be converted to a single head operation, to adapt to the diversity of cutting targets, high practicability.
5. With a perfect after-sales service system, to provide professional machine instructions and machine training video.
★ Application
Suitable for all kinds of non-metallic materials, such as wood, MDF, plywood, acrylic, bamboo, etc. laser pattern cutter is widely used in advertising, arts and crafts, packaging industry.
★ Technical Parameters
| Model | PEC-0909 | PEC-1215 | PEC-1218 |
| Cutting Table Size | 900×900mm | 1200×1500mm | 1200×1800mm |
| Laser Type | CO2 Glass Laser Tube |
| Lifetime of Laser Tube | W8:≥10000 Hours W6:>15000 Hours |
| Cooling Mode | Water Cooling and Protection System |
| Cutting Speed | 0-6000mm/min |
| Repeated Position Precision | ±0.01mm |
| Maximum Cutting Depth | 22mm |
| Cutting Width | 0.35mm - 0.75mm Adjustable >0.75mm Adjustable |
| Support Format | HPGI,PLT,AI,DXF etc. |
| Controlling Software | Hangzhou Times |
| Fixture Type | Pneumatic |
| Compatible Software | Core Draw,Auto CAD,Photoshop |
| Driving System | Standard:Domestic Motor Optional:Japan Panasonic Servo Motor and Drive |
| Machine Power | ≥7000W |
| Working Voltage | AC 220V(+/10%)50-60Hz |
| Operating Temperature | 0-45℃ |
| Operating Humidity | 5-95% |

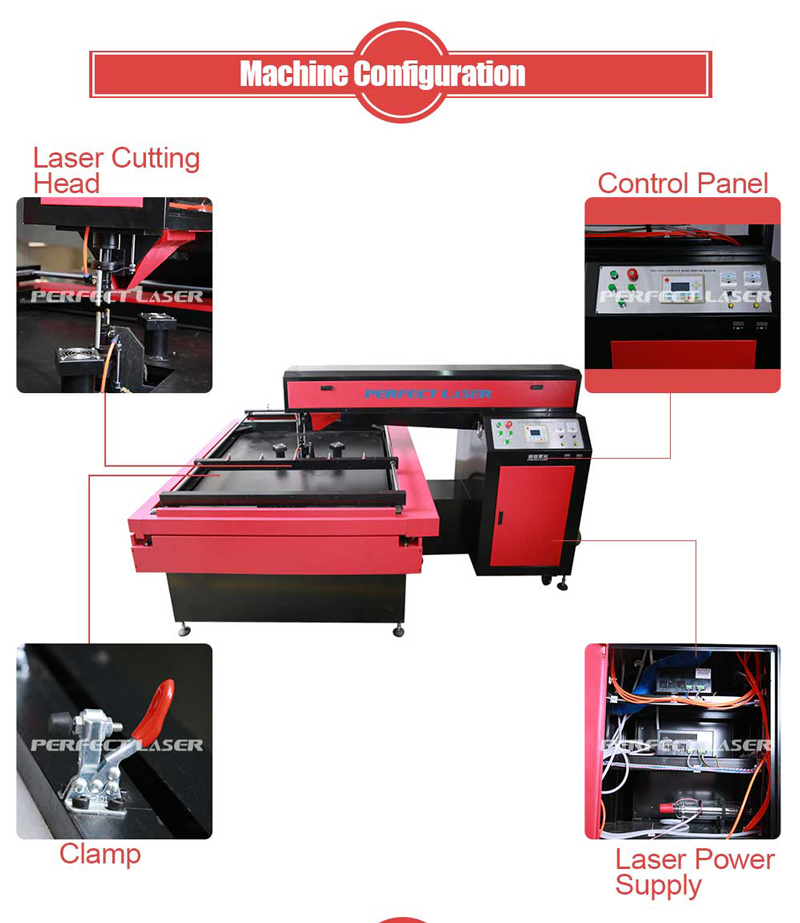

★ Machine parts
★ Packaging & Delivery
1. Prompt deliver at the very day.
2. Well-trained and disciplined packing team.
3. After-sale service:. Any questions or problems after receiving the product, please feel free to contact us. Problems would be solved for you immediately.
4. Sophisticated and professional logistic agent.
★Competitive Advantages
1. 100% custom pass guaranteed.
2. Our products have been exported to Germany, Norway, Poland, Finland, Spain, UK, France, Russia, USA, Brazil, Mexico, Australia, Japan, Korea, Thailand, Indonesia, Uruguay and many other countries.
3. Flexible and Untraceable payment terms.
4. Good after-sale service.
5. We offer high quality products at competitive price in quick delivery.
Product Tags:
|
|
Advertising Craft Laser Pattern Cutter CO2 Glass Laser Tube 20mm Cutting Depth Images
|
