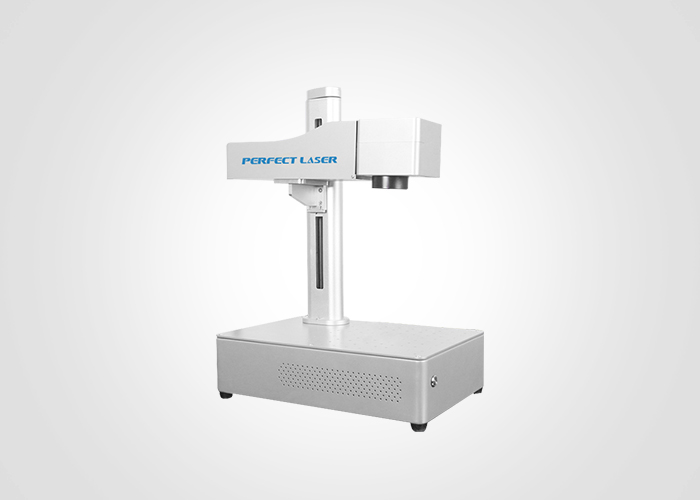

20w 30w 50w Black Portable Mini Small Size Desktop Fiber Laser Marking Engraving Machine for Metal Stainless Steel brass
(Model:PEDB-110)
★ Product Introduction of mini laser engraver for metal:
This mini laser engraving machine for metal is suitable for marking on all kinds of metal materials and some hard plastics. The output power can be controlled arbitrarily through the marking software, and the marking depth can be precisely controlled.The mini laser engraving machine for metal has low running cost, clear and permanent marking result.
★ Product Features:
Safety and integrity for sensitive and critical materials Hygiene and sterility for UV laser marked medical plastics Filigree and high-contrast markings with 1064 nm and small beam diameter Solvent and additive-free marking of plastics Low-maintenance due to an efficient air-cooled design and long-lasting optical components
★ Application:
Mini laser engraving machine for metal suitable for all metal and some plastic, stainless steel, brass, hard alloy, electroplating products, ABS, epoxy resin, painted coated products, ceramics, etc. Such as: logo printing ,QR code ,series number,production date,bar code
★ Technical Parameters:
| Product Name | Mini Laser Engraving Machine for Metal |
| Model No. | PEDB-110 |
| Laser power | 20w | 30w | 50w |
| Input voltage | 100-240V |
| Marking Area (Standard) | 110x110mm |
| Marking Area (Optional) | 150x150mm | 200x200mm |
| Wave length | 1064nm |
| Supported format | AI / PLT / PNG / JPG / DX |
| Language | Multi-languages can be choose (English is default, other is optional. Please inform us in advance which you want) |
| Engraving speed | 0-15000mm/s |
| Marking speed | 600-1000 characters / minute |
| Machine weight | 15.4~35Kgs (according different power of laser source) |
| System support | Windows 7 / 8 / 10 |
| Total power | <500w |
| Pulse frequency | 20kHZ~60kHZ |
| Working temperature | 10-45℃ |
| Marking depth | 0.001~0.5mm |
| Marking precision | ≤0.001mm |
| Cooling system | Air cooling |

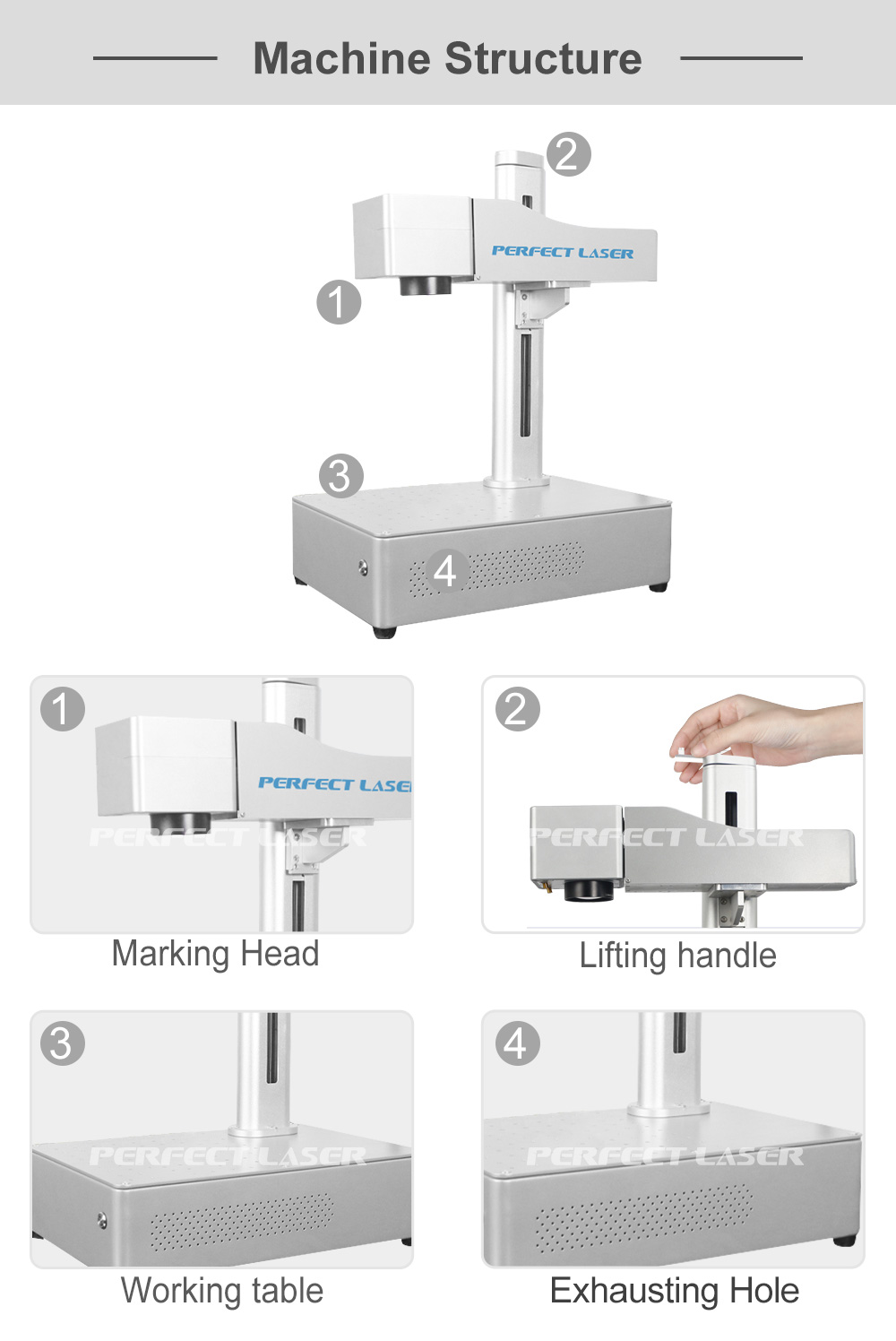

★ Machine parts:
★ Packaging & Delivery:
1. Prompt deliver at the very day.
2. Well-trained and disciplined packing team.
3. After-sale service:. Any questions or problems after receiving the product, please feel free to contact us. Problems would be solved for you immediately.
4. Sophisticated and professional logistic agent.
★Competitive Advantages:
1. 100% custom pass guaranteed.
2. Our products have been exported to Germany, Norway, Poland, Finland, Spain, UK, France, Russia, USA, Brazil, Mexico, Australia, Japan, Korea, Thailand, Indonesia, Uruguay and many other countries.
3. Flexible and Untraceable payment terms.
4. Good after-sale service.
5. We offer high quality products at competitive price in quick delivery.
