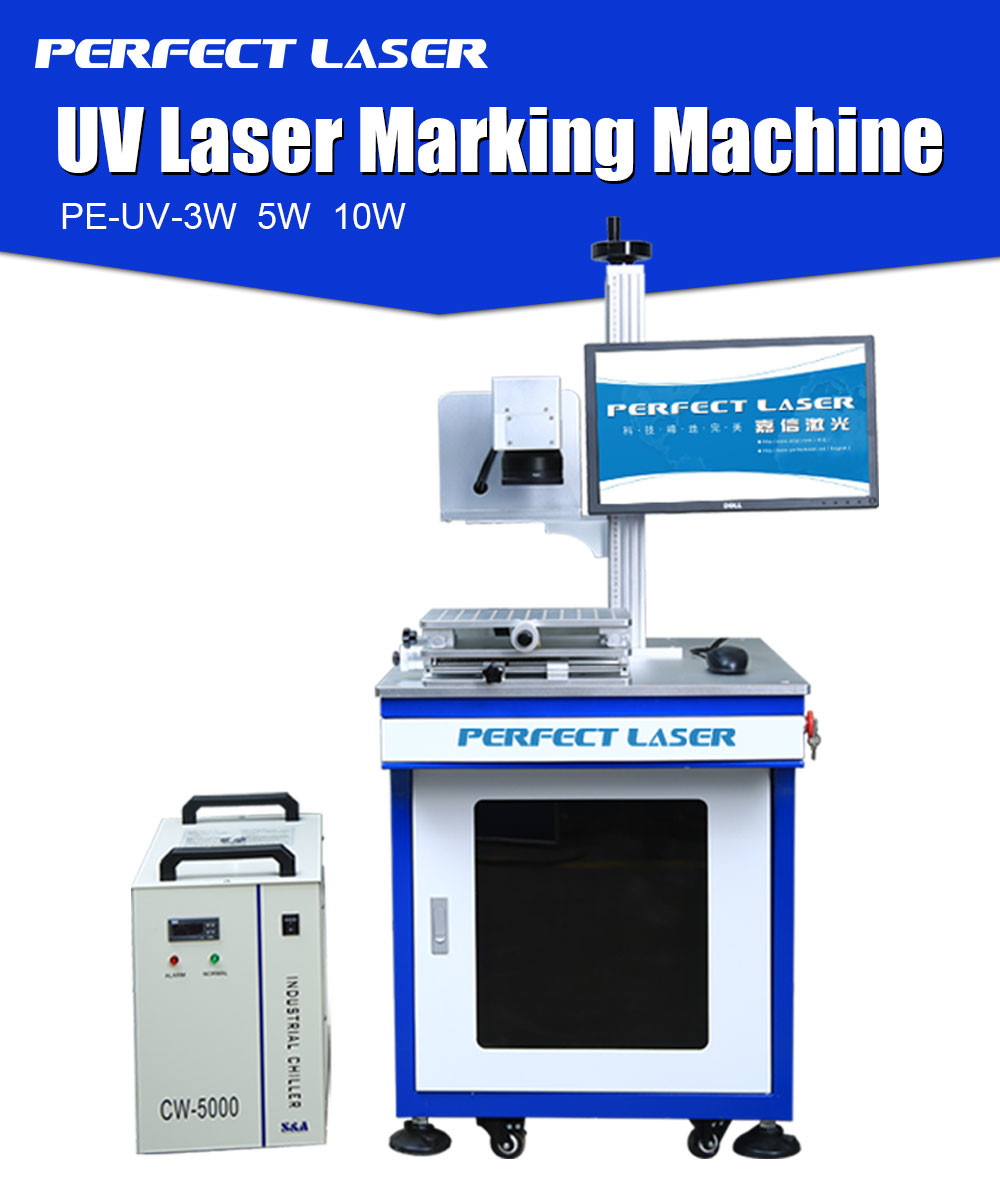

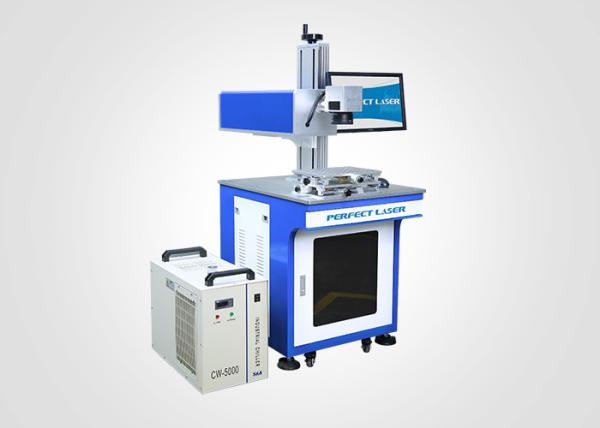

3w 5w Autofocus Metal Jewelry Steel Aluminum Copper Plastic Wood Acrylic Leather UV Laser Marking Machine Manufaturer
(Model:PE-UV-3W 5W 10W)
★ Product Introduction:
Perfect laser is uv laser marking machine manufacturer ,which has short wavelength,focus,smaller spot,belongs to cold process with a little heat affecting,good beam quality.it can achieve hyper-fine marking.Most materials can absorb ultraviolet laser,it is widely applied on industrial; with very little heat affecting area, it won't have heat effect,there is no burning problem,pollution-free,non-toxic,high marking speed,high efficiency,the machine performance is stable,low power consumption.
★ Product Features:
- Friendly operating interface
- Zero consumption of any materials
- 24-hour continuous and stable processing
- Remarkable marking effects
- Widely used for material such as electronics components, Auto parts, jewelry, leather, pipes, etc

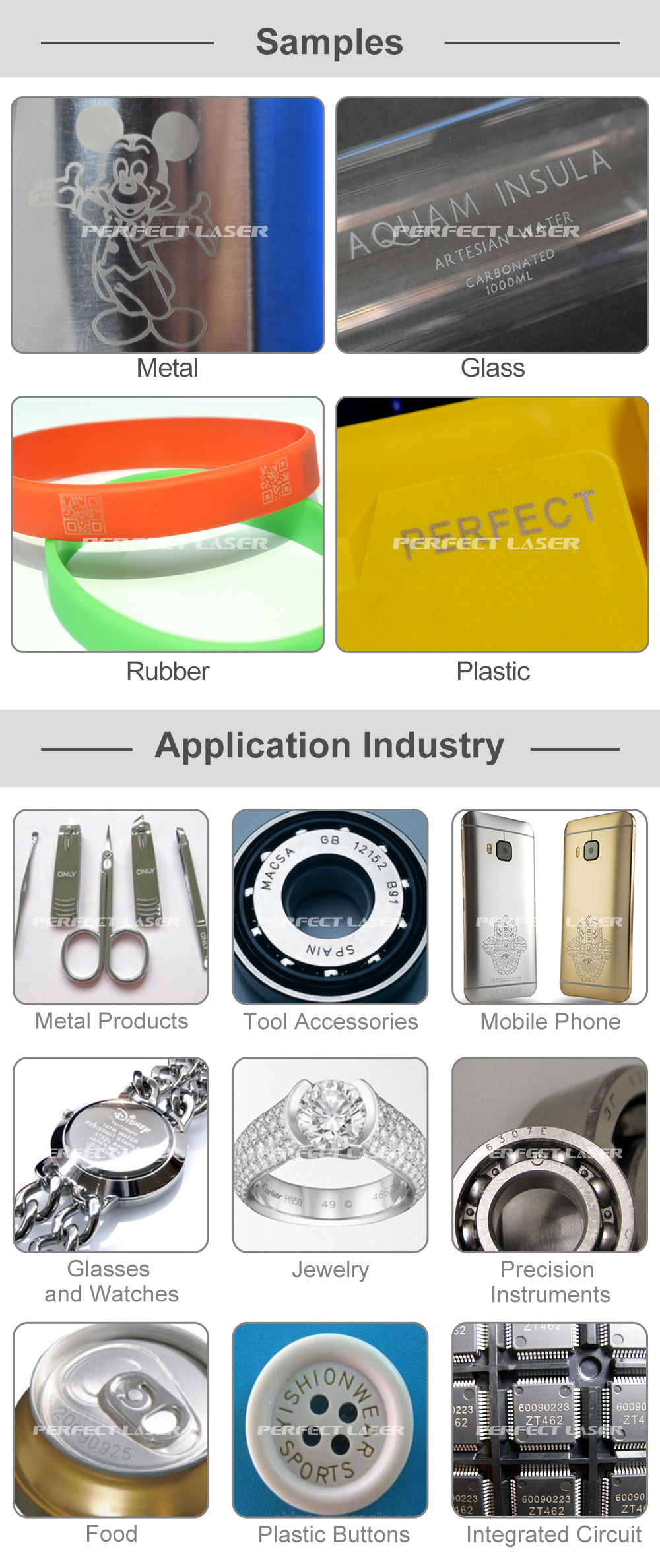

★ Application:
The machine employs UV laser source and high-speed galvanometer as its centraldevices. It is widely used for metal or nonmetal's (metal,glass,plastic,acrylic,wood,leather etc.) surface marking to make up for the lack of fiber and co2 laser marking. Suitable various industries,including: electronic components, integrated chips, electrical appliances, communication equipment, tools, precision machinery, frames, watches and clocks, auto parts, crystal glass marking, plastic cases ETC.
★ Technical Parameters:
| Model | PE-UV-3W/5W | PE-UV-10W |
| Laser type/wave length | 355nm |
| Laser output power | 3W/5W | 10W |
| Beam quality㎡ | <1.1 | <1.3 |
| Marking speed | 400 characters per second | 500 characters per second |
| Repeated accuracy | ±0.001mm |
| Working area | 110×110mm or 175×175mm ( adjustable ) |
| Machine power | 800W | 1200W |
| Power supply | 380V/50-60Hz or 220V/50-60Hz |
| Minimum character | 0.1mm |
| Minimum line width | 0.015mm |
| Life of the laser machine | >100,000 hours |
| Cooling system | Water Cooling |
| Control interface | Standard USB |
| Overall dimensions | 900mm×680mm×1200mm |

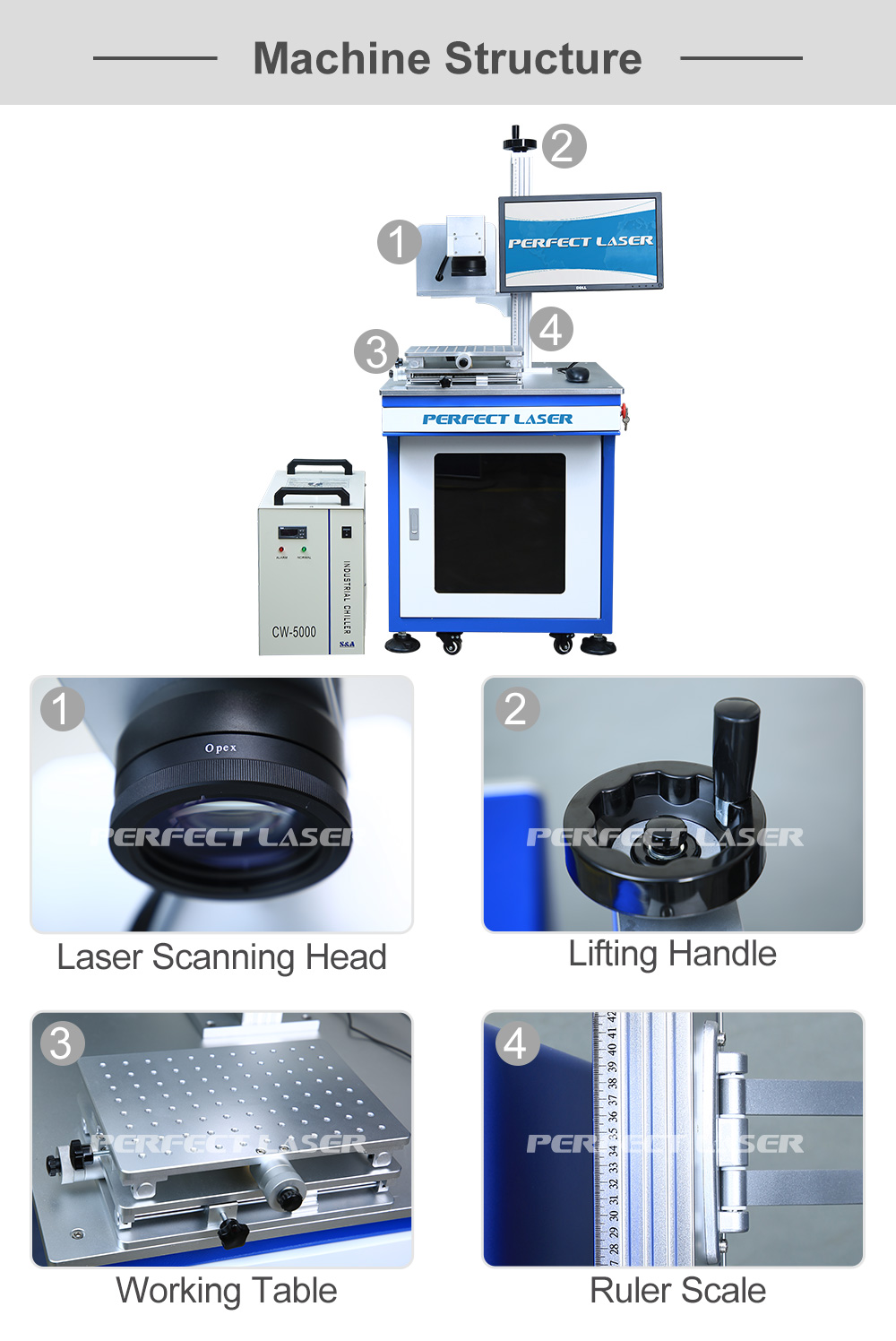

★ Machine parts:
★ Packaging & Delivery:
1. Prompt deliver at the very day.
2. Well-trained and disciplined packing team.
3. After-sale service:. Any questions or problems after receiving the product, please feel free to contact us. Problems would be solved for you immediately.
4. Sophisticated and professional logistic agent.
★Competitive Advantages:
1. 100% custom pass guaranteed.
2. Our products have been exported to Germany, Norway, Poland, Finland, Spain, UK, France, Russia, USA, Brazil, Mexico, Australia, Japan, Korea, Thailand, Indonesia, Uruguay and many other countries.
3. Flexible and Untraceable payment terms.
4. Good after-sale service.
5. We offer high quality products at competitive price in quick delivery.
Product Tags:
|
|
Wood Acrylic Leather UV Laser Marking Machine Manufaturer 3W 5W 10W Auto Focus Images
|
