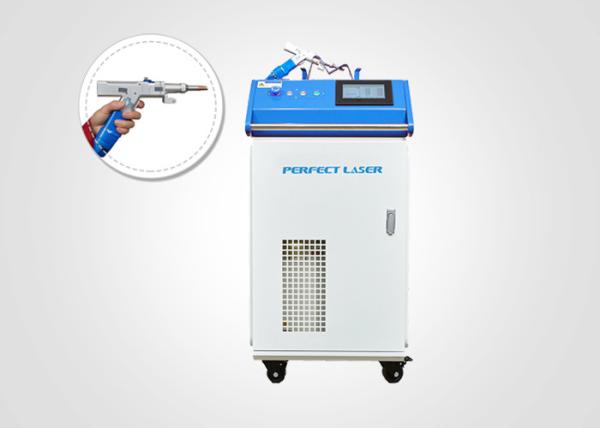

120mm/s High-Speed And 1070mm Laser wavelength Convenient Hand-Held Metal Fiber Laser Welding Machine
★ Product Introduction
Hand-held fiber laser welding uses high-energy laser pulses to locally heat the material in a small area. The energy of the laser radiation diffuses into the material through heat conduction, and the material is melted to form a specific molten pool. It is a new type of welding method. Laser welding is mainly aimed at the welding of thin-walled materials and precision parts. It can realize spot welding, butt welding, stitch welding, sealing welding, etc. Small size, small deformation, fast welding speed, smooth and beautiful welding seam, no need or simple treatment after welding, high welding seam quality, no pores, and small focusing spot.
★ Product Features
1. The width of the welding seam can be adjusted: the laser point is 0.1-0.3mm, and the high-frequency oscillator is installed in the welding gun, so that the welding seam can be adjusted from 1-6mm
2. The operation is simple, it can be operated without a master, and the welding methods of different forms of joints can be realized
3. Fast welding speed, 2-10 times faster than traditional welding, one machine can save at least 2 welders a year
4. No deformation: Since the heating time is only a few milliseconds, the thermal effect on the material is only limited to the laser focus spot, and the welding heat affected zone is very small
5. Wide range of welding materials: mainly used for welding of aluminum sheets, iron sheets, stainless steel sheets, copper sheets and other metal sheets of the same material. And mixed welding of various materials such as aluminum copper, stainless steel and copper
6. Lightweight welding torch: reduce the weight of the welding head during operation, light and practical
7. The welding seam is beautiful and has no welding scars, which reduces the cost of subsequent grinding and treatment
★ Application
The fiber laser welding machine is mainly used for the welding of thin-walled materials and precision parts
★ Technical Parameters
| Machine Name |
Handheld Metal Fiber Laser Welding Machine |
| Modle |
PE-W1000G |
PE-W1500G |
PE-W2000G |
| outpower |
1000W |
1500W |
2000W |
| INPUT VOLTAGE |
220V / 50HZ / 20A |
380V / 50HZ / 40A |
| LASER TYPE |
Fiber Laser |
| ADJUSTABLE LINE WIDTH |
0-5mm |
| Output laser power adjustment range |
10%-100% |
| Laser wavelength |
1070nm |
| Output fiber length |
10m |
| Fiber bend radius |
100mm |
| Way of working |
Continuous/modulation |
| Welding speed range |
0-120mm/s |
| cooling method |
Built-in cold water |
| Working environment temperature range |
15-35℃ |
| Relative humidity range of working environment |
<70% without condensation |
| Welding gap requirements |
≤0.4mm |
| Welding thickness |
- |
0.5-3mm |
| Automatic wire feeder |
- |
0.8-1.2mm (Random 1.0mm) |
Within 1mm |
| Product training |
Perfect Laser provides professional manuals and training videos |
| Product Warranty |
12 months |
★ Packaging & Delivery
1. Prompt deliver at the very day.
2. Well-trained and disciplined packing team.
3. After-sale service:. Any questions or problems after receiving the product, please feel free to contact us. Problems would be solved for you immediately.
4. Sophisticated and professional logistic agent.
★Competitive Advantages
1. 100% custom pass guaranteed.
2. Our products have been exported to Germany, Norway, Poland, Finland, Spain, UK, France, Russia, USA, Brazil, Mexico, Australia, Japan, Korea, Thailand, Indonesia, Uruguay and many other countries.
3. Flexible and Untraceable payment terms.
4. Good after-sale service.
5. We offer high quality products at competitive price in quick delivery.
