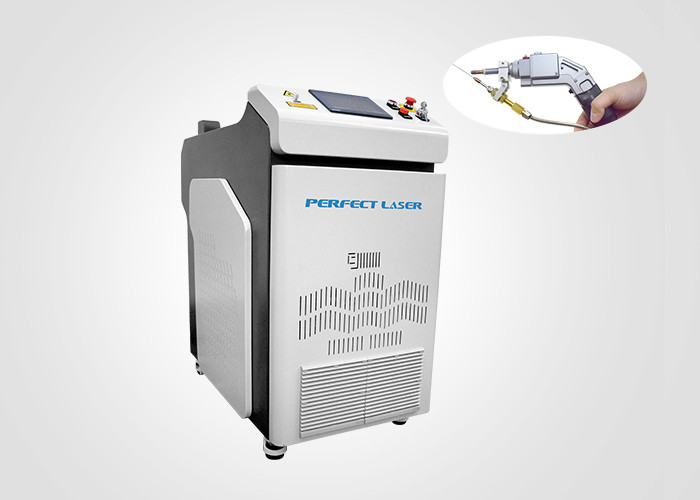

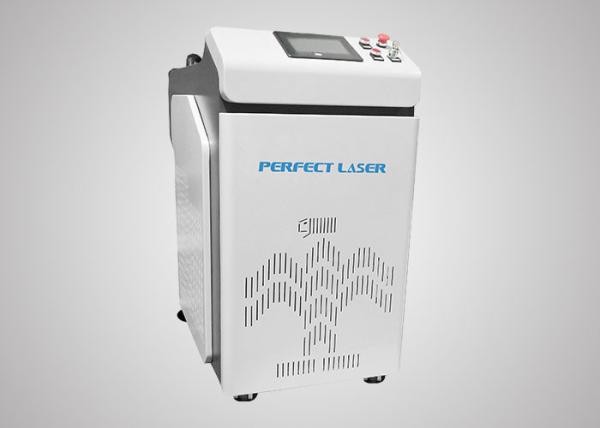

1000W Handheld Metal Material Fiber Laser Welding Section With Red Light Positioning Function
(Model: PE-W1000G)
★ Product Introduction:
The handheld fiber laser welding machine price can weld any part of the workpiece at any angle, which is flexible and convenient, can realize outdoor welding, and is suitable for spot welding of various complex welding seams and various devices.
★ Features:
1. The hand-held welding gun of fiber laser welding machine price replaces the previous fixed light path, which is more flexible and convenient, realizes long-distance laser welding, and the limitation of the travel space of the customer service workbench.
2. The hand-held welding head of fiber laser welding machine price is light and flexible, and the operation is convenient and simple, which can meet the welding of various angles and various positions.
3. The handheld welding head can be equipped with 5 meters, 10 meters of imported optical fiber, which is flexible and convenient to realize outdoor welding
4. Infrared positioning is used for welding head position proofreading and position verification during welding. The welding position is more accurate and the welding seam is more beautiful.
5. Laser welding is deep, and the welding is firm
6.The fiber laser welding machine price is suitable for all kinds of complex welding, spot welding of various devices
★ Application:
1. Applicable materials:

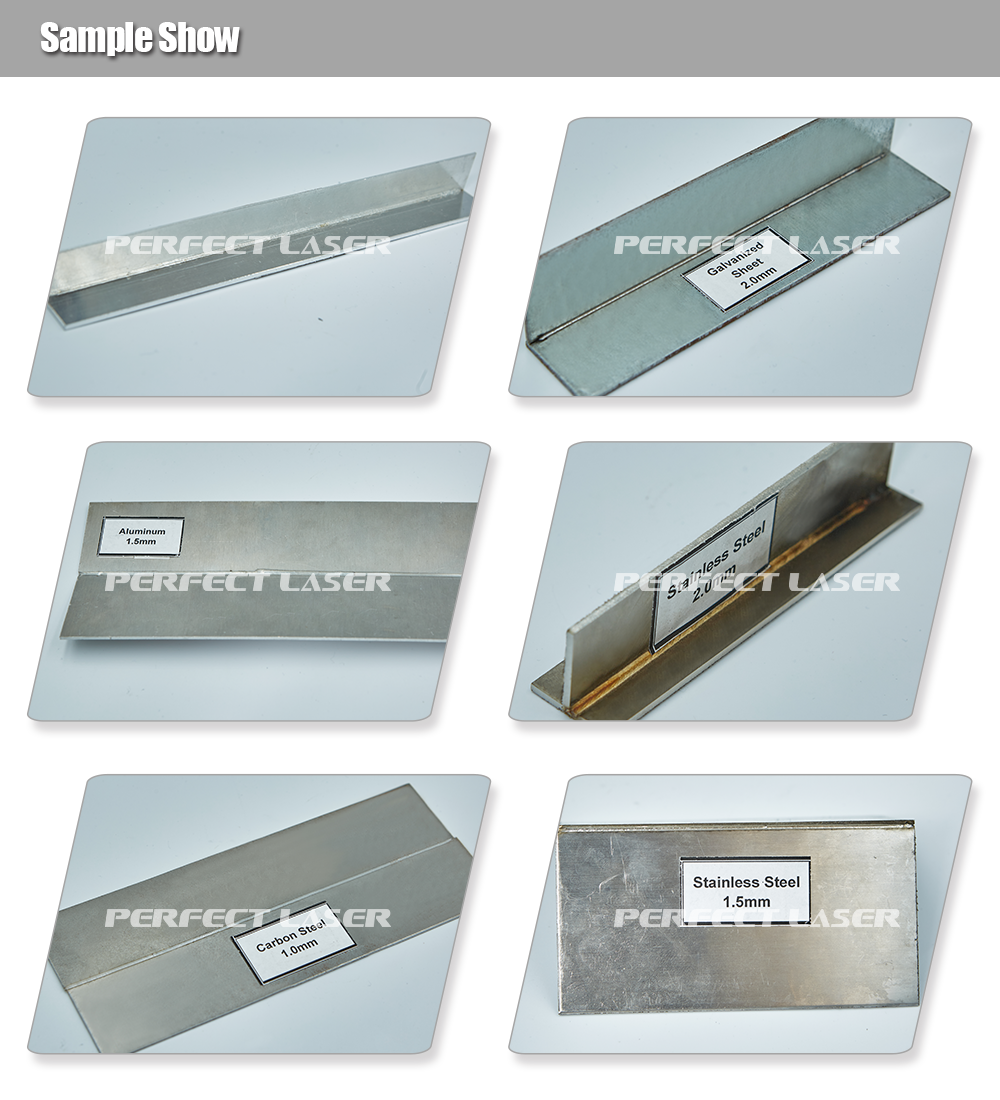

The fiber laser welding machine price is used for welding of various 3mm thin metal materials.
2. Applicable industry:
The fiber laser welding machine price is widely used in the advertising industry, such as LED letters, advertising signs and other industries.
★ Technical Parameters:
| Product Name | fiber laser welding machine price |
| Model | PE-W1000G |
| Input Voltage | 220V / 50HZ / 20A |
| Maximum Input Power | 3.5 KW |
| Fiber Laser Source | 1000 W |
| Welding Thickness | 3mm |
| Welding Head Configuration | QBH + double water cooling inside |
| Laser Mode | Continuous / Modulation |
| Laser Wavelength | 1070nm |
| Beam Divergence Angle | ≤1.2mrad/m |
| Welding Interface | QBH |
| Fiber Cable Length | 10m |
| Laser Spot Diameter | 0.2-2mm,adjustable |
| Targeting | Red light |
| Cooling System | 1000w water cooler inside,double circulation system, Heat-exchange titanium tube,over-heat alarm, flow protection, water level protection |
| Machine Size | 1030x600x1200mm |
| Whole Weight | 260 KGS |
| Rated power (CW) | 1000(-0,+10%)W |
| Operation Mode | Continuous / Modulation |
| Polarization | random |
| Emission Wavelength | 1070nm |
| RF Width | < 6.0nm |
| Output Power Adjustable (CW) | 10 - 100% |
| Emission Wavelength | 630 - 680nm |
| Maximum Output Power | 1.0mW |
| NA (nominal) | 0.10 |
| M2 | 1.20 |
| Mode Field Diameter | 21.0Micron |
| Core/Cladding Diameter | 20/400Micron |
| Cable Length | 10m |
| Maintainable Output Power (CW) | 10 - 100% |
| Emission Wavelength | 630 - 680nm |
| Maximum Output Power | 1.0mW |
| Name | Number |
| Protect Mirror | 10 pieces |
| Filter Core | 1 piece |
| Welding Copper Nozzle | 2 pieces |
★ Machine parts:
★ Packaging & Delivery:
1. Prompt deliver at the very day.
2. Well-trained and disciplined packing team.
3. After-sale service:. Any questions or problems after receiving the product, please feel free to contact us. Problems would be solved for you immediately.
4. Sophisticated and professional logistic agent.
★ Competitive Advantages:
1. 100% custom pass guaranteed.
2. Our products have been exported to Germany, Norway, Poland, Finland, Spain, UK, France, Russia, USA, Brazil, Mexico, Australia, Japan, Korea, Thailand, Indonesia, Uruguay and many other countries.
3. Flexible and Untraceable payment terms.
4. Good after-sale service.
5. We offer high quality products at competitive price in quick delivery.
