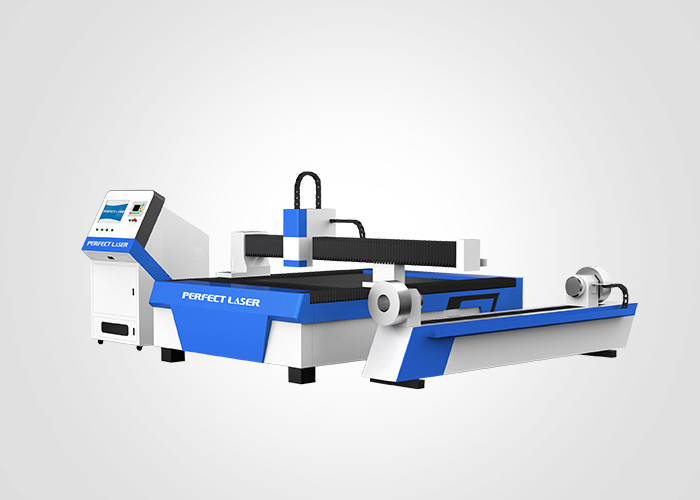

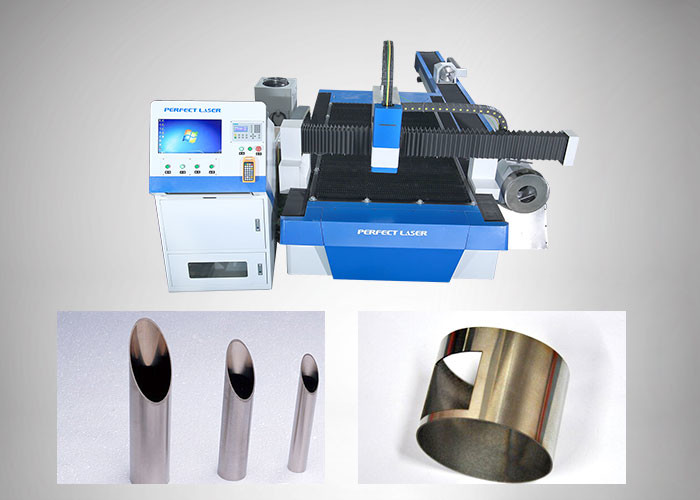

1000W 2000W Metal Round Tube Square Tube Rectangular Tube Oval Tube Parallel Oval Tube Cnc Fiber Laser Cutting Machine
(Model:PE-F3015B)
★ Product Introduction:
The plate and tube integrated laser cutting machine is also known as the plate and tube dual-purpose fiber laser cutting machine. It can cut both plates and tube profiles (including square tubes, round tubes, channel steel, angle steel, etc.), and carbon steel and stainless steel can be cut. One machine with multiple functions, high cost performance. The bed adopts cast iron bed, rack and pinion transmission system, professional pipe cutting CNC system, with high precision, complete functions, convenient use and simple operation. The plate and tube dual-purpose fiber laser cutting machine is suitable for comprehensive processing and manufacturing enterprises.
★ Features:
1.Fully automatic pipe feeding system, without manual operation, convenient.
2. Integrated structure design, fine line outer edge wrapping design, zero exposure, and a cleaner working environment.
3. Fine cutting. The lightweight aluminum telescopic beam reduces the motion drive load as much as possible, and automatically compensates for the impact of accuracy caused by environmental changes.
4. 24 hours long continuous working time, low loss and low failure.
5. High safety factor. The customized fault alarm system reflects the running status of the machine at the first time; once it alarms, it automatically stops running and enters the standby state.
6. The intersecting lines of round pipes, square pipes, elliptical pipes, and metal pipes are opened and cut off, and the range of pipe diameters can be adjusted greatly, which effectively broadens the utilization rate of equipment.
★ Application:
1. Applied Materials
It can cut metal, a variety of non-metallic sheets and pipes. It is especially suitable for cutting stainless steel, iron, aluminum, copper, titanium steel, ceramic wafers, silicon wafers, diamonds and other materials.
2. Application industry
Widely used in sheet metal, hardware, steel structure, precision machinery, auto parts, glasses, jewelry, nameplates, advertising, handicrafts, electronics, toys, packaging and other industries.
★ Technical Parameters:
| Name | Metal sheet and pipe fiber laser cutting machine |
| Model | PE-F3015B (500W /800W /1000W /2000W) |
| Maximum run speed | 90m/min |
| Laser Wavelength | 1080 nm |
| Minimum cutting line width | 0.1mm |
| Rated output power | 50--2000W |
| X, Y-axis positioning accuracy | ≤±0.01mm |
| Repeated positioning accuracy of the table | ≤±0.01mm |
| The maximum load of the workbench | 800KG |
| Effective processing format | 1500*3000mm |
| Z-axis travel | 120mm |
| Volume | 4.6*2.3*1.8m |
| Power | 12KW |
| Water cooler | 2kw |
| Electricity power | 380v 50Hz±10% |
| Red light spot position | yes |
| Auxiliary gas | Oxygen, nitrogen |
| Pipe type | Round,oval,special-shaped pipe |
| Pipe Length | <12m |
| Cutable Pipe Length | <6m |
| Diameter | 1mm-300mm |
★ Machine parts:
★ Packaging & Delivery:
1. Prompt deliver at the very day.
2. Well-trained and disciplined packing team.
3. After-sale service:. Any questions or problems after receiving the product, please feel free to contact us. Problems would be solved for you immediately.
4. Sophisticated and professional logistic agent.
★Competitive Advantages:
1. 100% custom pass guaranteed.
2. Our products have been exported to Germany, Norway, Poland, Finland, Spain, UK, France, Russia, USA, Brazil, Mexico, Australia, Japan, Korea, Thailand, Indonesia, Uruguay and many other countries.
3. Flexible and Untraceable payment terms.
4. Good after-sale service.
5. We offer high quality products at competitive price in quick delivery.
