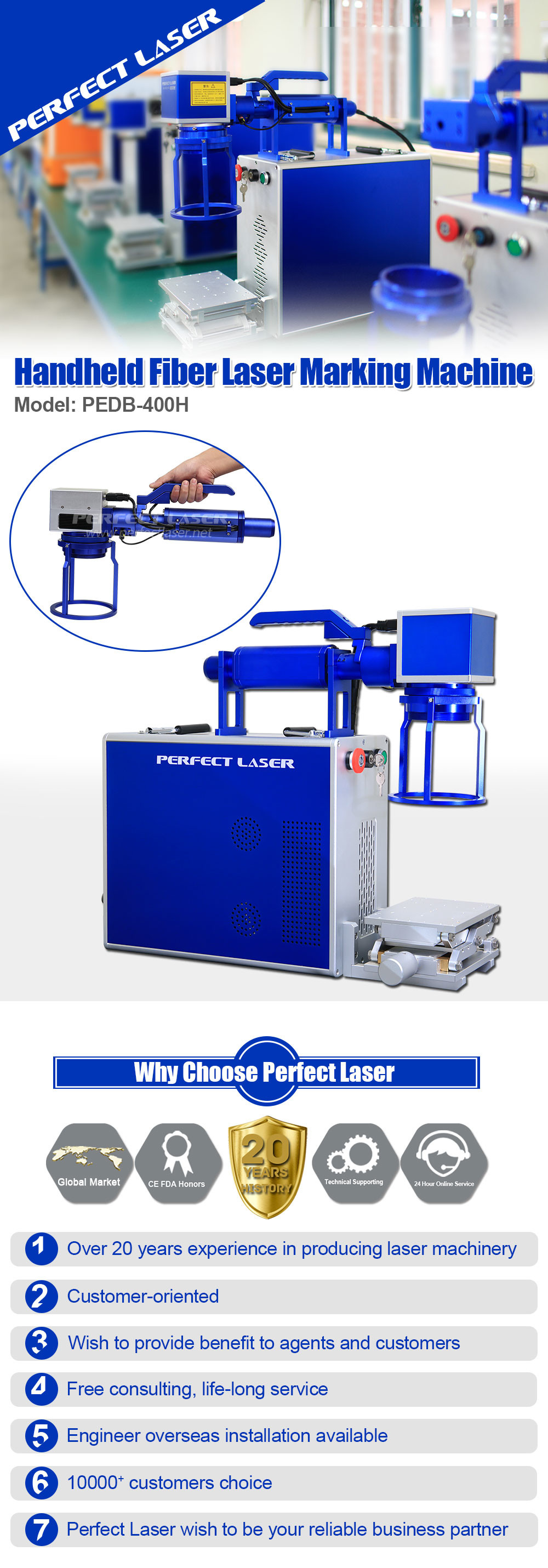

High-Speed 8000mm/s Split Hand-Held Metal Portable Laser Etching Machine
(Model: PEDB-400H)
★ Product Introduction:
The portable laser etching machine is characterized by a very small size. The size of the whole machine is similar to that of a computer host. It can be put into the trunk of the car for easy handling and can work even in a small workshop. It can mark on a variety of materials, and the effect is fine, the software integrated intelligent control, the repeat positioning accuracy is high, the cost is much lower, it belongs to the equipment with fine effect in the marking machine, and the speed is fast.
★ Product Features:
1. Small size, easy to handle, and can adapt to the needs of frequent changes in processing locations;
2. Integrated modular design, easy maintenance, small size;
3. The portable laser etching machine is maintenance-free and has low cost of use
4. Long laser life (>100000 hours)
5. The output beam is uniform, the spot is small, and the resolution is 1 micron, which is more than 10 times that of traditional products

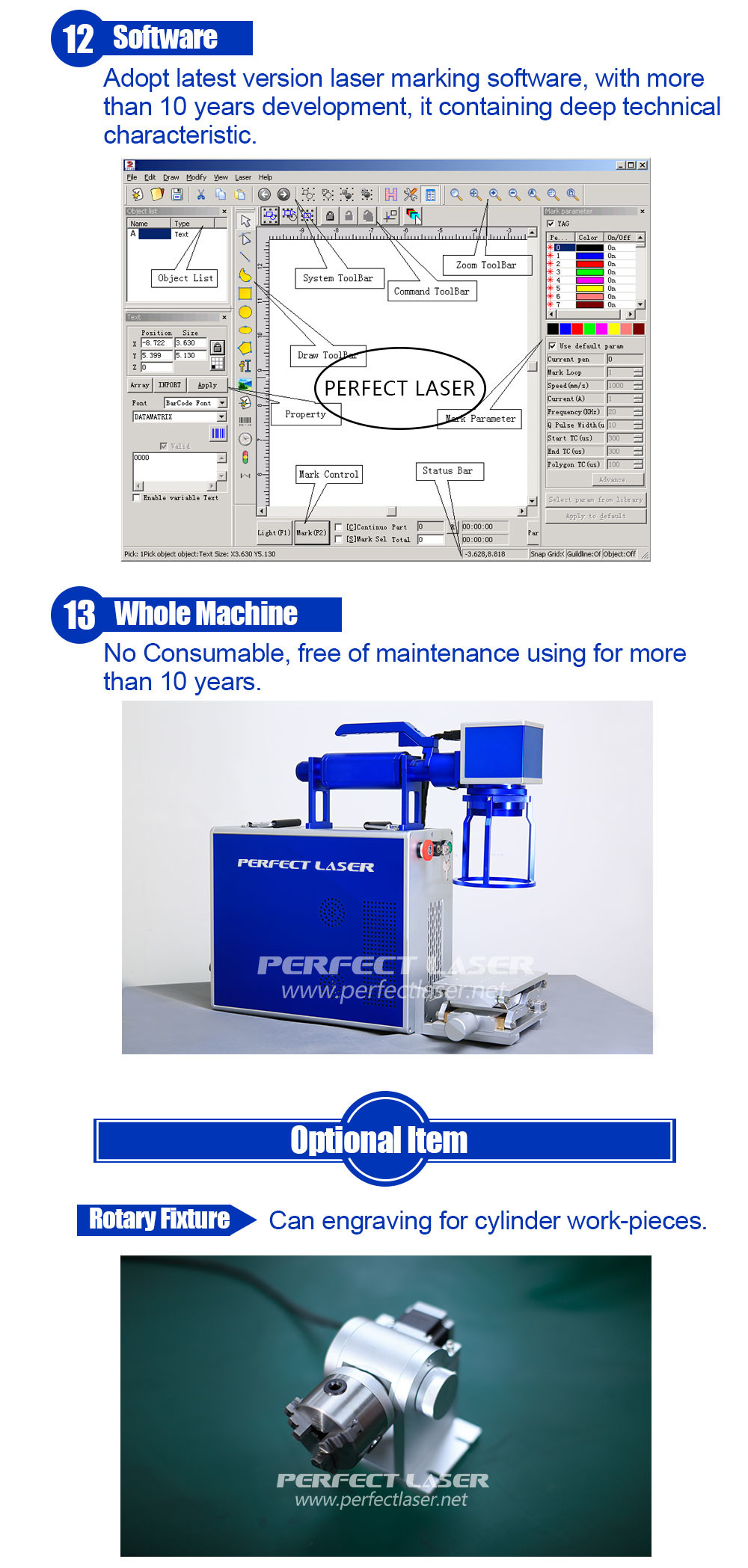

6. The laser software is powerful, compatible with graphics files of Coreldraw, AutoCAD, Photoshop and other software; supports automatic coding, serial number, batch number, date, barcode, QR code, automatic number jumping, etc.;
★ Application:

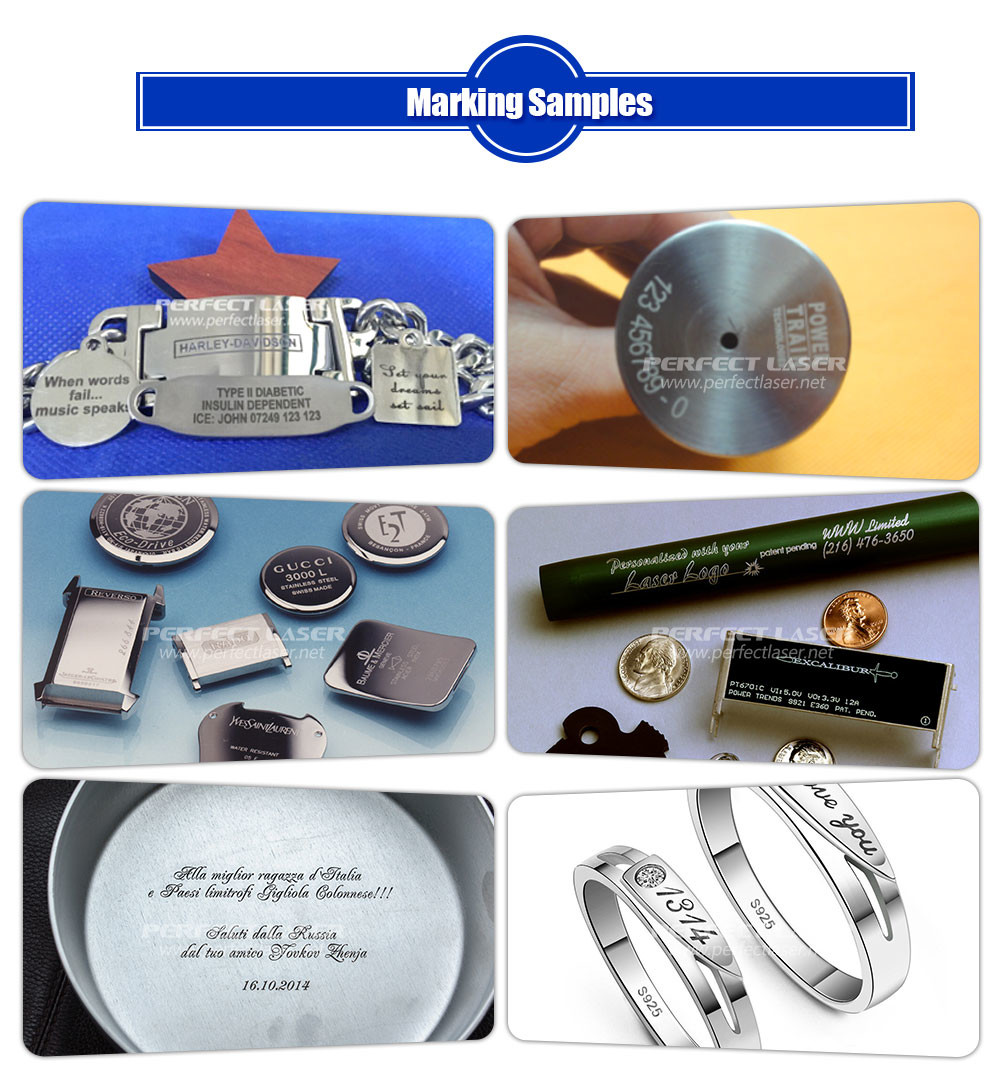

Electronic components, instrumentation, hardware tools, auto parts, daily necessities, jewelry, food and beverage packaging, precision instruments, gifts jewelry, medical equipment and other high-end products, high precision marking printing. Typical applications, such as plastic (PA66) insulation laser marking, metal plate automatic loading and unloading laser marking, packaging box online laser marking, metal mark.
★ Technical Parameters:
| Laser Marker Model | PEDB-400H |
| Type | Handheld |
| PC | Without PC |
| Laser Source |
| IPG Series | Pulse, high energy ytterbium doped fiber laser |
| Operating Mode | Pulse |
| Polarization | Random |
| Average output power | 20W - 50W |
| Central emission wavelength | 1064 nm, Q switch operation Output power adjustment range is 10% -100% |
| Transmit bandwidth(FWHM) | <10nm |
| Long-term average power instability | <5% |
| Pulse width (FWHM) | 100ns |
| Laser connection time | 180 microseconds |
| Laser disconnect time | 180 microseconds |
| Pulse repetition rate (kHz) | 20-80kHz |
| Per pulse energy (PRR = 20 kHz) | 0.95 MJ |
| Beam quality | <1.8 |
| Output fiber transmission length | 3m |
| working voltage | 220V |
| Maximum power consumption | 600W |
| Net size | 70*20*50cm |
| Laser System |
| Scanning speed | 0-7000mm/s |
| Marking speed | 0-8000mm/s |
| Marking size | 110mm×110mm (F-theta 160) |
| Spot size | ≤ 40 micron (F-theta 160) |
| Cooling system | Air cooling |
| Red point laser | 650 nm, red light marking guide |
| Continuous working time | ≥16h |
| Humidity | 45 to 85% (without condensation) |
| Working temperature | 0~40℃ |
| Control system | Laser marking (Chinese version) |

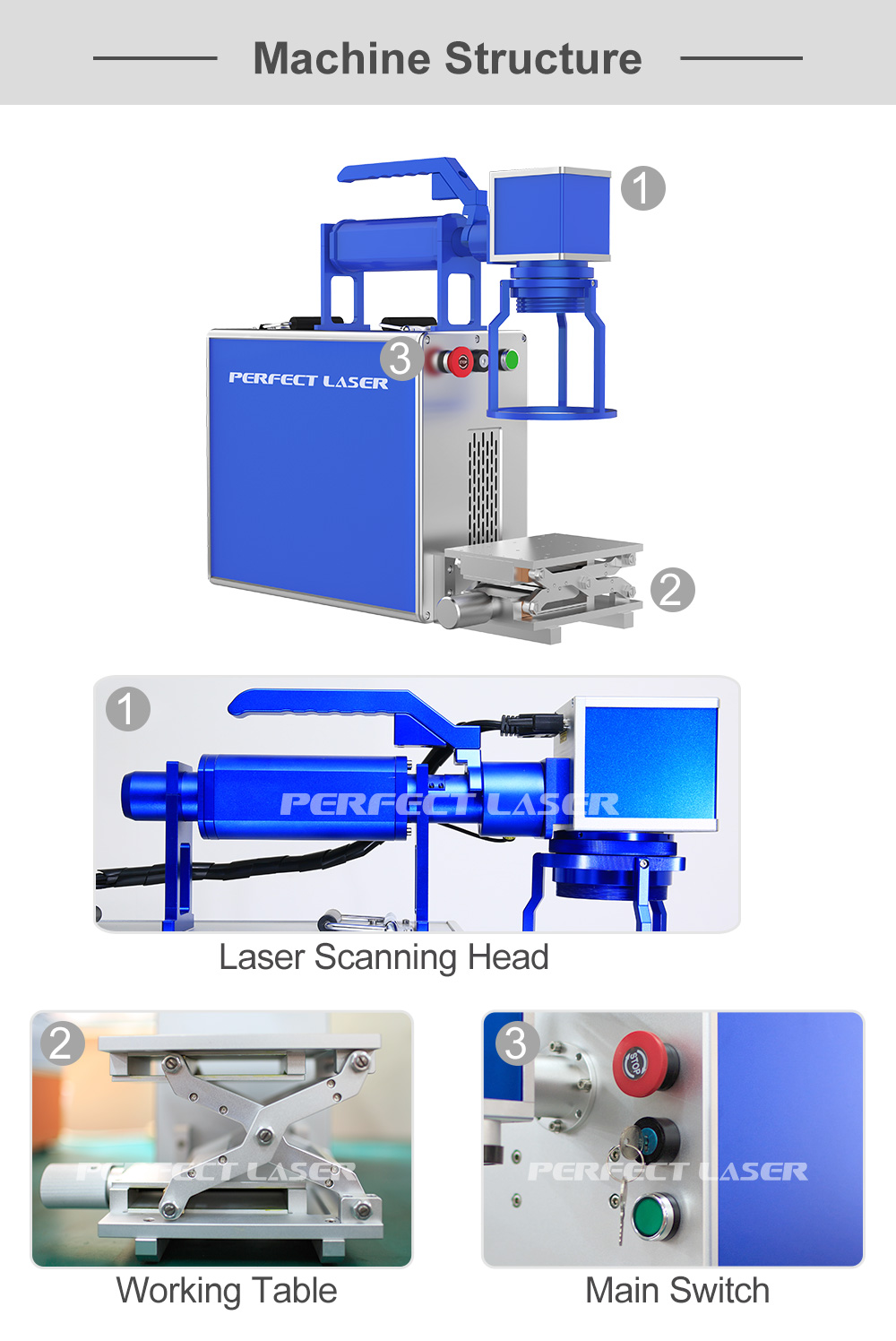

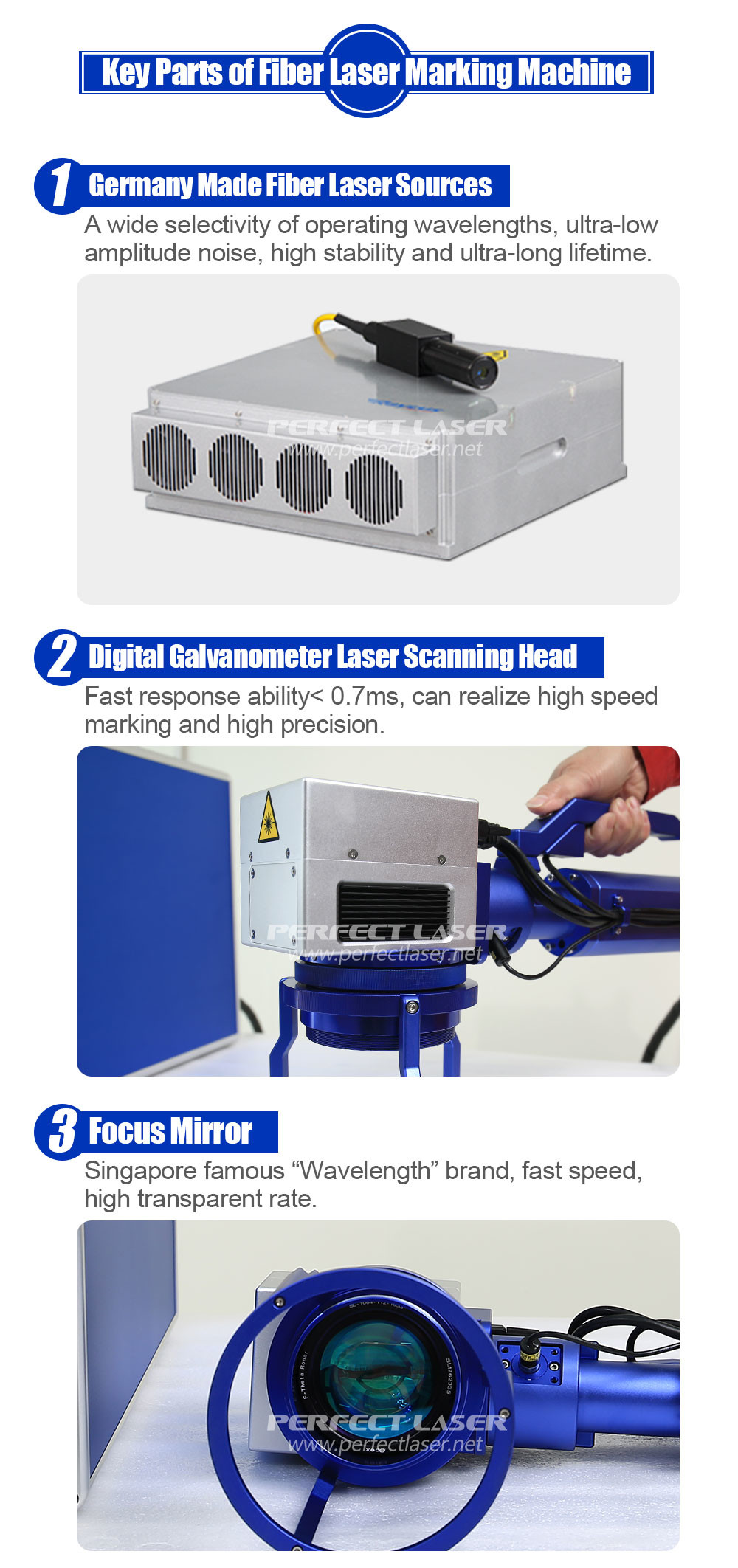

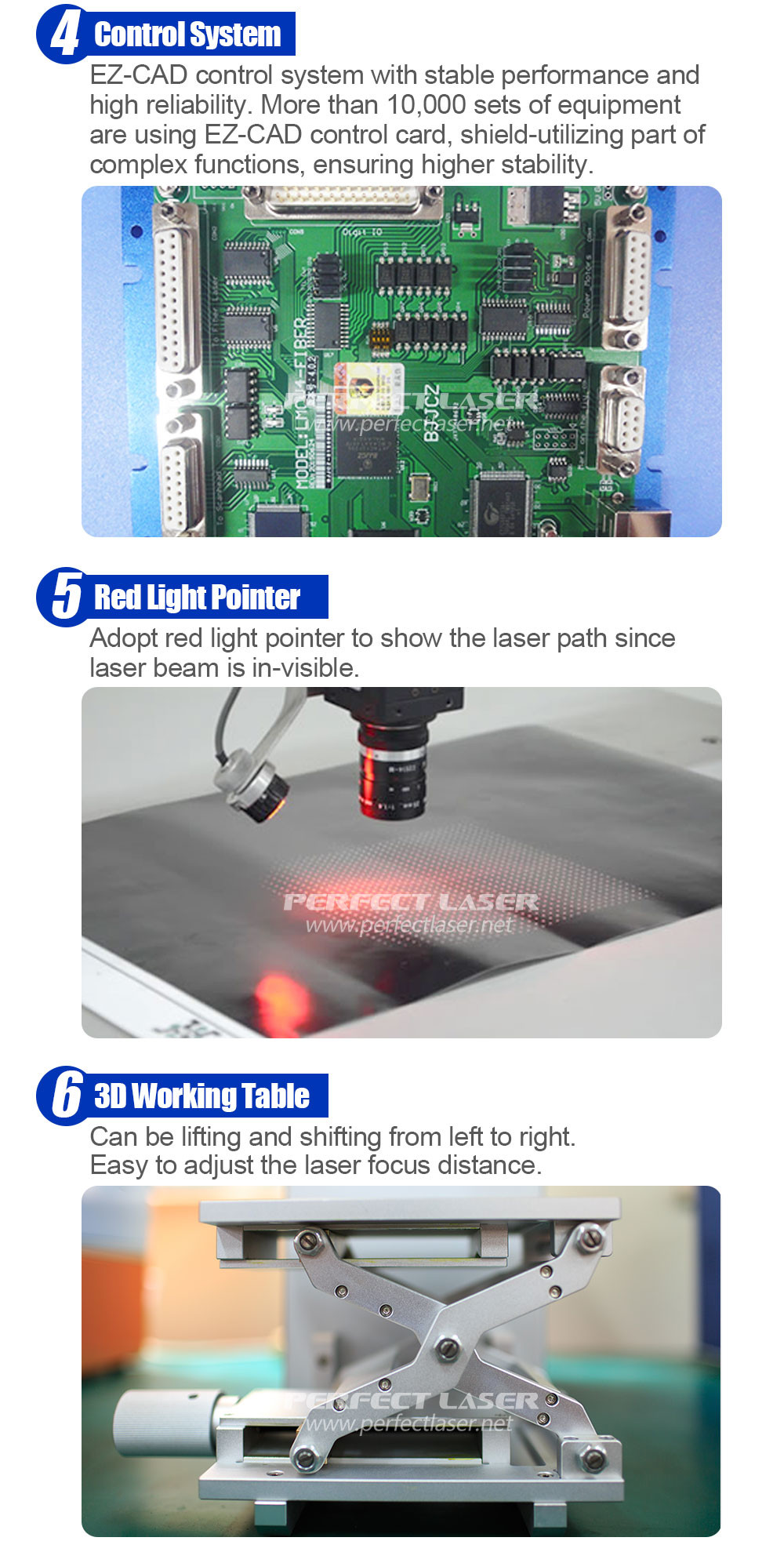

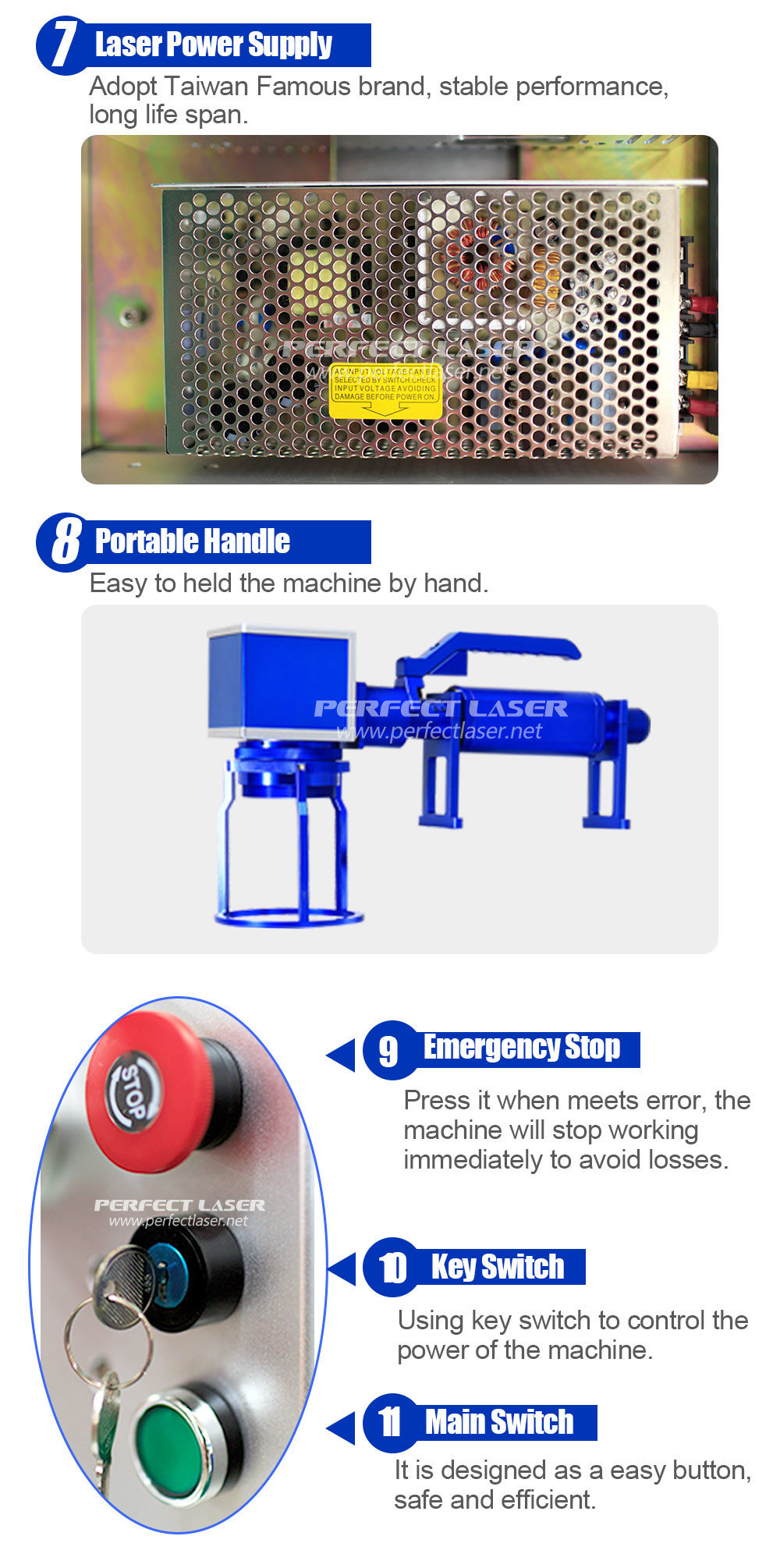

★ Machine parts:

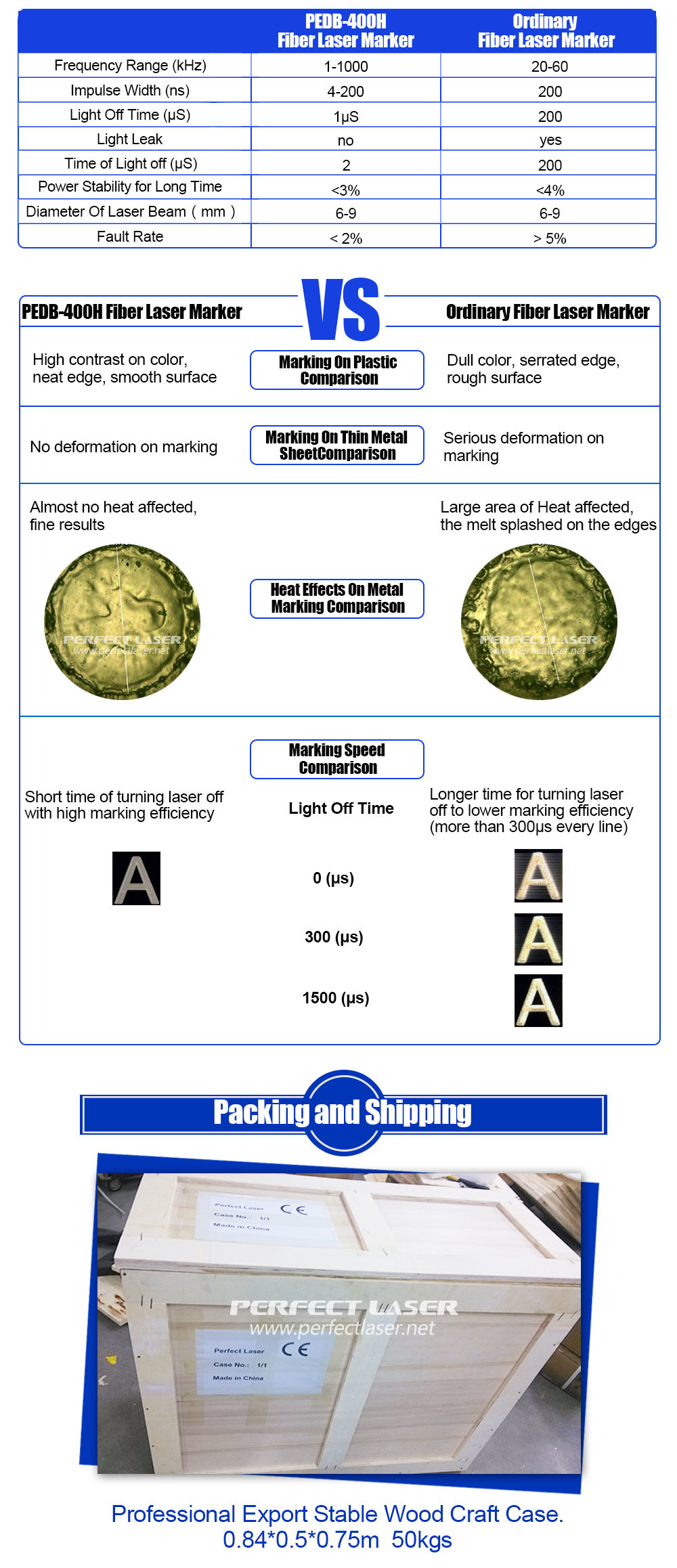

★ Packaging & Delivery:
1. Prompt deliver at the very day.
2. Well-trained and disciplined packing team.
3. After-sale service:. Any questions or problems after receiving the product, please feel free to contact us. Problems would be solved for you immediately.
4. Sophisticated and professional logistic agent.
★Competitive Advantages:
1. 100% custom pass guaranteed.
2. Our products have been exported to Germany, Norway, Poland, Finland, Spain, UK, France, Russia, USA, Brazil, Mexico, Australia, Japan, Korea, Thailand, Indonesia, Uruguay and many other countries.
3. Flexible and Untraceable payment terms.
4. Good after-sale service.
5. We offer high quality products at competitive price in quick delivery.
