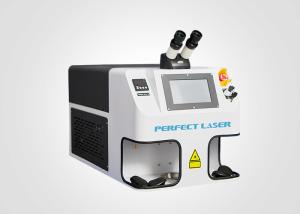

150W Very Small Fine Parts Trachoma Repair Hole Seam Repair Jewelry Laser Welding Machine Suppliers
(Model: PE-W150)
★ Product Introduction:
The W150 jewelry laser welding machine suppliers adopts a touch screen and built-in joystick for easy operation. The working chamber is equipped with high-brightness LED illumination and a precisely positioned microscope (with reticle) observation system, suitable for manual operation. High welding positioning accuracy, fast welding speed and high quality.
★ Product Features:
1.High power, high energy and high peak laser output Integrated design of the jewelry laser welding machine suppliers, built-in special chiller for cooling and temperature control and adopts water-cooled power module
2.The jewelry laser welding machine suppliers has the functions of current waveform editing and motorized focusing to improve the spot quality and meet the welding effect requirements of jewelry and other industries.
3.Touch screen interface and joystick-style operation provide user-friendly and convenient control functions
4.Ergonomically designed working chamber, built-in LED lighting spotlights with adjustable brightness, and an observation system that maintains consistent solder joints and microscope crosses, greatly improving user experience and reducing work intensity
★ Application:
The spot size of W150 jewelry laser welding machine suppliers
can be adjusted at will. At the same time, the laser welding penetration ability is strong, the heat affected area is small and the deformation is small during the welding process, which makes it very suitable for precision spot welding in the jewelry industry, including sand holes of various metal jewelry. It can also be used for filling holes, seam repairing and welding of claw feet of inlaid parts. It can also be used for filling trachoma in dentures and small precision parts, such as welding of integrated circuit leads, watch hairsprings, etc., and precision spot welding of small products in the dental industry and other industries. Repair welding.
★ Technical Parameters:
| Product Name | Gold Silver Jewelry Laser Spot Welding Machine |
| Model | PE-W100 W150 |
| Laser Medium | Nd3+:YAG |
| Laser Power | 100W / 150W |
| Laser Wavelength | 1064nm |
| Pulse Width | ≤15ms (Adjustable) |
| Pulse Frequency | 1-10HZ (Adjustable) |
| Welding Spot Diameter | 0.2-2mm |
| Filler Wire Diameter | 0.1-0.5mm |
| Power Consumption | 3KW15A |
| Power Supply | AC220V+5% Single Phase |
| Operation Interface | A 7-inch LCD Touch Screen Is Bilingual In Chinese And English |
| Locating System | Microscope With Coaxial CCD |
| Cooling Typed | Water Cooling, Water Injection Of 3.5L |
| Machine Dimensions | 790*430*590mm |
| Machine Net weight | 65KG |
| Work Environment | Temperature 5℃-35℃, Humidity 5%-85%. |
| Training | VCD training + 24 hours afters-sales service |
| Warranty | 24 month |

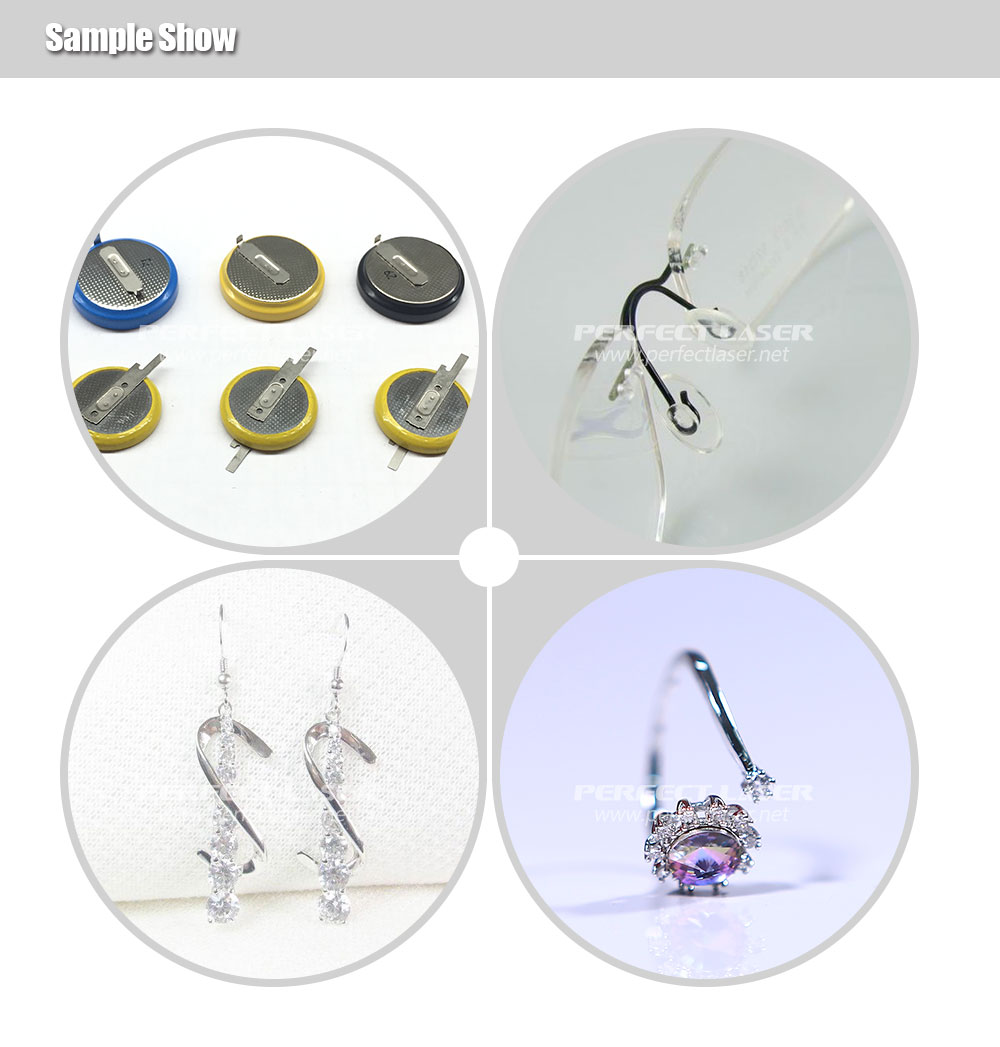

★ Machine QC and samples :
★ Packaging & Delivery:
1. Prompt deliver at the very day.
2. Well-trained and disciplined packing team.
3. After-sale service:. Any questions or problems after receiving the product, please feel free to contact us. Problems would be solved for you immediately.
4. Sophisticated and professional logistic agent.
★Competitive Advantages:
1. 100% custom pass guaranteed.
2. Our products have been exported to Germany, Norway, Poland, Finland, Spain, UK, France, Russia, USA, Brazil, Mexico, Australia, Japan, Korea, Thailand, Indonesia, Uruguay and many other countries.
3. Flexible and Untraceable payment terms.
4. Good after-sale service.
5. We offer high quality products at competitive price in quick delivery.
