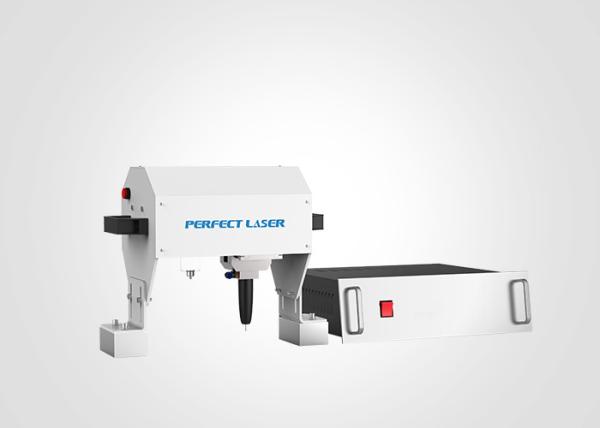

HRC92 Head Metal Stainless Steel Aluminum Iron Nameplate Coding Frame Number Dot Pin Marking Machine Manufacturers
(Model: PEQD-030)
★ Product Introduction:
The dot pin marking machine manufacturers is exquisite and compact in appearance, which is easy to carry and carry. It plays an irreplaceable role in marking inconvenient moving objects such as large mechanical equipment. Strong electromagnetic adsorption capability, which can firmly adsorb the marked work piece to stabilize the fuselage. High-quality alloy marking needle is durable and can keep the marking effect as new as ever. The dot pin marking machine manufacturers is powerful in editing, and can mark any logo as required. Complex Auto CAD, Core l Draw DXF format design logo and graphics can also be accurately printed.
★ Features:
1. Compact and beautiful appearance, no space, compact structure and convenient operation
2. Strong electromagnetic adsorption capacity, high accuracy
3. Adopt imported linear guide rail, marking process is smooth and fast
Powerful editing function, according to the needs of any mark.
4. American MAC high frequency valve is used for a long time.
★ Application:
1. Applicable materials: steel pipe, metal pipe VIN code connecting rod mechanical parts machine tool body series
2. Application: large workpiece or inconvenient to move workpiece marking, with assembly line operation, electronic components, etc
★ Technical Parameters:
| Machine Name | Portable Dot Pin Marking Machine Manufacturers |
| Model | PEQD-030 |
| Machine Type | Portable Marking |
| Marking Area | 135×20mm/90×20mm/125×20mm/150×100mm/200×100mm |
| Marking Accuracy | 0.01 mm |
| Marking Depth | 0.01~2mm |
| Marking Speed | ≤50mm/second(3-4 number/second for 3mm height letters) |
| Pin Hardness | HRC 92 |
| Power Supply | 220V±10％, 50HZ |
| Air Pressure | 0.2-0.6 Mpa |
| Machine Power | ≤400W |
| Working Environment | -5～40 ℃ |
| Making Head Weight | 5 Kg (Portable) |
| Whole Machine Weight | 25 Kgs |
★ Packaging & Delivery:
1. Prompt deliver at the very day.
2. Well-trained and disciplined packing team.
3. After-sale service:. Any questions or problems after receiving the product, please feel free to contact us. Problems would be solved for you immediately.
4. Sophisticated and professional logistic agent.
★ Competitive Advantages:
1. 100% custom pass guaranteed.
2. Our products have been exported to Germany, Norway, Poland, Finland, Spain, UK, France, Russia, USA, Brazil, Mexico, Australia, Japan, Korea, Thailand, Indonesia, Uruguay and many other countries.
3. Flexible and Untraceable payment terms.
4. Good after-sale service.
5. We offer high quality products at competitive price in quick delivery.
