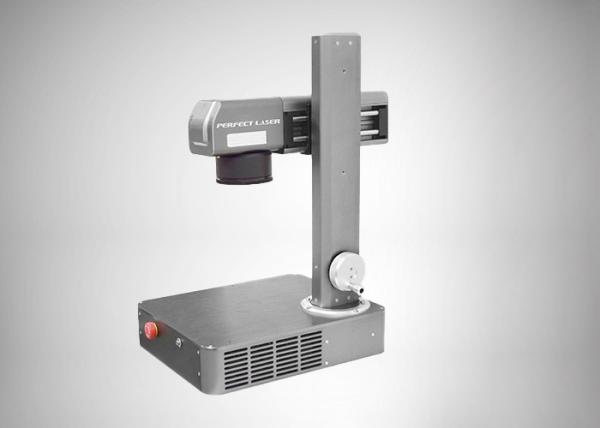

20W Desktop Mini Laser Marking Machine for Metal
★ Product Introduction:
This Mini Laser Marking Machine adopts a high-end operating system, imported fiber laser, 8mm ultra-high-speed galvanometer and 360-degree rotatable column, single power supply mode, simple operation, powerful function, fast marking speed and flexible conversion, compact and light body, It does not take up space and is convenient to move and transport.
★ Features:
1. Atmospheric appearance, compact and light body, easy to carry.
2.Simple structure, easy operation, low labor cost and long service life.
3.Low power, no consumables, energy saving and environmental protection.
4.The column can be rotated 360 degrees to achieve marking without dead ends.
5. The marking speed is fast and the effect is good.
★ Application:
1.this mini laser marking machine is widely suitable for most metal materials, PVC, etc.
2.the Mini Laser Marking Machine is widely applied in hardware products, tool accessories, precision instruments, glasses and watches, jewelry, auto parts, plastic buttons, electronic components, mobile communication, PVC pipe, sanitary ware and other industries.
★ Technical Parameters:
| Model | PEDB-100A Mini Laser Marking Machine |
| Laser Type | Fiber Laser (Brand:Max) |
| Laser Power | 20w |
| Laser Wavelength | 1064 nm |
| Beam Quality | M2<1.4 |
| Modulation Frequency | 30-60 khz |
| Carving Line Speed | 0-8000mm/s |
| Marking Speed | 600-1000 Character / min |
| Focus mode | Manual / Auto |
| Minimum Line Width | 0.02 mm |
| Minimum Character | 0.15 mm |
| Marking Size | 110mm×110mm (Standard) 70mm×70mm (Optional) |
| Repeatability | ±0.002 mm |
| Cooling Method | Air Cooling |
| Use environment | Clean or less dust |
| Working Temperature | 10-35 ℃ |
| Machine Power | ≤ 160 W |
| Voltage | AC220V±10%,50 HZ |
| Working Desk Size | 270mm×210mm |
| Lifting Range | 0-300mm |
| Column Rotation Angle | 360° |
| Light Bridge Displacement Stroke | 110mm |
| Operating Temperature | 0℃-60℃ |
| Storage Temperature | -40℃-85℃ |
| Humidity | 5% -95% relative humidity, no condensation |
| Model | PEDB-100A Mini Laser Marking Machine |
★ Packaging & Delivery:
1. Prompt deliver at the very day.
2. Well-trained and disciplined packing team.
3. After-sale service:. Any questions or problems after receiving the product, please feel free to contact us. Problems would be solved for you immediately.
4. Sophisticated and professional logistic agent.
★Competitive Advantages:
1. 100% custom pass guaranteed.
2. Our products have been exported to Germany, Norway, Poland, Finland, Spain, UK, France, Russia, USA, Brazil, Mexico, Australia, Japan, Korea, Thailand, Indonesia, Uruguay and many other countries.
3. Flexible and Untraceable payment terms.
4. Good after-sale service.
5. We offer high quality products at competitive price in quick delivery.
PEDB-100A-PDF.pdf
