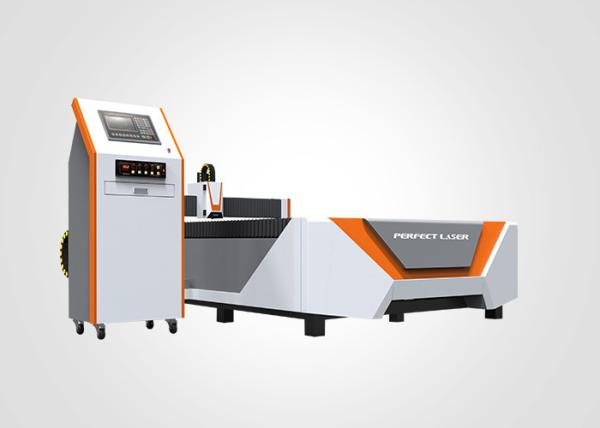

Chinese Low Cost Metal Flame Cnc Plasma Cutting Machine Price
(Model:PE-CUT-A3)
★ Product Introduction of Plasma Cutting Machine :
This high-speed plasma cutting and is good at cutting thicker metal materials. The large-scale machine tool worktable can withstand huge processed objects such as heavy steel plates and has strong stability. The advanced control system makes the whole cutting process smoother. Plasma cutter supports a variety of file formats and has a wide range of applications. During the work process, the height position can be automatically adjusted according to the surface of the object to ensure the perfect cutting effect.
★ Features of Plasma Cutting Machine :
1. Plasma cutting, fast cutting speed and large cutting thickness.
2.Large-scale machine tool type working table with wide cutting area and strong load-bearing capacity.
3.The machine supports multi-format files with a wide range of applications.
4.The advanced automatic height adjustment function can recognize the unevenness of the surface of the object and automatically adjust the height of the cutting head.
5. Intelligent software control system, which can intelligently edit the input pictures.
★ Application of Plasma Cutting Machine :
1. This machine is widely used in large, medium and small plates of special-shaped carbon steel, manganese steel, stainless steel, non-ferrous metals (stainless steel, aluminum, copper, titanium, nickel) and other metal materials.
2. This machine is widely used in shipbuilding industry, heavy machinery, petrochemical industry, power equipment, boiler manufacturing, machinery manufacturing, aerospace, vehicle manufacturing and other industries.
★ Technical Parameters of Plasma Cutting Machine :
| |
| Model | PE-CUT-A3 |
| Effective Cutting Width | Track Gauge-1500 |
| Effective Cutting Length | Gauge Length-3000 |
| Plasma Cutting Thickness | 1-25mm |
| Cutting Torch Lifting Stroke | 60mm |
| Machine Running Speed | 50-45000mm/min |
| Velocity Error | ≤±5% |
| Automatic Height Adjustment Accuracy | ≤±1.0mm |
| Weight | 550KG |
| Vertical Line Accuracy | ±0.2mm/10m |
| Linear Repetition Accuracy | ±0.4mm/10m |
| InstallationAccuracy of Rail | Rail Side Straightness:0.5mm/10000mm The parallel degree between the rail and the horizontal plane of the guide rail:±0.5mm/10000mm |
| Positioning Precision | 0.1mm | A)Equipment positioning accuracy and repeatability: conform to JB/T5102-1999 standard B)Cutting dimension accuracy, section quality: conform to JB/T10045.3-1999 standard |
| Straightness | 0.2mm |
| Roundness | 0.2mm |
| Diagonal Difference | 0.3mm |
| Repeated PositioningAccuracy | 0.5mm |
| Machine MarkingAccuracy | ≤0.5mm | |
| Cutting SurfaceQuality(Roughnes) (σ=25) | | RZ(um)=70+1.2a Visual Measurement: roughness12.5 |

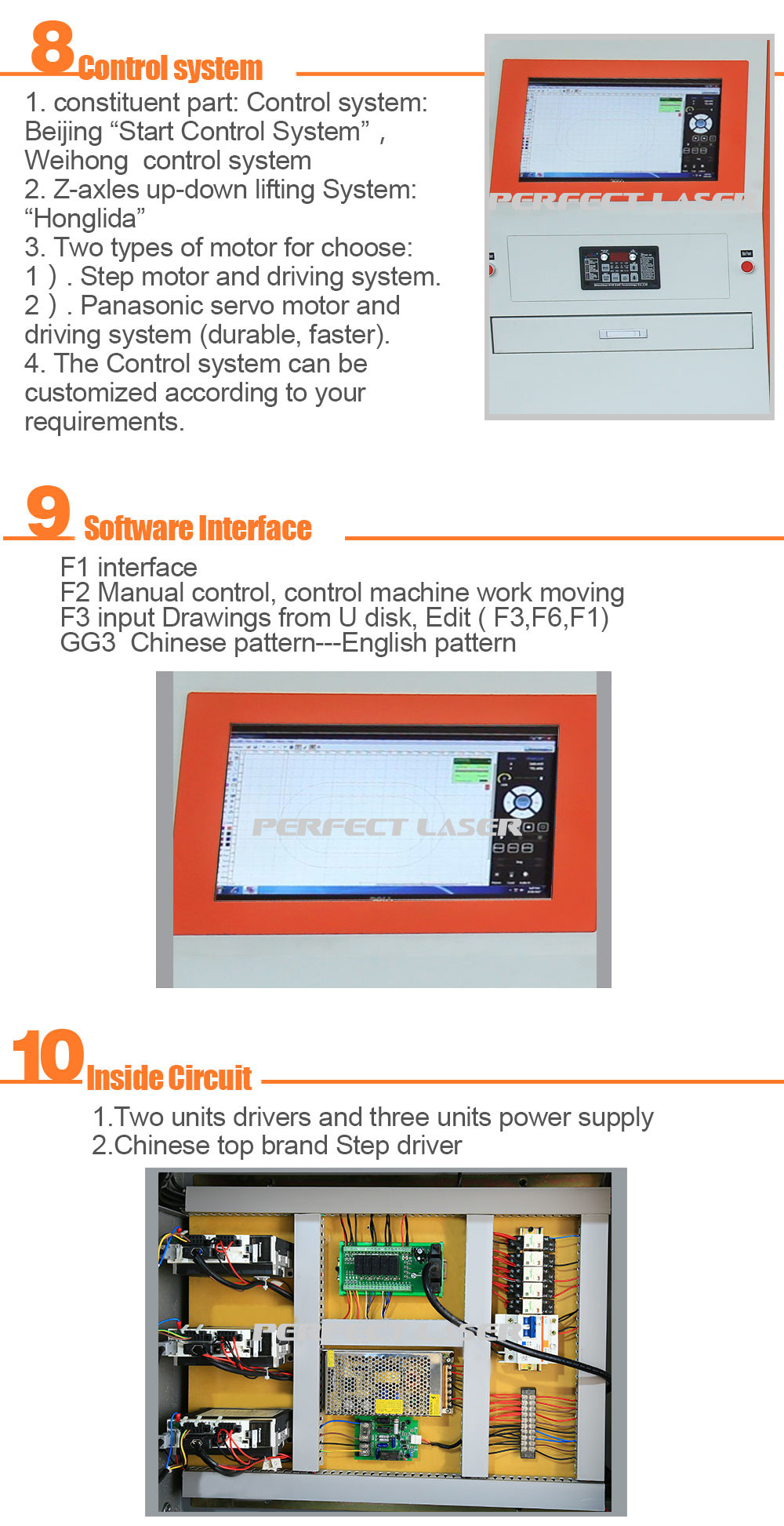

★ Machine parts of Plasma Cutting Machine ::
★ Packaging & Delivery:
1. Prompt deliver at the very day.
2. Well-trained and disciplined packing team.
3. After-sale service:. Any questions or problems after receiving the product, please feel free to contact us. Problems would be solved for you immediately.
4. Sophisticated and professional logistic agent.
★Competitive Advantages:
1. 100% custom pass guaranteed.
2. Our products have been exported to Germany, Norway, Poland, Finland, Spain, UK, France, Russia, USA, Brazil, Mexico, Australia, Japan, Korea, Thailand, Indonesia, Uruguay and many other countries.
3. Flexible and Untraceable payment terms.
4. Good after-sale service.
5. We offer high quality products at competitive price in quick delivery.
