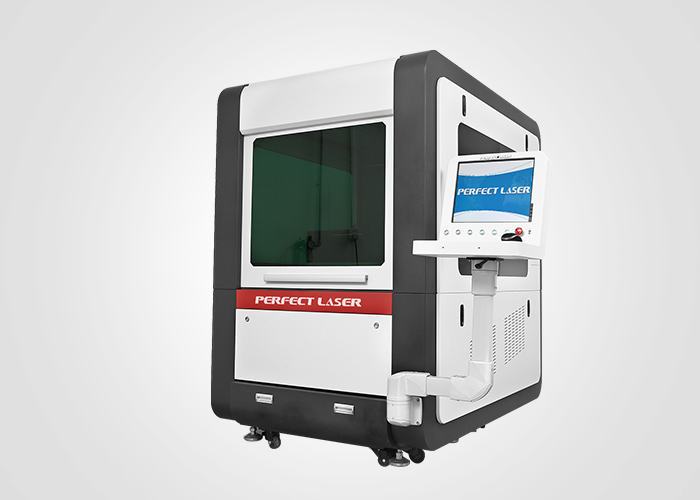

600*400mm Small Scale Laser Cutting Machine For Metal Sheet With Water Cooling
(Model:PE-F6040)
★ Product Introduction:
This laser cutting machine for metal sheet is small in size, which solves the problem of the traditional cutting machine occupying a large area and difficult to handle. The machine is equipped with a closed cover and an observation window to facilitate the observation of processing progress and reduce noise to protect the operator. The fiber laser cutting machine for metal sheet adopts imported laser, which has fast cutting speed and high precision, low power, low energy consumption and easy maintenance. High-end cooling technology makes the machine run more smoothly and has a longer service life.
★ Features:
1. Small size, less area, convenient to carry.
2. With a closed cover, with double protection function.
3. Imported laser, fast cutting speed and high precision.
4. Low power, low energy consumption and cost saving.
5. High-end water cooling technology, stable operation and long service life.
★ Application:
1. This machine is widely used in carbon steel cutting, carbon steel, stainless steel, silicon steel, aluminum alloy, titanium alloy, galvanized steel plate, pickling plate, aluminum zinc plate, copper and various metal materials.
2. This machine is widely used in sheet metal processing, aviation, aerospace, electronics, electrical appliances, automobiles, machinery, subway parts, precision parts, ships, metallurgical equipment, elevators, household appliances, craft gifts, tool processing, decoration, advertising, metal Processing, various manufacturing and processing industries.
★ Technical Parameters:
| Model | PE-F4040 | PE-F6040 | PE-F6060 |
| Laser type | Fiber laser |
| Laser power | 1000-3000W |
| Laser technique | Germany technology |
| XY axis processing format | 400*400mm | 600*400mm | 600*600mm |
| Laser source | Germany imported fiber laser source |
| Running speed | 10-35m/min |
| X/Y axis positioning accuracy | ±0.03mm |
| X/Y axis repeated positioning accuracy | ±0.02mm |
| Minimum cutting line width | 0.05mm |
| Laser wavelength | 1080nm±5 |
| Modulation frequency | 5000Hz |
| Fiber length | 15m |
| Cooling method | Double temperature and double control water cooler |
| Control system | Perfect Laser optical fiber cutting control software |
| Positioning | Red light |
| Overall power consumption | ≤15KW |
| Service voltage | 380V,50/60Hz |
| Maximum load of table | 100KG |
| Transmission mode | Double drive precision screw+linear guideway |
| Drive Mode | Servo motor |
| Compatible File | AUTOCAD/CORELDRAW/PLT/DXF/BMP/AI etc |
| Focusing Method | Automatic focus |
| Control Mode | Off-line motion control |
★ Machine parts:
★ Packaging & Delivery:
1. Prompt deliver at the very day.
2. Well-trained and disciplined packing team.
3. After-sale service:. Any questions or problems after receiving the product, please feel free to contact us. Problems would be solved for you immediately.
4. Sophisticated and professional logistic agent.
★Competitive Advantages:
1. 100% custom pass guaranteed.
2. Our products have been exported to Germany, Norway, Poland, Finland, Spain, UK, France, Russia, USA, Brazil, Mexico, Australia, Japan, Korea, Thailand, Indonesia, Uruguay and many other countries.
3. Flexible and Untraceable payment terms.
4. Good after-sale service.
5. We offer high quality products at competitive price in quick delivery.
