Maximum input power 16KW Suspension Arm Type Automatic Protection System Laser Welding machines for Mould Die Repair
(Model:PE-W600D)
Description Of Laser Welding Machines For Mold Repair
Perfect Laser specializes in the development, production, sales, training and after-sales service of laser welding machines for mold repair and has more than 20 years of experience in the welding industry. The new welding machine introduced this time is a type of laser welding machines for mold repair. The laser welder is designed with a cantilevered laser cavity that is different from the original welder to accommodate welding of high strength and high hardness materials. At the same time, the mold two-dimensional workbench is added to ensure the continuity and uniformity of the welded joint, which can achieve higher processing difficulty. with the introduction of German technology, the whole laser welding machines for mold repair is more suitable for the maintenance of large and medium-sized molds.
Features Of Laser Welding Machines For Mold Repair
1. The laser welding machines for mold repair adopts ceramic capacitor cavity imported from the UK, which has high reflectivity, corrosion resistance, high temperature resistance, service life of 8-10 years, and xenon lamp life of 800 million times.
2. This mold repair laser welding machine adopts the world's most advanced high-speed liquid crystal light valve filter automatic protection system, which eliminates eye irritation during work.
3. It has a high-power integrated chiller to ensure the long-term high-power stable working state of the whole laser welding machines for mold repair.
4. With a cross cursor stereo microscope, the welding position can be enlarged 10 times (optional 15 times, 20 times). The center of the crosshair overlaps the center of the laser spot for easy positioning.
5. Parameter adjustment adopts intelligent handle remote control, which is easy to operate; 12 direction can be adjusted by computer control. This type of laser welding machine is suitable for various mold repair welding.
Application Of Laser Welding Machines For Mold Repair
Applicable materials: This laser welding machine is suitable for welding large, medium and small molds. It is suitable for all kinds of die steel, stainless steel, steel, aluminum, precious metal and hard materials.
Applicable industries: This laser welding machines for mold repair is suitable for mold repairing and accessories, precision stamping parts welding, lost wax castings, aluminum castings, stainless steel sand holes.It is widely used in chassis, automotive, tires, ships, plastic housings for large household appliances, automotive parts, bearings, construction machinery and other mold manufacturing and molding industries.
Specifications Of Laser Welding Machines For Mold Repair
| Model | PE-W600D |
| Input voltage | Three-phase four wire system,380V±5% |
| Maximum input power | 16KW |
| All mirror | reflectivity≥99.7% |
| Power feedback type | current feedback |
| Condenser cavity | Gold single cavity design, double lamp single rod |
| Laser wavelength | 1.064μm |
| Beam divergence angle | ≤8mrad/m |
| Peak output power | 500W |
| Laser head adjustment | 360 degree |
| Pulse frequency | 1~150Hz |
| pulse width | 0.1~20ms |
| Current regulation | 50-500A |
| Beam expander | 3 times |
| Focal spot diameter | 0.2-2mm |
| Cantilever stretch length | 900mm |
| Cantilever up and down travel | 1000mm |
| Cantilever XY electric stroke | 150*150mm |
| Laser cavity length | 600mm |
| Table size | X*Y=500mm*350mm |
| Table travel | 200mm |
| Table XY hand travel | 250*120mm |
| Display mode | Coaxial microscope+CCDobservation |
| Positioning mode | Red |

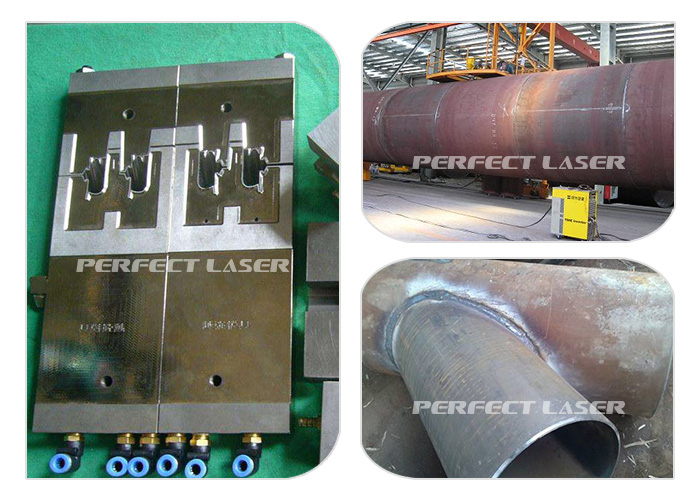

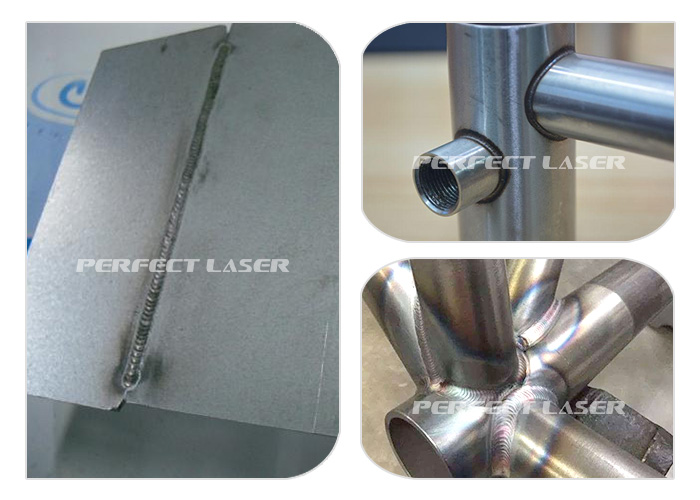

Sample Show Of Laser Welding Machines For Mold Repair
