High Speed Water Cooling Fabric Laser Cutting Machine For Autocar Seat Cover
(Model:PEDK-160100S)
Introduction of Fabric Laser Cutting Machine
The fabric laser cutting machine is main designed for cutting car seat covers and related interior decoration materials. The fabric laser cutting machine can do cutting process for various kinds of car interior decoration materials with max width less than 1600mm.The fabric laser cutting machine is equipped with caterpillar working table and auto feeding system, which can do continuous feeding and precision cutting,very convenient and efficient. Laser cutting is not required pattern cloth version, you can freely copy crop patterns, especially for revision requirements. In the process, a laser cutting, drilling and carving and other innovative technology integration which greatly improve the value-added products.
Features of Fabric Laser Cutting Machine
- The fabric laser cutting machine adopts Taiwan Hiwin precision linear square rails, to ensure the smooth operation of the laser head, high-speed, having slit small, fast, high accuracy.
- Special Front and hack running-through design, suitable for super-length material process, such as a roll of fabric. 30-50mm height,more convenient.
- Continuous cutting function when power off. Cutting device can automatically memory cutting status when power off, machine can continue cutting after power on.
- Observation window made of thicken visible acrylic material, high safety protection with cover.
- We have protection key for two side of doors to avoid other person to open the machine easy.
- The fabric laser cutting machine adopts CNC professional control system,easy to operate,equipped with mini air compressor and air pump,exhaust fan.
Application of of Fabric Laser Cutting Machine
1. Applicable Material:
The fabric laser cutting machine is widely used to cutting car interior seat cushion, seat cover, car seat covers, car MATS, car cushion, car flexible fabric supplies a variety of seating cushion material cutting, including non-woven, polypropylene, blending, leather, composite, PU artificial leather, wool fabrics, woollen, ice silk, linen, lycra, peach skin,, cloth, leather, PU, microfiber, EVA, XPE composite leather, leather, sponge, sponge + cover + composite leather leather, PVC floor MATS, silk MATS.
It can also cut flexible fabrics, such as: luggage, ski suits, safeguarding supplies, swimwear, sportswear, tents, sofas, curtains, textiles and clothing.
2. Applied Industry:
The fabric laser cutting machine is suitable for car upholstery, seat covers, various format carpets, carpet in front of the machine, the long blankets and other cutting, carving, parquet.
It's also called laser engraving plastic,laser carving machine,laser etching machine for sale.
★ Technical Parameters of Fabric Laser Cutting Machine
| Model | PEDK-160100S One head | PEDK-160100S(II) Double head | PEDK-160260S One head | PEDK-160260S(II) Double Head |
| Processing table size | 1600mm*1000mm | 1600mm*1000mm | 1600mm*2600mm | 1600mm*2600mm |
| Equip Rolling and Automatic Feeding System |
| Laser model | Sealed CO2 laser tube |
| Processing table | Caterpillar work platform |
| Laser power | 150w (optional 100w 130w) |
| Machine power | 3KW |
| Cutting Speed | 0-72000MM/Min |
| Interface port | USB ports |
| Cutting thickness | 0.3-20mm |
| Work humidity | 5-95% No Condensation |
| Controlling Mode | CNC Professional Control System |
| Cooling Mode | Water Cooling and Protect System |
| Working Voltage | AC220V±10% 50HZ |
| Assist Equipment | CW-5000 Water Chiller with temperature protection function, turbine dust exhaust, oil-water separator, silent air compressor |
| Power Controlling Mode | Laser Energy Combining Movement Control System |
| Control Software | Original Perfect Laser’s Engraving & Cutting Software |
| Support Graphics Formats | BMP, HPGL, JPEG, GIF, TIFF, PCX, TAG, CDR, DWG, DXF Compatible HPG Order To Support DXF, WMF, BMP, DXT |

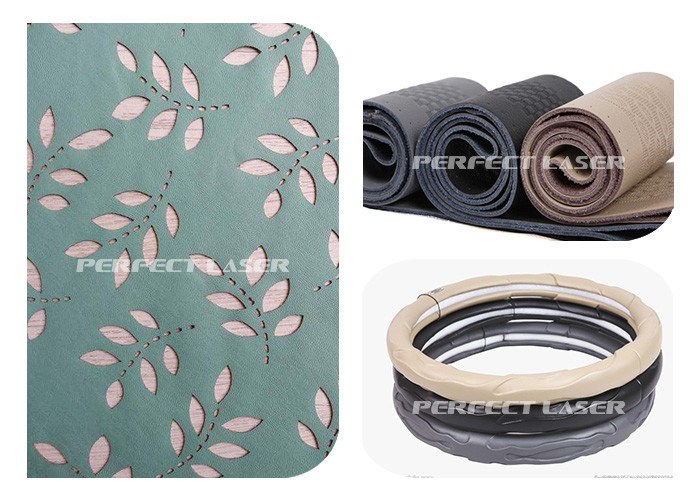

★ Samples of Fabric Laser Cutting Machine
Packaging & Delivery
1. Prompt deliver at the very day.
2. Sophisticated and professional logistic agent.
3. Well-trained and disciplined packing team.
4. After-sale service:. Any questions or problems after receiving the product, please feel free to contact us. Problems would be solved for you immediately.
Competitive Advantages
1. We offer high quality products at competitive price in quick delivery.
2. 100% custom pass guaranteed.
3. Good after-sale service.
4. Flexible and Untraceable payment terms.
5. Our products have been exported to Germany, Norway, Poland, Finland, Spain, UK, France, Russia, USA, Brazil, Mexico, Australia, Japan, Korea, Thailand, Indonesia, Uruguay and many other countries.
