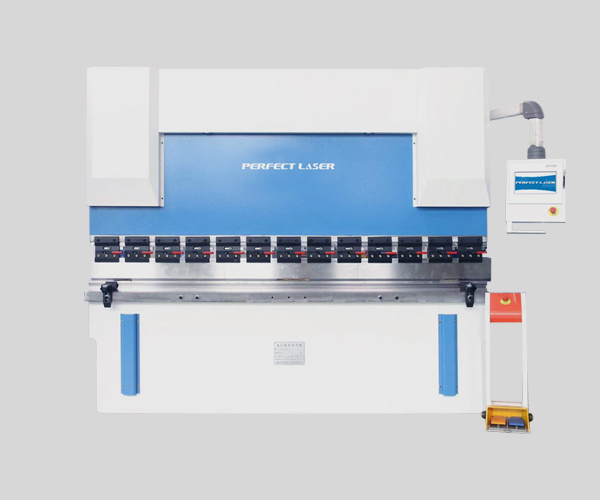

Double Servo High-efficiency Hydraulic Steel Sheet Metal Press Brake CNC Plate Bending Bender Machine
Model: PEL-1600
Machine Introduction
The hydraulic sheet metal bending machine adopts an advanced hydraulic transmission system, which transmits power through high-pressure oil to achieve fast and smooth movement. Hydraulic transmission has strong force, smooth and easy control, equipped with high-precision CNC system and sensors, which can accurately control bending angle, length and depth. The machine is made of high-quality materials and advanced technology, with a sturdy structure. Key components such as oil cylinders and hydraulic pumps are of high quality, ensuring stable operation of the equipment under long-term high-intensity work.
Main Features
1. hydraulic plate bender adopting a fully welded steel structure with sufficient strength and rigidity.
2. Hydraulic transmission, the oil cylinders at both ends of the machine tool are placed on the slider, directly driving the sliding work.
3. The slider synchronization mechanism adopts torsion axis synchronization.
4. This CNC bending machine adopting a mechanical block structure, stable and reliable.
5. Quick adjustment of slider travel, manual fine-tuning, and counter display.
6. A wedge type deflection compensation mechanism is used to ensure high bending accuracy.
Application:
It’s specialized for metal sheet bending processing and has become a modern industrial core equipment with high efficiency and flexibility. Its applications cover multiple fields such as manufacturing, construction, electrical, ventilation, kitchenware, aerospace, defense, and engineering machinery.
Technical Specification
| Product Name | Double Servo High-efficiency Hydraulic Sheet Metal CNC Plate Bending Machine |
| Model | PEL-1600 |
| The nominal force | 300KN |
| Working table length | 1600mm |
| Distance between columns | 1280mm |
| Throat mouth depth | 190mm |
| Ram travel | 80mm |
| Maximum opening height | 300mm |
| The slider is fast and down | 100mm/s |
| Slider return speed | 85mm/s |
| Slider working speed | 10mm/s |
| Power of main motor | 4KW |
| Numerical control system | TP10S |
| Number of control axes | (Cylinder shaft, rear rear axle) |
| Outline dimension | 1860×1700×2000mm |
