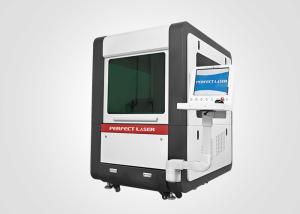

1000W 1500W Ball Screw Drive Automatic Focusing Aluminum Alloy Pickling Plate Sheet Metal Cutter
(Model:PE-F6060)
★ Product Introduction of fiber laser cutting machine :
The PE-F6060 sheet metal cutting machine developed by Perfect Laser is equipped with an imported fiber laser source from Germany, which has a cutting speed 2 to 3 times faster than traditional YAG or CO2 lasers. The machine also has an automatic focusing function, ensuring a positioning accuracy of within ± 0.05mm, thereby providing customers with more satisfactory cutting results. In addition, this metal sheet cutting machine is equipped with a protective cover, which further enhances the safety of cutting operations and has become a best-selling product in the market.
★ Product Features of fiber laser cutting machine :
1. The sheet metal cutter covers a small area, with a moving wheel at the bottom, easy to move.
2. The sheet metal cutter has low operating cost and low power consumption, saving 70-80% compared with the CO2 laser.
3. The sheet metal cutter adopts German imported laser technology and imported optical fiber laser source, good beam quality, high efficiency.
4. With a red light indicator light, it can better track the working path and have a more accurate cutting effect.
5. The sheet metal cutter has pre-operation function, which can simulate the cutting path, reduce the problems in the cutting process, = improve the cutting accuracy.
6. The mirror and lens are cooled by water cooling, and the mirror is heated during cutting to reduce the machine damage rate and prolong the service life.
7. A wide range of application, which can be applied to most metal materials.
8. The sheet metal cutter has an automatic oil injection system to improve efficiency and reduce labor time costs.
★ Application of fiber laser cutting machine :
Sheet metal cutter can be used in carbon steel, stainless steel, aluminum alloy, aluminum zinc plate, copper, titanium alloy, carbon steel cutting, galvanized steel plate, pickling plate and other metal materials.
Fiber optic laser cutting system is widely used in aviation, aerospace, electrical appliances, automobiles, electronic appliances, ships, metallurgical equipment, household appliances, craft gifts, advertising decoration and other industries.
★ Technical Parameters of fiber laser cutting machine:
| Model | PE-F4040 | PE-F6040 | PE-F6060 |
| Laser type | Fiber laser |
| Laser power | 1000-3000W |
| Laser technique | Germany technology |
| XY axis processing format | 400*400mm | 600*400mm | 600*600mm |
| Laser source | Germany imported fiber laser source |
| Running speed | 10-35m/min |
| X/Y axis positioning accuracy | ±0.03mm |
| X/Y axis repeated positioning accuracy | ±0.02mm |
| Minimum cutting line width | 0.05mm |
| Laser wavelength | 1080nm±5 |
| Modulation frequency | 5000Hz |
| Fiber length | 15m |
| Cooling method | Double temperature and double control water cooler |
| Control system | Perfect Laser optical fiber cutting control software |
| Positioning | Red light |
| Overall power consumption | ≤15KW |
| Service voltage | 380V,50/60Hz |
| Maximum load of table | 100KG |
| Transmission mode | Double drive precision screw+linear guideway |
| Drive Mode | Servo motor |
| Compatible File | AUTOCAD/CORELDRAW/PLT/DXF/BMP/AI etc |
| Focusing Method | Automatic focus |
| Control Mode | Off-line motion control |
★ Machine parts of fiber laser cutting machine:
★ Packaging & Delivery:
1. Prompt deliver at the very day.
2. Well-trained and disciplined packing team.
3. After-sale service:. Any questions or problems after receiving the product, please feel free to contact us. Problems would be solved for you immediately.
4. Sophisticated and professional logistic agent.
★Competitive Advantages:
1. 100% custom pass guaranteed.
2. Our products have been exported to Germany, Norway, Poland, Finland, Spain, UK, France, Russia, USA, Brazil, Mexico, Australia, Japan, Korea, Thailand, Indonesia, Uruguay and many other countries.
3. Flexible and Untraceable payment terms.
4. Good after-sale service.
5. We offer high quality products at competitive price in quick delivery.
