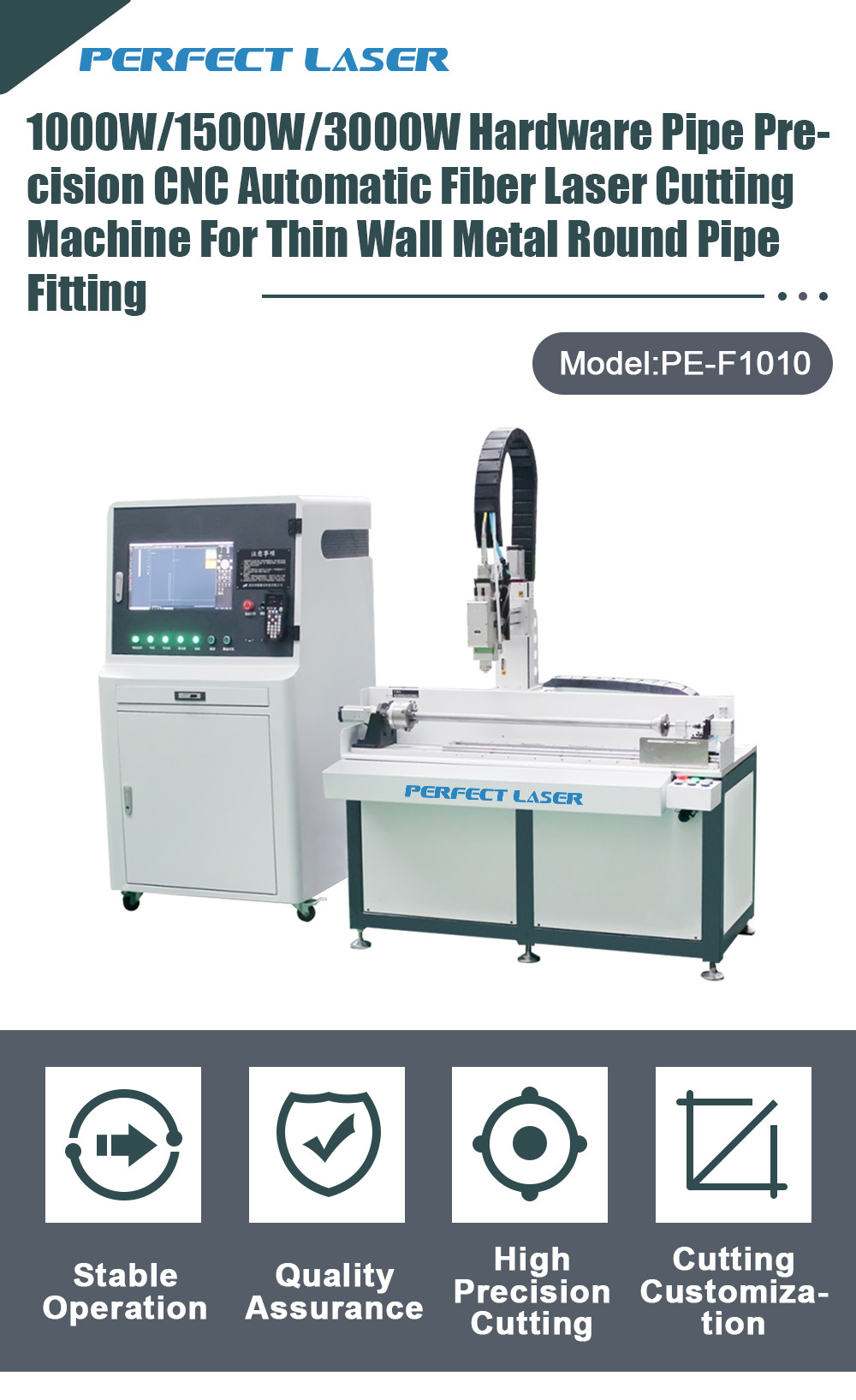

1000w 2000w 3000w Tube Pipe Fiber Laser Cutting Tube Machine
(Model: PE-F1010)
※Product introdution
This metal precision fiber laser cutting machine is customized for the precise processing needs of small metal pipe fittings and precision circular parts. It is an advanced laser cutting solution that integrates optical, mechanical, and electrical technologies.
Its design is compact and efficient, incorporating precision screw guidance system and motor drive mechanism. By equipping high-performance laser sources and cutting heads, combined with three-axis CNC laser cutting technology, and independently developed mechanical architecture and integrated control cabinets, the high stability of cutting operations is ensured.
By using top-level transmission components and a professional CNC cutting management system, not only does it effectively improve cutting accuracy and quality, but it also greatly accelerates work efficiency.
The fiber laser cutting machine for hardware fittings is skilled in cutting short pipes of rotating hardware parts, and can perform precise drilling and arc cutting operations on round pipes, square pipes, irregular pipes, U-shaped pipes, and bent pipes with a length of no more than 1.5 meters. It can also meet the opening requirements of bent pipes.
※Product Features
1. The CNC metal laser cutter machine is with beautiful appearance, compact and reasonable structure, and the placement and use are very convenient.
2. The CNC metal laser cutter processing flexibility is good, process any graphics, cut pipe and other profiles, not affected by the shape of the work piece at all.
3. Non-contact cutting, cutting quality is good, the heat affected area is small, completely avoid the material punching shear formed by the collapse of the edge, cutting generally do not need secondary processing or a small amount of grinding processing.
4. Not affected by the hardness of the cut material, can be cut without deformation, smooth cutting section without burr and no damage to the work piece, greatly improve the yield.
5. Hardware pipe CNC metal laser cutter the whole system optical path self-protection function is good, with multi-channel closed-loop protection system and powerful self-diagnosis function, the alarm can prompt quickly.
6. Processing without mold, save mold investment cost and time cost, greatly reduce the process flow and reduce the production cost, improve the speed of new product development and processing efficiency.

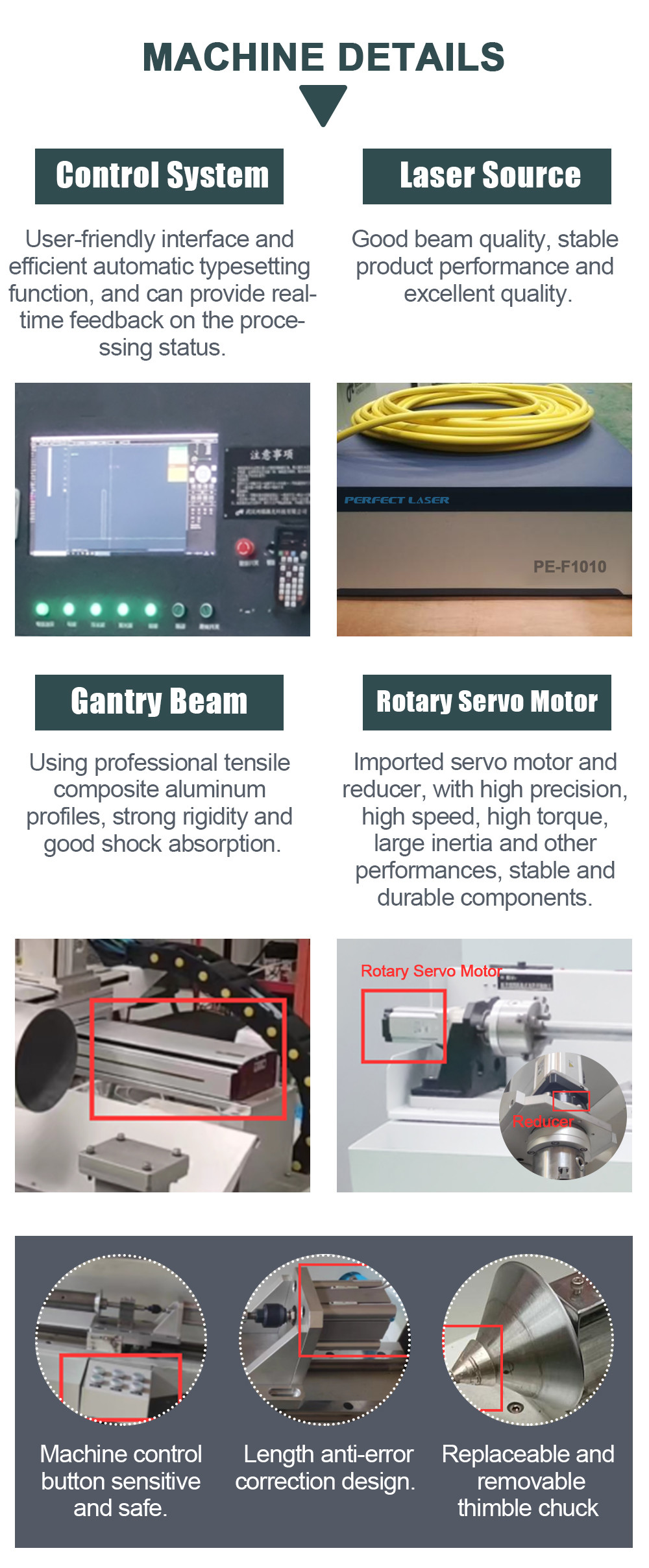

7. Independent operating table, good numerical control system, friendly design interface and efficient automatic typesetting function, and can be real-time feedback to the processing state, to ensure the orderly processing, simple and intuitive operation.
8. According to the application scenario, various non-standard models and specific fixture, loading bin and automatic feeding device can be customized to meet your needs.
※Application
1. Applicable Materials
The automatic laser cutting machine is suitable for fine cutting and hole cutting of various round work pieces such as kettle, thermos cup, furnace core, fine oil pipeline, sensor cover, exhaust pipe and so on.
2. Applicable industry
The automatic laser cutting machine is widely used in hardware lighting, kitchenware, automotive oil pipe, instrument panel pipe rack, power tools, exhaust pipe, stainless steel core, automotive hardware pipe, etc.
※Technical Data
| Product Name | Hardware Pipe Precision CNC Automatic Fiber Laser Cutting Machine |
| Laser Device | High performance fiber laser |
| Laser Power | 1000-3000W |
| Modulation Frequency | 0～5kHz (adjustable) |
| Optical Quality | ＜2.0mm*mrad |
| Maximum Cutting Capacity | Carbon steel 10mm; Stainless steel 6mm; Aluminum alloy: 5mm |
| Pipe Diameter | Within 400mm |
| Hole Roundness | 0-0.1mm |
| Working Voltage | Three-phase 380v±5%/50Hz |
| X-axis Stroke | 1000mm (movement of work piece diameter) |
| Y-axis Stroke | 100mm (work piece length direction movement) |
| Z-axis Stroke | 150mm |
| Maximum Velocity on the X and Y Axes | 30 m/min |
| X and Y Axis Positioning Accuracy | ≤0.03mm/m |
| X and Y Axis Repetition Accuracy | ≤0.02mm |
| Wall Thickness | Within 6mm |
| Positional Accuracy | Within 0.05mm |

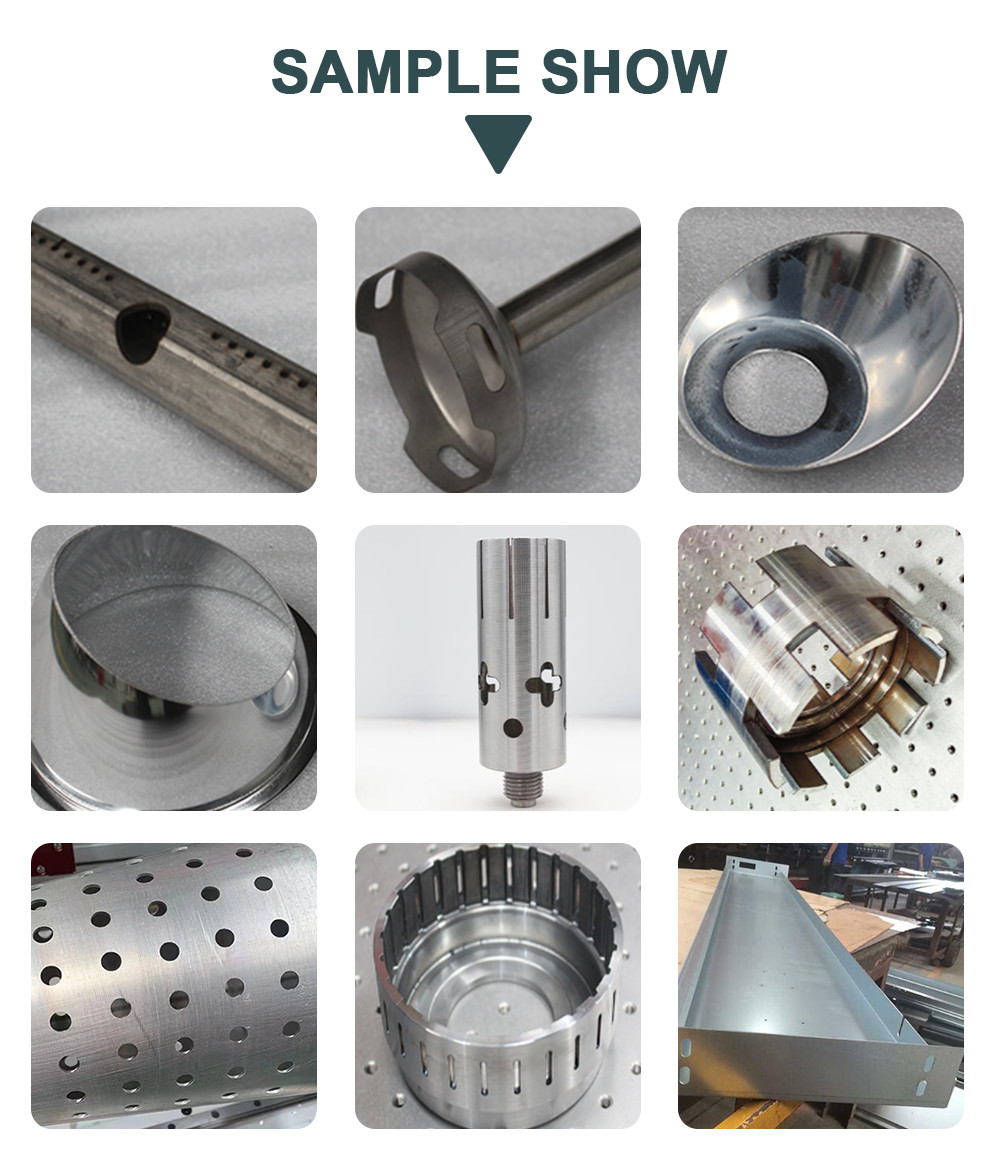

※Sample Show
※Packaging & Delivery
1. Prompt deliver at the very day.
2. Well-trained and disciplined packing team.
3. After-sale service:. Any questions or problems after receiving the product, please feel free to contact us. Problems would be solved for you immediately.
4. Sophisticated and professional logistic agent.
※Competitive Advantages
1. 100% custom pass guaranteed.
2. Our products have been exported to Germany, Norway, Poland, Finland, Spain, UK, France, Russia, USA, Brazil, Mexico, Australia, Japan, Korea, Thailand, Indonesia, Uruguay and many other countries.
3. Flexible and Untraceable payment terms.
4. Good after-sale service.
5. We offer high quality products at competitive price in quick delivery.
