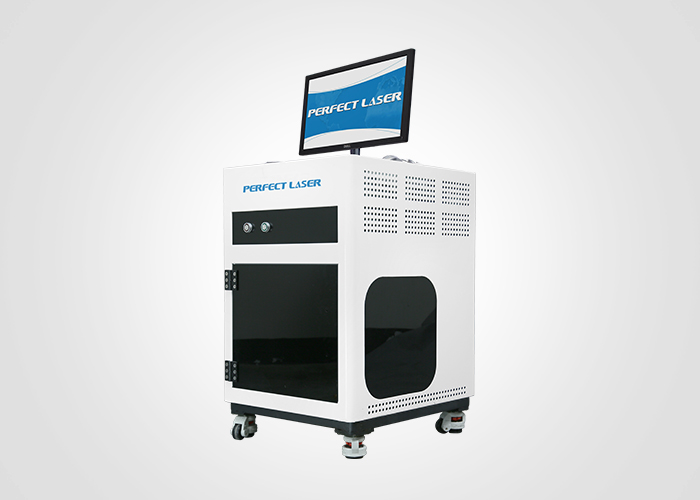

Extreme Precise Laser Engraving Systems For Acrylic / Crystal / Glass
(Model:PE-DP-C1)
★ Description of Crystal Cube Engraving Machine
Perfect Laser regards product quality and after-sales service as the lifeline of the enterprise. Excellent after-sales team, complete customer files, comprehensive quality supervision system, and various information channels ensure that Perfect Laser provides the best and most sincere service. Customized laser engraving is a great way to leave a lasting impression on customers. Laser engraving is very versatile and can be applied to almost any material. This type of machine is also known as a laser crystal engraving machine.
★ Product Features of Crystal Cube Engraving Machine
1.We constantly improve the image processing technology, producing realistic carving products and unprecedented carving effect
2.The equipment uses a specially designed high-power diode-pumped laser, 3D laser crystal carving machine with internal laser carving and material surface carving function. The engraving technology is in the world's leading level.
3. Laser pulse power constant technology and special laser mode greatly improve the quality of laser engraving.
4. Configure the automatic laser positioning system to make the 3D laser crystal engraving machine track the optical path. High precision motion control system is adopted to ensure the high quality carving of finished products
5. The equipment is modular equipment. 3D laser crystal engraving machine is easy to maintain. Laser collimation technology and closed control system can operate continuously for 24 hours.
★ Application of Crystal Cube Engraving Machine
The 3D image on the human body is photographed by adding a 3D camera, and the laser internal carving technique is used to make the beam point inside the crystal. The 3D laser crystal engraving machine can create multiple points to form a 3D human image,Used for engraving 2D or 3D on acrylic, crystal, glass and other transparent materials. 3D laser crystal engraving machine can engrave 2D or 3D hand or footprints, portrait, trophy and other personalized souvenirs.
★ Specifications of Crystal Cube Engraving Machine
| Model | PE-DP-A1 | PE-DP-A2 | PE-DP-C1 | PE-DP-C2 |
| LASER | YAG Diode Pump |
| AVERAGE LIFE LD | >20000 Hours | >12000 hours | >20000 Hours |
| MAX FREQUENCY | 5000HZ | 3000HZ | 5000HZ |
| MAX RANGESUPPORT SPLIT | 400mm x320mmx150mm | 400mm x300mmx120mm | 100mm x 100mm x100mm | 120mm x 120mm
x 100mm |
| FOCAL LENGTH | 120mm | 100mm | 120mm | 165mm |
| ACCURACY | 20μm~40μm | 20μm~40μm | 40μm~80μm |
| MAX SPEED | 5000 PIONTS / Second |
| REPEAT OFFSITE | 10~20μm | 10μm |
| POWER | <350W 220v/50Hz | <350W110v/60Hz | <400W 100V-120V /50Hz ;
200v - 240V /60Hz |
| WEIGHT | 85 kgs | 75 kgs |
| COOLING | Air cooling |
| ENVIRONMENT | Less dust and shock, Temperature 10-35°C, humidity < 85% |
| FILE FORMAT | BMP JPG DXF OBJ WRL 3DS STL |
| APPLICABLE MATE | All transparent material, Glass,Crystal, PMMA, etc. |
| PACKAGE SIZE | 1070mm x 970mm x 1450m | 1080mm x 780mm x 1310mm |
| MACHINE SIZE | 800mm x 900mm x 980mm | 550mm x 650mm x 850mm |

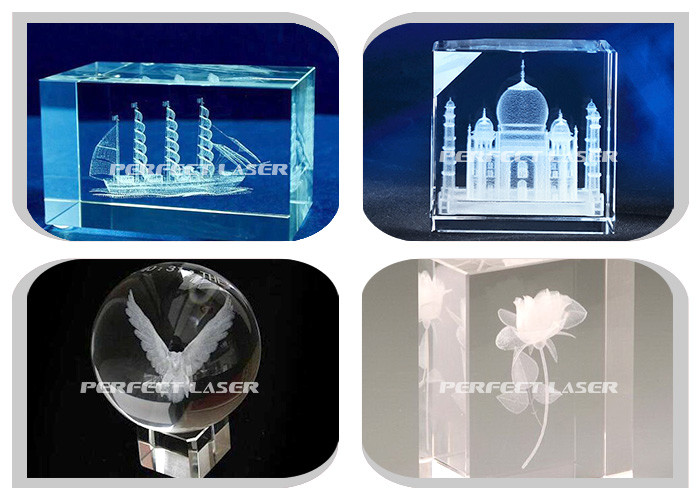

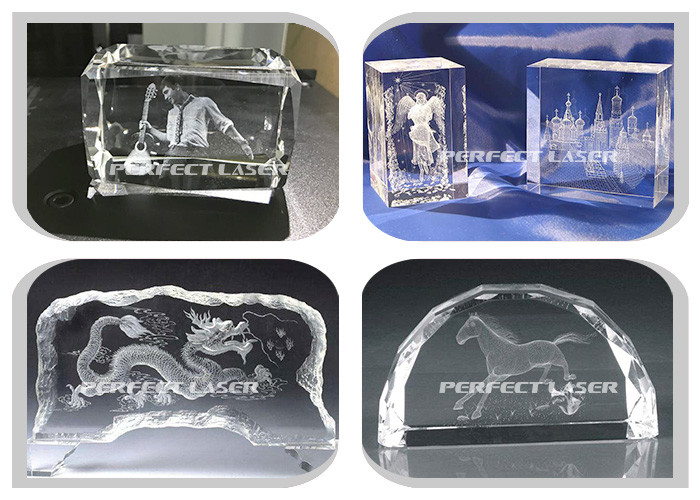

★ Sample Show of Crystal Cube Engraving Machine
★ Packaging & Delivery
1. Excellent professional logistics agent.
2. quick,Immediate delivery.
★ Competitive Advantages
1.Inside the crystal carving and material surface text speed is very high.
2.Uses the humanized system, through "one-button" control carving completes all the work function, reduces the manual operation error to cause the loss.
3.It is suitable for carving any crystal material and carving all kinds of materials.
