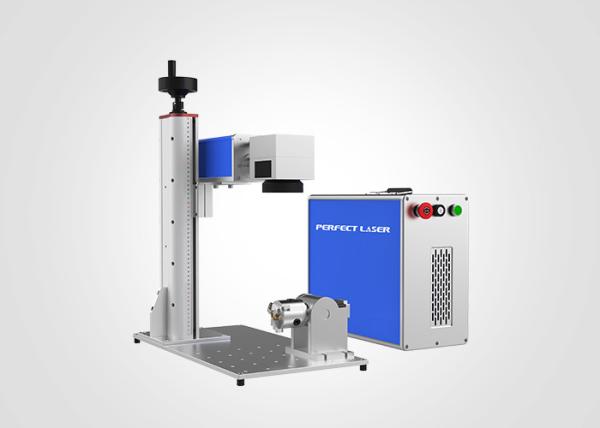

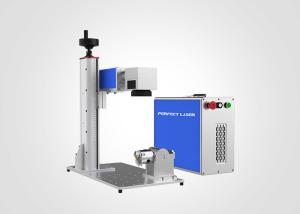

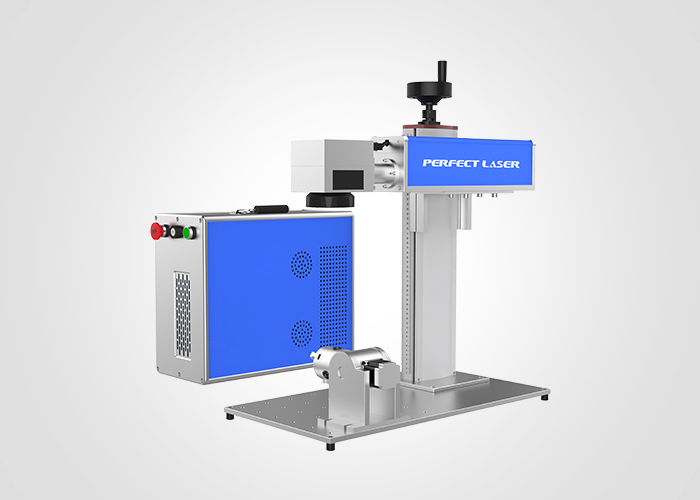

Fiber Laser 20w 30w 50W 100W Machine For Gold Stainless Steel Color Mopa Fiber Metal Laser Marking Machine With Rotary
(Model :PEDB-400B-1)
★Product Introduction of laser ring engraving machine
Laser engraving technology has earned the reputation of the "King of Laser Marking" because of its ability to accurately engrave various delicate patterns on small surfaces. This technology achieves no power coupling loss and effectively reduces operating costs. In addition, the service life of laser marking machine can reach 100,000 hours, during which maintenance and consumables are not required, further improving its economy and practicality. Metal laser engraving machine not only significantly increases the number and efficiency of markings, but also speeds up the user's return on investment cycle, achieving a double leap in efficiency and speed.
★Product Features of laser ring engraving machine
1. Low Cost In Use
No wearing part. Free of maintenance.
2. High Speed
Imported laser scanning system makes the marking speed up to 7000mm/s.
3. High Precision
High precision, re-position precision is 0.002mm
4. Energy Saving
The efficiency of optic-electrical converting is up to 70%.
5. High Reliability
MTBF(Mean Time Between Failures) >100,000 hours.
6: Integrated and Compact: Small size, only 0.5 M2, can be put on desk and easy to install.
★Application of laser ring engraving machine:
Electronic components, instrumentation, hardware tools, auto parts, daily necessities, jewelry, food and beverage packaging, precision instruments, gifts jewelry, medical equipment and other high-end products, high precision marking printing. Typical applications, such as plastic (PA66) insulation laser marking, metal plate automatic loading and unloading laser marking, packaging box online laser marking, metal mark.
★Technical Data of laser ring engraving machine:
| Model No | PEDB-400A | PEDB-400B | PEDB-400C | PEDB-400D |
| Type | Portable | Desktop | Colorful | Standby |
| Computer | Not includes PC | Includes PC |
| Laser Source |
| IPG Series | Pulsed, High Energy Ytterbium Fiber Lasers |
| Mode of operation | Pulsed |
| Polarization | random |
| Nominal average output power | 20W - 50W For PEDB-400A /400B /400C
20W - 100W For PEDB-400D |
| Central emission wavelength | 1064 nm ,Q-switched operation Output power adjustment range 10%-100% |
| Emission Bandwidth (FWHM) | <10 nm |
| Long-term average power instability | <5% |
| Pulse width(FWHM) | 100 ns |
| Laser switching ON time | 180 μsec |
| Laser switching OFF time | 180 μsec |
| Pulse Repetition Rate* kHz | 20-80 kHz |
| Energy per pulse (PRR = 20 kHz) | 0.95 mJ |
| Typical beam quality, M2 | <1.8 |
| Output fiber delivery length | 3m |
| Operating voltage | 220V |
| Max. Power consumption | 600W |
| Net Dimensions | 70*20*50cm | 80*38*72cm | 70*20*50cm | 143*62*101cm |
| Net Weight | 44 kgs | 53 kgs | 44 kgs | 130 kgs |
| Gross Weight | 60 kgs | 70 kgs | 60 kgs | 200 kgs |
| Laser system |
| Scanning Speed | 0-10000mm/s |
| Marking Speed | 0-7000mm/s |
| Marking size | 110mm×110mm (F-theta 160) |
| Spot size | ≤ 40 micron (F-theta 160) |
| Cooling unit | Air cooled |
| Red point laser | 650nm, visible red light for marking guide |
| Continuous working time | ≥16h |
| Humidity | 45～85% (no condensation) |
| Operating temperature | 0~40℃ |
| Control units | Laser Mark (English Version) |
